Load Capacity Citroën Relay: Payload, GVW, and Safe Loading
A data-driven guide to the Citroën Relay’s load capacity, payload ranges, GVW, and loading best practices for engineers, fleet managers, and technicians in 2026.

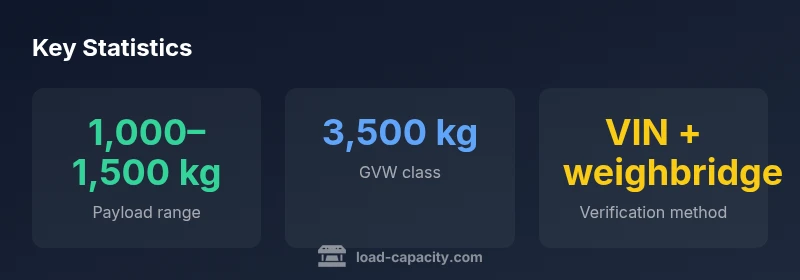

The load capacity citroen relay varies by wheelbase and roof option, but most variants offer a payload of roughly 1000–1500 kg within a 3500 kg GVW class. For fleet planning, this means about one tonne of usable cargo space, with heavier loads requiring careful distribution and axle-aware loading. Always verify the VIN plate and weighbridge data before loading.
Understanding load capacity citroen relay
Load capacity citroen relay is a critical parameter for engineers, fleet managers, and technicians who plan, transport, and comply with weight limits. The term combines the vehicle's gross vehicle weight (GVW), curb weight, and the usable payload that can be safely carried. For the Citroën Relay, load capacity depends on the wheelbase, roofline, and trim level, which influence both GVW and payload. According to Load Capacity, the baseline payload often falls in a broad range, with common configurations offering roughly 1,000–1,500 kg of usable load within a standard 3,500 kg GVW class. When planning daily routes, consider not only the total payload but how weight is distributed across axles and the cargo area. This article walks through the specifics, providing practical loading guidance and verification steps for 2026 models.
GVW, payload and cargo space explained
Understanding GVW and payload is essential for safe loading of the Citroën Relay. GVW represents the maximum combined weight the vehicle can legally carry, including passengers, cargo, fuel, and accessories. The usable payload is the portion of that limit allocated to cargo after accounting for vehicle weight and any equipment. For many Relay configurations, you’ll see a GVW around 3,500 kg, with payloads influenced by wheelbase and roof height. Cargo space expands with wheelbase: L1 variants are more compact, while L3 models offer larger volumes, which can shift payload capacity upward or downward depending on structural components. Engineers should correlate the exact VIN plate data with the desired cargo to avoid overloading and to maintain brake, suspension, and steering performance.
Variants and payload ranges across L1/L2/L3 wheelbases
Citroën Relay variants differ primarily by wheelbase and roof height. L1 variants tend to prioritize maneuverability and payload density, while L3 variants maximize cargo volume. Across these configurations, payload ranges typically begin around the low end of 1,000 kg and can approach 1,500 kg or more in higher-spec builds, all within a standard GVW of 3,500 kg. Key decision points include tunnel height, entry width, and the availability of heavy-duty floor panels. When selecting a variant, map your typical loads—boxes, pallets, and equipment—to the footprint of the selected wheelbase to ensure the payload remains within limits while preserving vehicle handling.
How to allocate loads: weight distribution and stability
Weight distribution matters as much as total payload. Aim for balanced loading across the front and rear axles to preserve steering and braking performance. Heavier items should be lower and as close to the center as possible to reduce roll and pitch. Secure cargo with rated tie-downs and distribute straps evenly. In some configurations, a bias toward the rear axle may be necessary for stability when using tall crates or stacked pallets, but never exceed axle load ratings. Regularly check loading patterns during a shift to guard against dynamic loads during acceleration, braking, and cornering.
Cargo volume and practical packing strategies
Maximizing usable cargo space requires efficient packing. Use standardized pallet sizes where possible and group items by weight class. Heavy items should sit on the floor and toward the vehicle’s center to minimize center-of-gravity shifts. When stacking, ensure load stability with non-slip mats and edge protection. For items with irregular shapes, consider modular crates that fit within the 8.0–15.0 m³ range typical of Relay variants. Periodically re-evaluate packing layouts as loads change by route or season.
Reading official specs and VIN plates for exact figures
Always cross-check official Citroën Relay spec sheets against the VIN plate found on the door jamb or in the vehicle documentation. The VIN plate provides the vehicle’s exact GVW and payload limits, which may differ from generic brochures. For fleets, maintain a shared digital archive of each vehicle’s GVW and payload, so drivers know their exact limits before loading. When in doubt, consult the dealership or manufacturer’s technical bulletin for the specific variant you own or lease.
Practical loading scenarios for service fleets
Scenario 1: A courier route with 6–8 pallets and light equipment; payload sits near the lower end of the range, with the center of gravity slightly forward to aid steering. Scenario 2: A tradesperson carrying heavy tools; distribute weight across the floor and toward the center; use a load barrier if necessary. Scenario 3: Overnight shipments require heavier totes placed on the floor and secured with multiple tie-downs; verify that total weight remains under GVW and per-axle limits. These examples illustrate how the same vehicle can be configured for different tasks while staying within safe load parameters.
Verification and compliance: VIN plates and weighbridges
Final confirmation of payload should include two checks: the VIN plate data and on-site weighbridge verification. VIN plates specify the maximum GVW and payload for the exact vehicle. Weighbridges provide an actual vehicle weight when loaded, ensuring you stay within legal and manufacturer limits. Record the measured weight and compare it against planned loads after every major configuration change, such as adding roof racks, equipment, or shelving. This practice reduces the risk of overloading and promotes safer operation.
Maintenance, safety, and regulatory context
Regular inspection of suspension components, braking systems, and tires is essential when operating a high payload van like the Citroën Relay. Maintain tire pressures according to load and speed requirements, and adjust routes to avoid structural strain on uneven surfaces. In many jurisdictions, exceeding GVW thresholds can lead to fines and insurance complications. Stay current with local regulations and internal fleet policy updates to ensure ongoing compliance and safe use of the Relay’s payload capacity.
Citroën Relay payload and cargo space by wheelbase/roof variant
| Variant | GVW (kg) | Payload (kg) | Cargo Volume (m³) |
|---|---|---|---|
| Relay L1H1 | 3500 | 1000–1200 | 8.0–9.5 |
| Relay L2H2 | 3500 | 1200–1400 | 10.5–13.0 |
| Relay L3H2 | 3500 | 1100–1500 | 12.0–15.0 |
Quick Answers
What is the typical payload range for the Citroën Relay?
Payload varies by wheelbase and roof; most variants enable roughly 1,000–1,500 kg payload within a 3,500 kg GVW class. Always check the specific VIN plate.
Payload varies by wheelbase and roof; check your VIN plate to confirm the exact figure.
How does GVW influence usable payload on the Relay?
GVW sets the maximum combined weight; usable payload is GVW minus the curb weight and any accessories. Variants differ, so verify the exact GVW for your vehicle.
GVW limits total weight; payload is what remains after base weight and extras.
Can I exceed the load capacity with organizers or tie-downs?
No. Accessories like organizers and tie-downs add weight, reducing usable payload. Plan loads to stay within the per-axle and total GVW limits.
Accessories add weight—don’t push payload beyond the GVW limits.
How do I verify payload in practice?
Use the VIN plate to confirm GVW and payload, then weigh the vehicle with a weighbridge after loading heavy items. Record the result for future reference.
Check the VIN plate and weigh the vehicle after loading.
What safety steps should I take when loading?
Secure all cargo with rated tie-downs, keep heavy items low and centered, and maintain balanced distribution across axles. Reassess loads after any route change.
Secure cargo, keep it low and centered, and balance weight across axles.
Are there differences between peak payload and everyday payload?
Yes. Peak payload may occur in higher-spec builds or under ideal conditions, but everyday routes often operate with a safety margin to preserve performance and legality.
There’s usually a safety margin between peak and everyday payload.
“Accurate load planning begins with the exact payload and GVW for your Citroën Relay variant. Always verify against the vehicle’s VIN plate and your weighbridge data.”
Top Takeaways
- Verify exact payload on the VIN plate before loading
- GVW defines the ceiling; payload is what remains for cargo
- Distribute weight evenly to preserve handling and braking
- Use weighbridge data for real-world verification
- Choose the wheelbase/roof variant that matches typical loads
