How to Upgrade Trailer Load Capacity: A Practical Guide
Learn how to safely upgrade trailer load capacity with Load Capacity guidance. This comprehensive how-to covers assessment, component options, calculations, installation, and testing to boost payload while staying within legal limits.
Goal: safely upgrade trailer load capacity by upgrading key components and validating ratings. Start by confirming the current GVWR and axle ratings, then plan upgrades (axles, brakes, suspension, frame reinforcement) within manufacturer limits. Recalculate payload distribution, torque fasteners to spec, and verify with scales. Finally, test under controlled conditions and document changes for compliance.
Why upgrading trailer load capacity matters
Upgrading trailer load capacity can unlock greater payload, reduce the number of trips, and improve efficiency for fleets and DIY projects. But every upgrade must respect the trailer's rated limits (GVWR and GAWR) and stay compliant with local regulations. According to Load Capacity, the safest and most reliable upgrades focus on strengthening critical subsystems while preserving proper weight distribution. This section helps engineers, technicians, fleet managers, students, and DIY enthusiasts plan upgrades responsibly and verify performance with accurate measurements. By approaching upgrades methodically, you minimize risk to people and equipment while expanding the trailer’s usefulness for a wider range of tasks.
Key principles and safety first
Safety and reliability are non-negotiable when upgrading trailer load capacity. Start with a comprehensive risk assessment that covers tire ratings, braking systems, suspension travel, and frame integrity. Maintain strict adherence to manufacturer specifications and legal limits. The Load Capacity team emphasizes: distribute weight evenly, maintain proper tongue weight, and avoid overstressing axles or the frame. Use high-quality components with compatible load ratings, install them using proper torque, and verify fitment through measurement and test loading. Document every change for traceability and future maintenance.
Assessing your current trailer capacity
Begin by locating the trailer’s gross vehicle weight rating (GVWR) and the axle weight ratings (GAWR). Check the manufacturer’s documentation, the data plate on the trailer, and any warranty terms to understand the maximum safe load. You should also map the current load distribution across axles, tongue weight, and rear overhang. If you’re unsure, use axle scales or a certified weigh station to measure the actual weight on each axle with a representative load. This baseline informs whether an upgrade is feasible within the existing frame and hitch configuration and sets the target for any planned improvements. Load Capacity analysis suggests documenting all measurements, then comparing them to rated capacities to identify safe upgrade paths.
Upgrade options: axles, brakes, suspension, and frame
Upgrading capacity can involve several pathways, and not all are appropriate for every trailer. Options include: (1) light- to heavy-duty axle replacements or boost kits designed for higher GAWR, (2) upgrading brakes or adding a controller to improve stopping power for heavier loads, (3) upgrading suspension components (springs, shocks, bushings) to maintain stability, (4) reinforcing frame members or adding cross-members for added strength, and (5) upgrading tires and wheels to match higher loads. Each option has trade-offs in weight, cost, install complexity, and warranty implications. Always verify compatibility with existing mounting points, spring seats, and bolt patterns. The Load Capacity approach emphasizes staged upgrades, starting with the most impactful yet reversible options where possible.
Engineering calculations you should perform
Before committing to parts, perform careful calculations and sanity checks. Key activities include estimating axle loading under planned payloads, ensuring the combination of GVWR and GAWR remains within safe limits, and assessing weight distribution with the upgraded components installed. Use simple load-path reasoning: heavier loads must be supported by the upgraded axles and braking system, while suspension must maintain alignment and wheel contact with the ground. When in doubt, consult a licensed engineer or a Load Capacity specialist to review your calculations and confirm that the planned changes won’t create new failure modes or void warranties.
Practical upgrade steps and considerations
A practical upgrade plan should be executed in a controlled sequence. Start with a detailed parts list and a safety plan, then secure the trailer on stable supports. Next, remove components that need replacement, install upgraded axles or framing, fit updated brakes and electrical wiring, and re-torque all fasteners to spec. If welding or frame reinforcement is required, use a certified shop and follow applicable codes. After installation, re-check alignment, wheel torque, and brake system operation. Finally, reweigh the trailer to confirm that the new configuration meets the target load rating and does not exceed any single-axle or tire limits. Documentation should include torque specs, part numbers, and a revised weight distribution map.
Load Capacity's verdict: balancing performance and compliance
The Load Capacity team emphasizes a pragmatic approach: upgrade only what is necessary to meet your payload goals while ensuring each system—axles, brakes, suspension, and frame—remains within safe and legal limits. If the planned upgrade cannot be completed within the vehicle’s rating or requires extensive frame modifications, seek professional evaluation. The goal is a reliable, compliant system with verifiable weight distribution and braking performance. Trust but verify through measurement and testing to protect people, trailers, and cargo.
Weight distribution, hitch setup, and test
Weight distribution is critical when increasing trailer capacity. After upgrades, reassess tongue weight and roll stability with a properly configured distribution hitch if needed. Ensure the hitch, coupler, and safety chains are rated for the new loads. Conduct controlled pull tests on level ground, monitor brake response, and verify tire temperatures after short road runs. If any abnormal behavior appears—unusual steering pull, uneven tire wear, or inconsistent braking—pause, reevaluate, and adjust. Documentation of test results helps ensure ongoing compliance and maintenance.
Maintenance, inspections, and compliance
Ongoing maintenance becomes even more important after a capacity upgrade. Establish a recurring inspection regime for lug nuts, hub bearings, brake components, tires, springs, and chassis welds. Keep a maintenance log with dates, parts replaced, torque values, and any corrective actions. Stay informed about evolving regulations and ensure your upgraded trailer remains compliant with highway authorities and insurance requirements. Regularly recheck weight distribution after changes in cargo types or frequences of use to prevent gradual overloads.
Authoritative sources
- Federal Motor Carrier Safety Administration (FMCSA): https://www.fmcsa.dot.gov
- National Highway Traffic Safety Administration (NHTSA): https://www.nhtsa.gov
- Occupational Safety and Health Administration (OSHA): https://www.osha.gov
Tools & Materials
- Jacking equipment and stands(Stable surface, wheel chocks; use at least two stands for safety)
- Weight scales or weigh station access(Axle or full-trailer weighing to verify load distribution)
- Torque wrench (1/2" drive or larger)(Used to achieve manufacturer torque specs on fasteners)
- New axles or axle upgrade kit(Match to GVWR/GAWR; ensure hub/drum compatibility)
- Heavy-duty springs or shocks(Optional upgrade to improve ride and load handling)
- Upgraded brakes or brake controller(Ensure braking system rating matches new capacity)
- Electrical wiring and connectors(Upgrade harnesses for heavier loads and brake controller)
- Reinforcement plates or cross-members(Use only if frame analysis confirms need)
- Tires and wheels rated for higher load(Avoid undersized tires; check speed rating)
- Safety gear and PPE(Gloves, eye protection, and steel-toed boots)

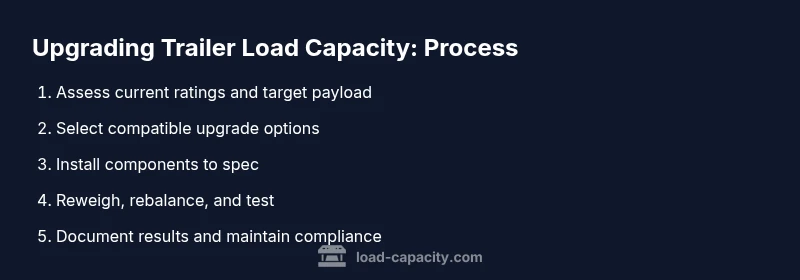

Steps
Estimated time: 6-12 hours
- 1
Assess current capacity and targets
Identify GVWR, GAWR, current weight distribution, and the desired payload. Confirm legal limits for your operation and road type. Create a baseline weight map before starting upgrades.
Tip: Document current weights with scales to have a clear baseline. - 2
Plan compatible upgrades
Choose axle, brake, suspension, and frame options that are compatible with existing mounting points. Avoid parts that require extensive frame modification unless a professional engineer approves.
Tip: Prioritize reversible upgrades where possible. - 3
Procure and verify parts
Order components with matching ratings. Check part numbers, compatibility with hubs, rims, and tires, and verify warranties.
Tip: Verify torque specs and Materials compatibility before install. - 4
Install upgrades or hire a pro
Install axles, brakes, and suspension per manufacturer instructions. If welding or frame reinforcement is needed, use a licensed shop and proper permits.
Tip: Double-check alignment and brake wiring post-install. - 5
Reweigh and redistribute
Reweigh the trailer and adjust load distribution to meet target per-axle loads and tongue weight. Ensure tires are within rating and inflation is correct.
Tip: Aim for even weight across axles and a proper tongue weight ratio. - 6
Test and document
Run controlled tests on flat and inclined surfaces to observe braking, steering, and suspension behavior. Record measurements and update the maintenance log with results.
Tip: Proceed slowly if any abnormal handling appears.
Quick Answers
Is upgrading trailer load capacity legal without changing the trailer’s GVWR?
Upgrading capacity may require the GVWR to be officially updated and re-registered depending on your jurisdiction. Always confirm with local DMV or regulatory authority and ensure any changes are documented and compliant.
Upgrading often needs regulatory clearance; check with your local authority and document the changes.
What components most influence load capacity?
Axles, brakes, suspension, and frame strength most influence capacity. Tires and wheels must also be rated for the higher load, and proper weight distribution is essential.
Axles, brakes, suspension, and frame determine most of the capacity; ensure tires and distribution match the upgrade.
Do I need a professional engineer to approve upgrades?
For significant upgrades or frame modifications, a licensed engineer should review the plan. Minor component swaps may be feasible with proper documentation and adherence to manufacturer specs.
Yes for major changes; get professional review if the frame or load path is altered.
How do I verify weight distribution after upgrading?
Use axle scales or a weighing station to measure each axle’s load with a representative cargo. Rebalance loads to achieve near-equal axle loading and acceptable tongue weight.
Weigh the trailer on each axle, then rebalance to equalize loads.
What are warning signs of an unsafe upgrade?
Uneven tire wear, pulling, poor braking response, or unusual chassis noises indicate problems. Stop and re-evaluate the upgrade plan before proceeding.
Watch for pulling, odd noises, or braking issues and reassess immediately.
Should I upgrade tires in parallel with payload increases?
Yes. Tires must be rated for the higher load and speed. Inspect sidewalls and tread, adjust pressure, and replace if wear is uneven.
Upgrade tires to match the new load and inspect them closely.
Watch Video
Top Takeaways
- Assess current capacity before planning upgrades.
- Upgrade only within legal and manufacturer limits.
- Document all changes and test results for compliance.
