How to Tell Weight Capacity of Trailer Axle
Learn how to determine trailer axle weight capacity safely and accurately. This guide covers rating plates, GVWR, GAWR, per-axle loads, and practical steps for engineers and fleet managers.
To tell the weight capacity of a trailer axle, start with the axle rating plate and the trailer’s GVWR, then cross-check against the manufacturer’s specifications. If available, verify the vehicle GAWR and hitch rating, and confirm that tires, wheels, and suspension are within limits. Always calculate usable payload before loading.
Understanding trailer axle weight capacity
If you’re wondering how to tell weight capacity of trailer axle, start with the core idea: the capacity is the maximum load the axle can safely carry, defined by the axle rating and the trailer's GVWR. According to Load Capacity, weight capacity is determined by system limits, not by rough estimates. The axle rating plate, usually affixed near the hub or on the axle beam, lists the exact pounds per axle or per pair. The trailer's GVWR (gross vehicle weight rating) sets the overall ceiling for the trailer and its contents, and GAWR (gross axle weight rating) provides per-axle limits that matter for distribution. When you check these values, you align loading plans with real hardware, tires, and suspension. Remember that exceeding any rating can compromise braking, steering, and tire life. In practice, you’ll compare the per-axle GAWR to the planned load split, then verify the tire load rating matches the demands. The goal is a safe, legal, and efficient haul that doesn't push components beyond their design envelope.
Where to find the axle rating sources
Axle and trailer weight ratings are published by manufacturers and are visible on several documents. The primary source is the rating plate attached to the axle or near the hub. This plate lists the maximum load per axle or per pair. The trailer's GVWR (gross vehicle weight rating) sets the overall limit for the combination of trailer and cargo, while GAWR (gross axle weight rating) specifies limits per axle. When towing, also verify the hitch rating and the tire load rating. If you can't find a plate, consult the trailer's owner’s manual or the manufacturer's technical sheet. For some trailers, the manufacturer’s data page or the OEM site provides a PDF with GVWR, GAWR, and suggested weight distribution. In complex setups (dual-axle or multi-axle trailers), ensure that the sum of per-axle ratings covers the expected payload. The Load Capacity team notes that up-to-date documentation reduces guesswork and improves safety.
How to verify weight capacity with measurements
The most reliable way to tell weight capacity is to measure actual loads using proper weighing methods. Start by weighing the empty trailer to establish base weight, then weigh with your planned cargo to determine the gross weight. If possible, use dedicated axle-scales or a weighbridge to capture per-axle loads. Record each measurement and compare against GAWR and the per-axle portion of the GVWR. If on-site scales aren't available, you can perform a two-point or three-point weigh to approximate per-axle distribution, but this should be followed by verification with a scale soon after loading. This process reduces the risk of overloading and helps with safe distribution planning. As you accumulate measurements, create a ready reference showing GVWR, GAWR, and actual axle loads for quick checks in future hauls.
Interpreting labels and standards
Ratings come in pounds (lb) or kilograms (kg); ensure you’re using the same unit across all sources. The key numbers are GVWR, GAWR per axle, and any hitch rating related to towing. Some manufacturers publish multiple rating sets for different configurations; always match the exact trailer model, axle count, and tire/wheel setup. If a rating is close to the load you plan, err on the side of caution and plan a lighter load or additional axle support. Load ratings assume standard tire sizes and inflation; deviations require recalculation. Remember, the per-axle load must never exceed GAWR, and the total must stay within GVWR. The Load Capacity approach emphasizes documenting sources and using the most conservative figures when in doubt.
Practical example: computing safe payload
Consider a two-axle trailer with GVWR = 10,000 lb and GAWR = 5,000 lb per axle. The empty trailer weight is 2,000 lb, leaving a maximum payload of 8,000 lb. If payload is distributed evenly, each axle would carry 4,000 lb of payload plus its share of the empty weight. With equal distribution, each axle would bear 1,000 lb (half of empty weight) plus 4,000 lb payload, totaling 5,000 lb per axle—right at the GAWR limit. If payload shifts and one axle bears more than 5,000 lb, it exceeds the per-axle limit and requires redistribution or a lighter payload. This example illustrates why accurate weight distribution matters and why measurements under real loading conditions matter for safety and compliance. Always validate with on-site scales when possible, and document the results for future reference.
Safety considerations and maintenance
Regular inspection of tires, bearings, and suspension is essential when working with trailer axles. Check tire load ratings to ensure they match the per-axle loads and maintain correct inflation pressures. Inspect hubs for wear, lubricants for moisture, and brakes for proper function. Environmental conditions, road surfaces, and load distribution can affect axle performance; plan for conservative loads in adverse conditions. Load shifts during braking or cornering can suddenly change axle loading, so maintain a buffer below GAWR and GVWR. Finally, train operators to recognize signs of overloading early, such as uneven tire wear, unusual vibrations, or visible axle sag.
Practical quick checks you can do on-site
- Verify rating plates against the trailer’s GVWR/GAWR before any load.
- Weigh the trailer with a representative load and compare per-axle results to GAWR.
- Ensure tire sizes and inflation pressures meet load demands.
- Keep a written log of ratings and actual loads for each trip.
Tools & Materials
- Torque wrench(For securing axle components and wheels to spec)
- Digital scale or weigh scale access(For axle weighing and payload estimation)
- Manufacturer spec sheets or owner's manual(To compare GVWR/GAWR and hitch data)
- Measuring tape(For axle spacing and weight distribution checks)
- Notepad or digital log(To document weights, dimensions and calculations)
- Safety gear (gloves, eye protection)(Before handling weights or tires)
Steps
Estimated time: 45 minutes
- 1
Identify rating sources
Locate the rating plate on the axle and collect GVWR and GAWR figures. If the plate is missing, pull the data from the manufacturer’s manual or tech sheet. Confirm hitch rating and tire load ratings to ensure all components align with the planned load.
Tip: Record exact plate values and compare to the vehicle’s towing setup. - 2
Weigh the empty trailer
Measure the empty (curb) weight of the trailer using a suitable scale. If you cannot weigh the empty trailer, use the manufacturer’s published curb weight as a baseline. This establishes the reference point for calculating payload.
Tip: Use the same scale and method for future weigh-ins to ensure comparability. - 3
Calculate usable payload
Compute payload = GVWR − empty weight. This is the maximum cargo the trailer can carry without exceeding GVWR. Remember per-axle limits also apply, so plan payload distribution accordingly.
Tip: Document the calculation steps for audit trails and fleet records. - 4
Assess per-axle distribution
Assume an even distribution to start and compute per-axle load = empty weight on that axle + (payload ÷ number of axles). Check that this total does not exceed GAWR per axle. If distribution is uneven, adjust loading and re-measure.
Tip: If possible, weigh each axle separately to verify distribution. - 5
Check tires and suspension
Compare per-axle loads to tire load ratings and inspect tires for wear, damage, and proper inflation. Ensure springs and bushings are rated for the expected loads and that braking capacity is adequate for the total weight.
Tip: Keep tires inflated to the higher end of the recommended range when carrying heavier loads. - 6
Document and plan for safe loading
Record all measurements, calculations, and source documents. Create a loading plan that maintains a safe margin below GVWR and GAWR. Use this plan for every trip and adjust if the load distribution changes.
Tip: Store the loading plan with the trailer for quick reference.
Quick Answers
Where can I find the axle rating?
Axle ratings are shown on the rating plate near the hub or on the axle beam, and in the trailer’s manual or manufacturer data page. Always verify with the exact trailer model configuration.
Axle ratings are on the rating plate by the hub or in the manual; verify the exact model data.
What if GVWR and GAWR conflict?
Follow the lower rating between GVWR and GAWR per axle. Do not load beyond that limit, and adjust weight distribution accordingly.
If GVWR and GAWR conflict, use the lower per-axle value and adjust load distribution.
Can I rely on trailer weight alone?
No. Weight alone doesn’t tell you per-axle distribution or tire capacity. You must consider GVWR, GAWR, and per-axle loads with proper measurements.
No—weight alone isn’t enough. You need distribution and per-axle measurements.
Do tires affect axle capacity?
Yes. Tire load rating must meet or exceed per-axle loads. Tires and rims are critical parts of the load path and can fail under overloading.
Yes—tires are a critical factor; ensure their load rating matches the axle loads.
Is there a quick test to estimate per-axle load?
Scale weighing or dyno-like pad methods can estimate per-axle load, but follow up with a formal scale check for accuracy.
You can use scales to estimate per-axle load, then confirm with a full scale measurement.
Who should perform the check?
A qualified technician, engineer, or fleet manager with access to scales and manufacturer data should perform and document the check.
A qualified technician or fleet manager should perform the check.
Watch Video

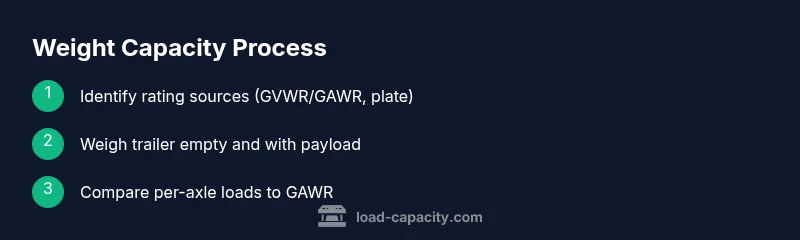

Top Takeaways
- Identify rating sources before loading
- Compute payload within GVWR and GAWR limits
- Verify per-axle loads with measurements
- Distribute weight safely and maintain tire limits
