Load Capacity Concrete Slab: Design and Verification

Understanding load capacity for concrete slabs

In structural practice, the term load capacity for a concrete slab refers to the maximum sustained weight the slab can safely support without excessive deflection, cracking, or failure. For slabs used in buildings, the capacity is not a single number; it depends on the combination of live loads (people, furniture, vehicles), dead loads (the weight of the slab itself, finishes, and attachments), and any imposed environmental loads. In the context of load capacity concrete slab, designers perform a holistic assessment that includes thickness, reinforcement layout, subgrade conditions, and boundary conditions such as supports and joints. The Load Capacity team emphasizes that a well-characterized capacity starts with understanding the intended use, whether it’s a residential slab-on-grade, a garage slab, or an elevated concrete floor in a warehouse. Early-stage planning should incorporate load scenarios, code-based factors of safety, and planned construction details. Subgrade support quality directly affects capacity; if the soil underneath yields or softens, the effective capacity drops, often requiring thicker slabs or stronger reinforcement.

Key factors determining slab capacity

Capacity depends on several interacting variables. The most influential are slab thickness, reinforcement type and placement, soil bearing capacity, concrete strength, and boundary conditions. Other important factors include the presence of utilities or voids beneath the slab, thermal and shrinkage effects, and drainage around the structure. When Load Capacity analyzes a project, we assess how each factor limits or enhances capacity. For example, a thicker slab with well-spaced reinforcement and a strong subgrade typically yields higher capacity than a thin slab on poor soil. Joint layout and crack control also play a role by providing predictable load paths and minimizing stress concentrations.

Calculating design loads and safety factors

Designing for safe load capacity requires combining loads according to established codes and applying appropriate safety margins. Start with service live loads defined by the intended use, add dead loads, then apply factors of safety to arrive at factored design loads. Use these to estimate bending moments, shear, and deflections for the slab. Subgrade capacity is considered through bearing pressure allowances; if soil strength is marginal, designers may increase thickness or reinforcement and revisit jointing strategy. The final check ensures there is an adequate margin between expected loads and the slab’s capacity, with contingency for dynamic effects and fatigue under repeated loading. Always document assumptions, material properties, and boundary conditions for traceability.

Slab types and typical capacity ranges

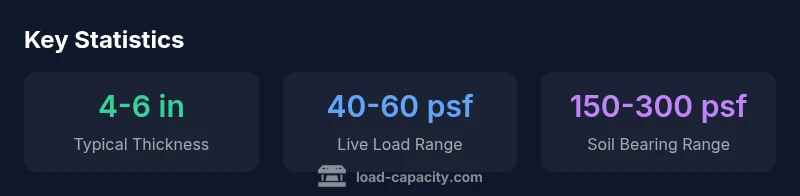

Concrete slabs come in various forms, each with distinct capacity considerations. Slab-on-grade residential floors commonly use 4-6 inch thickness with reinforcing to handle typical live loads. Garage slabs tend to be 5-6 inches to accommodate heavier vehicle loads. Elevated industrial slabs may require 6-12 inches and heavier reinforcement to resist dynamic and impact loads. Waffle or ribbed slabs offer higher bending stiffness for the same plan area. The load capacity concrete slab increases when the reinforcement ratio is optimized, jointing minimizes crack width, and the subgrade is well-prepared. Always tailor thickness and reinforcement to the specific use case and soil conditions.

Reinforcement, joints, and thickness decisions

Reinforcement placement and spacing determine the slab’s ability to resist bending and cracking under load. Typical practice uses bottom or top reinforcement with bars sized and spaced to balance cost and performance, plus distribution steel for evenly transferring loads. Control joints help manage cracking due to shrinkage and temperature changes, ensuring predictable crack patterns. Thickness decisions hinge on the expected loads, spanning capacity, and soil characteristics. In high-demand applications, engineers may employ thicker slabs, higher grade concrete, fibre-reinforcement, or additional mesh. The key is achieving a uniform stress distribution and clear load paths.

Construction practices that affect capacity

Construction quality directly affects as-built capacity. Proper subgrade compaction, moisture control, and drainage ensure the slab can perform as designed. Concrete placement practices—avoiding cold joints, ensuring adequate curing, and minimizing segregation—preserve strength. Finishing operations should not introduce damage that could become crack initiators. Post-pour curing and protection from excessive moisture or temperature swings help achieve the intended compressive strength and long-term durability. Subtle errors, like improper finishing or insufficient curing, can significantly reduce the slab’s load capacity over time.

Testing, verification, and inspection

Verification of concrete slab capacity combines design checks with field testing. Non-destructive evaluation, core sampling for compressive strength, and plate load tests can corroborate the slab’s actual performance against the design. Slab flatness and levelness checks, crack monitoring, and moisture testing inform ongoing performance. For critical applications, a structural engineer may perform a detailed analysis using measured material properties and observed field conditions. Documentation should include test results, material certificates, and any compensating design measures taken to meet safety requirements.

Maintenance and long-term performance

Even well-designed slabs can degrade if maintenance is neglected. Regular inspection of cracks, settlement, drainage, and joint performance helps catch problems early. Address expanding cracks, inadequate drainage, or water infiltration promptly to prevent deterioration. Seasonal temperature changes and moisture fluctuations can affect expansion, leading to additional stresses if joints are not properly maintained. A maintenance plan that includes periodic testing and remediation reduces risk and extends service life.

Practical design checklist for engineers and contractors

• Define all load scenarios early (live, dead, and environmental) and select design codes accordingly.
• Assess soil bearing capacity with appropriate tests; upgrade thickness or reinforcement if necessary.
• Plan reinforcement layout and jointing to control crack width and improve load transfer.
• Specify concrete strength and curing procedures to achieve expected performance.
• Include drainage and moisture management in site preparation and slab design.
• Schedule inspections, testing, and documentation for traceability and compliance.
