How to Check Bearing Capacity of Soil on Site
Learn field-tested methods to assess soil bearing capacity on site, interpret results, and document findings for safe foundation design.
In this guide you will learn how to check bearing capacity of soil on site using practical field tests, how to choose the right method, and how to interpret results for safe foundation design. You will need basic field equipment, safety gear, and access to soil test data sheets.
Why bearing capacity matters on site
Understanding how to check bearing capacity of soil on site is essential for safe foundation design and structural integrity. When a foundation is built without confirming soil capacity, settlements can exceed tolerances and cause cracking or failure. This article, aligned with Load Capacity practices, outlines why on-site assessment is the backbone of reliable engineering decisions and how soil conditions at the project site drive every design choice.
Key terms and how to read bearing capacity data
Bearing capacity describes the soil's ability to support loads without excessive settlement. Engineers distinguish between safe bearing capacity, ultimate bearing capacity, and allowable bearing capacity. On-site tests provide data that feed into these concepts and help set design criteria. In practice, you translate field measurements into conservative estimates that guide foundation type, depth, and reinforcement strategies. Load Capacity's approach emphasizes clarity, consistency, and traceability in data recording.
Field testing options: SPT, CPT, and plate load basics
Field tests come in several flavors, each suited to different soils and project scales. The Standard Penetration Test (SPT) uses a hammer-driven sampler to approximate soil resistance and infer strength. Cone Penetration Test (CPT) offers continuous resistance data with minimal disturbance. Plate load tests directly measure settlement under increasing loads on a calibrated plate. Choosing among these methods depends on soil type, access, required detail, and project risk—do not overtest or under-test.
Planning pre-test considerations: site prep, safety, and documentation
Before testing, establish a safety plan, identify underground utilities, and secure permits if required. Prepare a data-collection plan, including sensor placement, sampling intervals, and record-keeping standards. Ensure all operators are trained in field procedures and GPS or surveying tools for location accuracy. Accurate documentation reduces ambiguity in interpretation and helps future audits.
Interpreting field data: turning measurements into bearing capacity estimates
Data from SPT, CPT, or plate tests feed into empirical correlations or analytical formulas to estimate soil bearing capacity. The key is to consider soil type, moisture content, density, and depth. Avoid over-reliance on a single test point; use multiple measurements and account for variability. In the Load Capacity approach, cross-check results with soil stratigraphy and project loading to avoid unfounded conclusions.
Common challenges and how to mitigate them
Water table fluctuations, rapid moisture changes, and layered soils can distort readings. Calibrate instruments, repeat tests where feasible, and report uncertainties clearly. If soils are mixed or fissured, diversify the testing methods to capture a representative picture. Always document measurement conditions—pore pressure, depth, and test energy settings.
Practical example: a hypothetical on-site assessment workflow
In a typical project, you would schedule boreholes or test pits, perform SPT or CPT, and record readings at specified depths. You then compile the data into a bearing capacity estimate, compare it against the required foundation bearing capacity, and determine foundation type and depth. This example walks through decision points and demonstrates how to justify each choice with field data.
Reporting results and next steps: turning field data into designs
Document all tests, methods, and data in a transparent report. Include soil stratigraphy, test locations, test energy, and interpretation notes. Present recommended foundation type with rationale and any contingencies for unexpected site variations. The final report should be accessible to engineers, contractors, and client stakeholders.
The Load Capacity perspective: practical takeaways for practitioners
From Load Capacity's vantage point, the most important practice is rigorous field testing, consistent data sheets, and clear interpretation guidelines. Use standardized procedures, keep records, and align findings with project risk and regulatory expectations. This approach reduces surprises during construction and improves long-term performance.
Tools & Materials
- Safety gear(hard hat, steel-toed boots, gloves)
- Soil sampling tools(auger, split-spoon sampler, or cone penetrometer depending on method)
- SPT hammer and driving tools(only if performing SPT tests; have calibrated hammer)
- CPT equipment (if available)(piezocone or static cone with data logger)
- Plate loading apparatus(a calibrated bearing plate with load frames)
- Measurement tools(survey-grade tape, ruler, inclinometers, GNSS if available)
- Water and moisture measurement tools(bulk sample buckets, moisture-density probe)
- Data recording supplies(field books, pens, tablets, data sheets)
- Calibration and reference standards(calibrated load cells, reference weights)
- Safety plan and utilities map(locate underground utilities and permission documents)
- GPS or survey tools(location accuracy for test points)

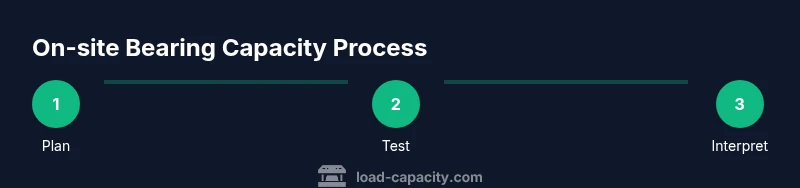

Steps
Estimated time: Estimated total time: 4-6 hours
- 1
Prepare the site and safety plan
Identify the test locations, alert nearby workers, and review utility maps. Confirm safety gear and emergency procedures before any probe or load application.
Tip: Walk the site with a safety checklist and mark exclusion zones. - 2
Select the testing method
Choose SPT, CPT, or plate load based on soil type, access, and project risk. Document the rationale before starting.
Tip: If in doubt, plan for CPT where possible due to less disturbance. - 3
Calibrate equipment
Verify load cells, hammers, or CPT sensors are zeroed and within calibration. Record calibration data in the field notebook.
Tip: Calibration reduces error and improves repeatability. - 4
Collect soil samples or measurements
Perform the chosen test at multiple depths and locations to capture variability. Maintain clean samples for moisture tests.
Tip: Spacing of test points should reflect expected load paths. - 5
Record environmental conditions
Note moisture, temperature, groundwater status, and any recent rainfall. These factors influence readings.
Tip: Take photos of the test setup for reference. - 6
Process raw data in the field
Compute rough bearing capacity estimates using the test data and initial correlations. Keep raw data unaltered for validation.
Tip: Cross-check with multiple tests where possible. - 7
Cross-check with soil stratigraphy
Compare results with borehole logs or soil profiles to ensure consistency with known layers.
Tip: Discrepancies warrant additional tests. - 8
Draft preliminary conclusions
Summarize findings, uncertainties, and recommended foundation approach.
Tip: Be explicit about assumptions and limitations. - 9
Prepare the field report
Organize data, create figures, and export the report to the project file repository.
Tip: Include an executive summary for stakeholders.
Quick Answers
What is the bearing capacity of soil and why does it matter?
Bearing capacity is the soil's ability to support loads from a structure without excessive settlement. It matters because inadequate capacity can lead to settling, cracking, or failure of foundations.
Bearing capacity tells you how much weight soil can safely carry; it helps prevent foundation failure.
Which field test should I start with?
Start with CPT if available for continuous data with minimal disturbance; SPT is common where CPT is not accessible. Plate stability tests may be needed for large loads.
Start with CPT if you have access; otherwise SPT or plate tests can work.
How many tests are enough for a reliable estimate?
Reliability depends on soil variability and project size. Typically multiple tests at representative locations and depths are advised to capture heterogeneity.
Multiple tests at representative locations help capture soil variability.
Can on-site tests replace lab soil tests?
On-site tests provide quick, in-situ estimates, but lab tests on undisturbed samples can improve accuracy; use them for calibration.
On-site tests give quick estimates; labs can improve accuracy when available.
How do groundwater and moisture impact results?
Moisture and groundwater reduce soil strength and alter readings; consider corrections or alternative tests in saturated conditions.
Moisture lowers capacity and changes readings; adjust interpretation accordingly.
What reporting should be included in the final document?
Include test locations, methods, energy, depths, results, uncertainties, stratigraphy, and recommended foundations.
Include locations, methods, data, uncertainties, and foundation recommendations.
Watch Video
Top Takeaways
- Plan safety and data quality first.
- Use multiple tests to capture soil variability.
- Document conditions and assumptions clearly.
- Choose testing method based on site conditions.
- Translate field data into conservative bearing capacity estimates.
