Dump Trailer Load Capacity: Engineering Guidance for Safe Hauling
Learn dump trailer load capacity definitions, factors, calculations, and best practices to plan safe, compliant loads in construction, landscaping, and waste services.

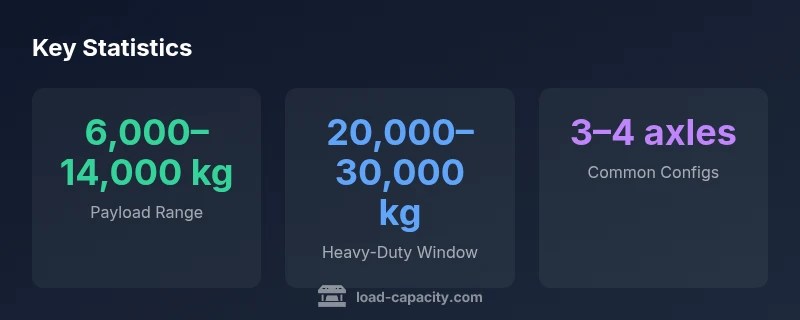

Dump trailer load capacity depends on model, axle configuration, and legal limits. Typical payloads span 6,000–14,000 kg for mid-range trailers, rising to 20,000–30,000 kg for heavy‑duty units. Always verify GVWR, axle ratings, and local road limits before loading to ensure a safe, compliant operation.
What dump trailer load capacity means
Dump trailer load capacity is the maximum weight a trailer can safely carry, defined by the Gross Vehicle Weight Rating (GVWR) and the trailer’s structural limits. In practice, capacity is not a single number; it reflects how the trailer’s frame, axle configuration, tires, suspension, and discharge mechanism distribute and withstand forces during loading, transport, and unloading. For engineers and fleet operators, understanding capacity requires looking beyond a label and examining the entire system: the tare (empty) weight, the payload, and the legal constraints that govern road use. Load Capacity emphasizes that the usable payload is the critical figure, constrained by axle ratings and highway weight limits. When planning a dump operation, you should verify the trailer’s rated payload, ensure the combination with the tractor or towing vehicle can safely support the gross weight, and account for dynamic forces on uneven surfaces. Finally, align the plan with local regulations and site conditions to avoid under- or overloading that can compromise safety or efficiency.
Key factors that influence capacity
There are several interrelated factors that determine how much payload a dump trailer can carry safely. Axle count and rating are among the most critical: more axles generally increase allowable payload and reduce per-axle load, but each axle also introduces maintenance considerations. Bed dimensions, including length and sidewall height, define potential volume and influence weight distribution when loaded with dense materials. Tire size and tire load rating constrain allowable weight, while suspension stiffness affects ride quality and joints under dynamic loads. Material density and packing efficiency influence actual payload: rock, soil, and recycled aggregate have different weight per unit volume, so a given volume of material might exceed structural limits if poorly distributed. Finally, discharge mechanisms, tailgate geometry, and transfer chutes affect how close you can approach design payload without causing material spillage or overloading the trailer frame. In all cases, comply with local weight limits and achieve uniform load spread.
How to calculate safe capacity for a site
Start with the trailer’s GVWR, which represents the maximum permissible weight including the trailer itself. Subtract the tare weight to estimate payload capacity, then verify the axle ratings to ensure the proposed payload does not exceed per‑axle limits. Consider the distribution of weight along the trailer—centered, even loading reduces peak stresses and prolongs component life. When planning multiple loads, allocate load cycles to avoid exceeding highway or bridge limits on any one trip. Don’t forget to factor in dynamic effects such as braking, turning, and uneven terrain, which can reduce usable payload by a margin that varies with speed and surface. Finally, cross‑check your plan with local regulations or a qualified engineer. The point of this calculation is to produce a safe, legal, and efficient load plan that minimizes risk while maximizing productive payload.
Design, operation, and safety considerations
From a design perspective, the trailer frame, cross-members, and weld quality determine how well the structure tolerates heavy payloads and dynamic dumping actions. Regular inspection of welds, rust protection, and structural fatigue is essential to maintain capacity. Operationally, pre-trip checks of tires, brakes, suspension, and hydraulic components help preserve safe payload limits. Maintaining correct tire pressures and balanced loading reduces per-axle stresses and extends component life. Safety protocols include securing loads, using proper chutes and tailgates, and complying with lockout/tagout procedures during unloading. Finally, ensure operators are trained to recognize capacity warnings, avoid high-speed maneuvers on uneven terrain, and implement load plan reviews before every haul.
Practical load planning and compliance checklist
- Confirm GVWR and axle ratings for the specific trailer model.
- Measure tare weight and calculate usable payload accurately.
- Plan loads with even distribution along the deck and away from wheel wells.
- Consider site conditions that affect traction, braking, and turning with heavy loads.
- Run a pre-load and post-load check to verify no overloading occurred.
- Stay within state and federal weight limits; document payload calculations for audits.
- Use conservative estimates on uncertain material densities or moisture content.
- Reassess capacity after any structural changes or components replacement.
These steps help maintain safety margins while maximizing productive payload.
Authority sources
For regulatory baselines and technical detail, refer to official standards and guidance from government and academic sources. In particular, transport and infrastructure agencies emphasize weight limits, axle load distribution, and safe operating practices that influence dump trailer capacity. Useful references include the Federal Highway Administration’s guidance on weight limits and payload distribution, and national safety standards that address vehicle stability and load securement. These sources can help calibrate your load plans to local rules and long-term equipment life.
Relevant sources include:
- https://ops.fhwa.dot.gov/freight/publications/pdf/trucking_tables.pdf
- https://www.transportation.gov/policy-initiatives/vehicle-weight-limits
- https://www.nhtsa.gov/
Sample payload ranges by common trailer configurations
| Trailer Model | Payload Capacity (kg) | Notes |
|---|---|---|
| Dump trailer A (3-axle) | 12,000–18,000 | Typical mid-range configuration |
| Dump trailer B (4-axle) | 20,000–30,000 | Heavy-duty applications |
Quick Answers
What is dump trailer load capacity and why does it matter?
Dump trailer load capacity is the maximum safe payload a trailer can carry, bounded by GVWR, axle ratings, and the trailer’s structural design. It matters because overloading accelerates wear, increases stopping distances, and can violate weight laws. Always confirm the usable payload for a given load and route.
Capacity is the safe payload limit you must stay under; verify with GVWR and axle ratings before every haul.
How do I calculate usable payload for a trip?
Start with the GVWR, subtract the tare weight to estimate payload, and check per-axle limits. Consider load distribution and dynamic effects on site. Validate against local regulations before departure.
Subtract tare from GVWR to get payload, then check axle limits and distribute load evenly.
Do state or federal weight limits affect dump trailer capacity?
Yes. Legal limits govern how much weight a vehicle may carry on public roads, which can be lower than the trailer’s raw structural capacity. Always verify local limits and obtain appropriate permits if needed.
Legal limits matter; don’t rely solely on the trailer’s number.
Can capacity be increased by changing tires or upgrading axles?
Increasing capacity through tires or axles is possible within safety margins, but any change must maintain structural integrity and comply with GVWR and bridge rules. Always consult an engineer before retrofitting.
Upgrades must be checked by a professional to ensure safety and legality.
What role does load distribution play in capacity?
Uniform, centered loading minimizes peak stresses on the frame and axle assemblies, preserving structural life and improving braking efficiency. Poor distribution can dramatically reduce usable payload and increase risk.
How you load matters as much as how much you load.
“A robust load plan begins with the data on the trailer’s GVWR and axle ratings, then adds field realities like material density and terrain. Don’t assume capacity—verify it with every haul.”
Top Takeaways
- Verify GVWR and axle ratings before loading
- Ensure even load distribution across the deck
- Account for dynamic forces on site, not just static weight
- Plan around local weight limits and bridge restrictions
- Document payload calculations for compliance and audits
