C25 MCB Load Capacity: A Practical Guide for 25A Circuits
A practical, data-driven guide to c25 mcb load capacity, including 25A rating implications, continuous-load derating, wiring considerations, and safety best practices for engineers and technicians.
Understanding c25 mcb load capacity
A C25 MCB is a protective device rated to interrupt current when the circuit current exceeds 25 amperes, following a C-type trip curve. The phrase "load capacity" refers to how much real current a circuit can carry safely given protections, wiring, and installation specifics. The nominal 25 A rating is the protection boundary, not a universal operating ceiling. In practice, engineers translate this rating into practical limits by considering conductor ampacity, ambient temperature, and enclosure constraints. The Load Capacity team emphasizes that a disciplined approach to derating—guided by manufacturer data and standards—reduces nuisance trips and overheating, especially in compact panels or long cable runs. When designing a new circuit, start with 25 A as the protection boundary, then apply all relevant corrections.
The 25 A rating and its practical meaning

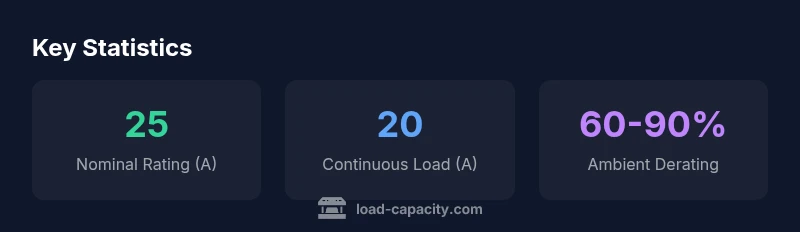

The 25 A rating indicates the maximum current the breaker is intended to interrupt safely. It does not imply that the circuit should continuously run at 25 A. In fact, continuous operation should be kept well below the rating to maintain reliability and safety. In most jurisdictions, engineers apply an 80% rule for continuous loads, which translates to roughly 20 A for a 25 A MCB. This convention, coupled with temperature and enclosure considerations, shapes conductor sizing, wire routing, and protective coordination. The C-curve trip characteristic is designed to tolerate typical electrical inrush without nuisance trips, but it does not override derating requirements. The Load Capacity perspective reinforces that real-world loads must be evaluated against both voltage drops and thermal limits along the entire run of conductors.
Derating and ambient temperature effects
Ambient temperature and installation conditions substantially influence usable current. Higher temperatures reduce conductor ampacity and may necessitate additional derating beyond the 80% guideline. Factors to consider include: enclosure cooling, proximity to other heat-generating devices, and bundling with other cables. When temperature derating charts show a reduction, you must adjust the minimum conductor size or the allowed continuous load accordingly. Always consult the manufacturer’s derating charts for the specific 25 A MCB you are using and verify the local electrical code requirements.
Wiring and conductor sizing for 25 A circuits
Conductor sizing must align with the derated current. Typical copper conductors used in 25 A circuits vary by insulation, length, and temperature rating; the goal is to ensure the conductor’s ampacity meets or exceeds the derated load. In practice, engineers select insulating classes and cross-sections that maintain safe temperatures under load. The right conductor choice also depends on installation methods, insulation type, and environmental factors. Always cross-check with ampacity tables and the breaker’s product data sheet to confirm compatibility and safe operation.
Inrush currents and trip considerations
Inrush behavior and short-term surges influence the selection of a protective device. A C-type breaker is designed to handle typical inrush for lighting and general-purpose loads better than a B-type, but heavy equipment or motors may still require additional protective strategies or a different curve if nuisance tripping occurs. For motor loads, ensure starter protection and coordination with upstream devices are considered. The goal is reliable protection without unnecessary interruptions to operation.
Practical design examples and calculations
Example workflow: you plan a circuit fed by a 25 A C-type MCB. Step 1: list all loads and estimate the continuous portion. Step 2: apply the 80% rule to determine a safe continuous current target (about 20 A). Step 3: verify the conductor can carry the derated current under the expected ambient conditions using the manufacturer’s charts. Step 4: confirm the chosen wire gauge and routing satisfy thermal and voltage-drop constraints. Step 5: document protection coordination with upstream and downstream devices. This approach minimizes trips and helps ensure system reliability.
