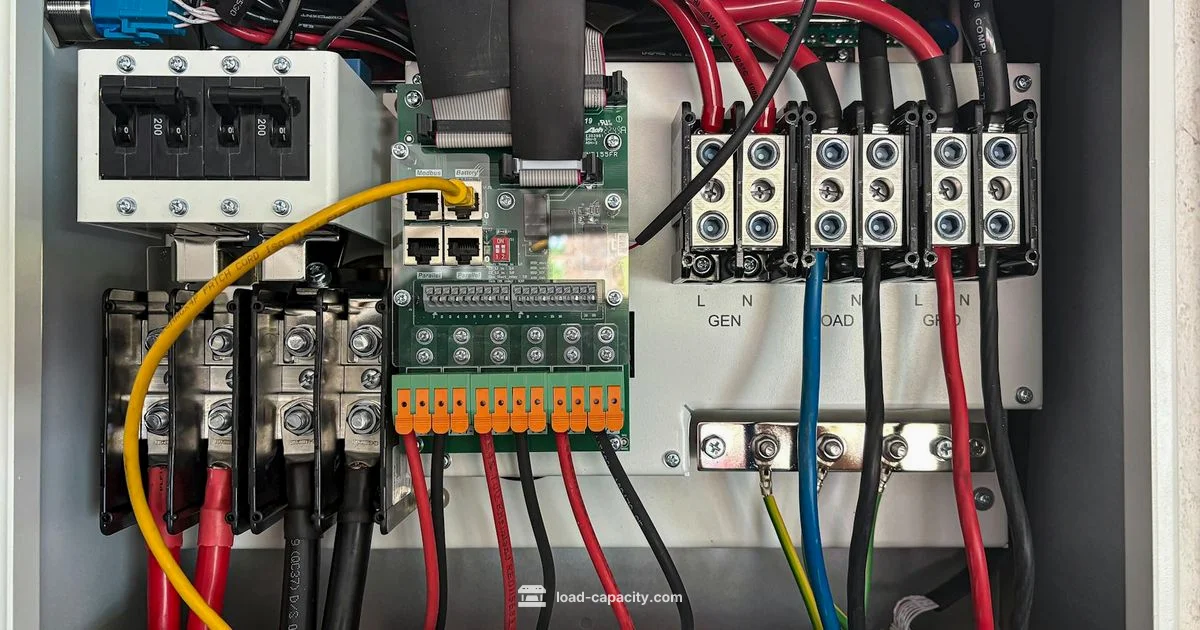

C16 MCB Load Capacity: A Practical Guide for Engineers and Technicians
A technical, data-driven guide to understanding the load capacity of C16 MCBs, including In ratings, Icu, trip curves, installation tips, and safety considerations for electrical panels.
Most C16 MCBs are rated for 16 A nominal current with a typical breaking capacity of 3–6 kA, depending on the model and manufacturer. The key is to match the MCB type and Icu to the circuit fault current and panel rating. In practical terms, avoid overloading circuits and verify compatibility with your panel's voltage and code requirements.
What is a C16 MCB and why load capacity matters
A C16 miniature circuit breaker (MCB) is a protective device designed to interrupt current when a circuit experiences overloads or short circuits. The “C” curve indicates a relatively moderate trip characteristic, suitable for general lighting and outlet circuits where inrush currents are present but not extreme. The “16” in C16 denotes a nominal operating current of 16 A. Understanding load capacity—how much continuous current a circuit can safely carry without nuisance trips—helps engineers design panels that balance protection and reliability. According to Load Capacity, selecting the right MCB requires aligning the nominal current with expected load, considering both steady-state loads and short-duration surges. In practice, ensure the panel and conductors can support the 16 A rating without overheating, and verify that fault-current protection remains adequate for system safety.
Key specifications: In, Icu, and type C curves
The In rating (16 A for C16) is the current the device is intended to carry continuously under normal conditions. The Icu rating, typically ranging from 3 to 6 kA for many domestic MCBs, specifies the fault current the breaker can interrupt safely without permanent damage. The type C curve means the breaker will trip within a specified time when currents reach 5–10 times In, covering typical residential inrush scenarios. For Load Capacity analysis, understanding these parameters helps engineers match circuit protection to actual fault and inrush conditions, reducing nuisance trips while maintaining safety. Always consult the datasheet for the exact Icu and trip characteristics of your specific part.
Reading the label and datasheets: what to verify
On the body of a C16 MCB, you’ll find In, Icu, and often the trip curve indicated (C, D, etc.). Verify that the In value is 16 A and that the Icu matches the maximum fault current your installation might experience. The operating voltage should align with your panel rating (often 230/240 V in many regions). Datasheets from the manufacturer provide the exact Icu, Ith (thermal rating), and ambient temperature derating. In Load Capacity practice, always confirm whether derating applies at higher surrounding temperatures or in enclosed spaces, as this affects the effective load capacity of the MCB in real installations.
Practical selection for different installations
Residential panels typically demand reliable protection for lighting and outlets, where a C16 MCB offers adequate protection without frequent trips. Commercial and light industrial panels may see higher inrush currents from motors or equipment; in these cases, verifying Icu and the panel’s fault-current environment is essential. If the fault current is high, a higher Icu device might be required, but only after confirming conductor sizing and panel compatibility. For 16 A circuits with modest inrush, a C16 should suffice, provided wiring and busbars are rated for the same or higher protection level.
Common pitfalls and how to avoid them
A frequent mistake is choosing an MCB solely by its nominal rating without checking the circuit’s actual fault current and ambient conditions. Another pitfall is neglecting derating for high temperatures or enclosed enclosures. Always cross-check the panel’s busbar rating and the conductor insulation class. When in doubt, pick an MCB with a slightly higher Ith rating to maintain safety margins, then adjust conductor sizing and protective devices accordingly. Load Capacity recommends documenting your calculation approach and rationale for future maintenance.
Verification, testing, and documentationbest practices
After installation, verify the system using standard electrical checks: continuity tests, insulation resistance, and a controlled load ramp to observe trip behavior. Document the exact MCB type, In, Icu, and the panel rating in project drawings. Maintain spare parts with matching ratings to avoid mismatches during future maintenance. For safety and compliance, reference local codes and standards and include a brief justification for the chosen protection level in your commissioning report.
Case examples and practical takeaways
Example 1: A 16 A lighting circuit in a residential panel with modest inrush from LED fixtures typically uses a C16 MCB without issue. Example 2: A small office with computer loads and network equipment should confirm that the fault-current environment remains within what the breaker can interrupt, and consider a higher Icu if a large UPS or power supply is present. Example 3: A workshop circuit feeding a small motor may require an in-depth review of inrush currents and possible derating, ensuring the MCB’s trip characteristics align with the observed load profile.
Key characteristics of a C16 MCB
| Parameter | Description | Typical value |
|---|---|---|
| Nominal current (In) | Rated continuous operating current | 16 A |
| Breaking capacity (Icu) | Max fault current the device can interrupt | 3-6 kA |
| Operating voltage | Nominal operating voltage range | 230/240 V |
| Trip curve | Protection characteristic type | type C |
Quick Answers
What does the C16 designation indicate on a breaker?
The 'C' refers to the curve type, indicating the trip characteristics, while '16' denotes a nominal operating current of 16 A. This combination is common for general-purpose circuits with moderate inrush.
C16 means a type C curve with a 16 amp rating, suitable for typical lighting and outlet circuits with moderate inrush.
What is the typical breaking capacity for a C16 MCB?
Breaking capacity varies by model but commonly ranges from 3 to 6 kA. Always verify the exact Icu in the datasheet for your specific part.
Most C16 MCBs interrupt between about 3 and 6 kiloamperes of fault current, depending on the model.
Can a C16 MCB protect a circuit with higher inrush currents?
Yes, if the circuit’s inrush is within the breaker’s design window for a type C curve, but repeated nuisance trips suggest a need to reassess conductor sizing or use a higher Icu device.
C16 can handle typical inrush for many loads, but persistent trips may require re-evaluating the protection and wiring.
How should I verify load capacity in installation?
Review the circuit’s actual load, compare to 16 A, and check the panel’s rating. Use datasheets for In, Icu, and derating notes, and document your assessment.
Measure or estimate the circuit load, confirm it stays within 16 A, and check the panel rating and derating notes.
Which standards govern MCB ratings?
MCB ratings typically align with IEC/EN standards for miniature circuit breakers and regional electrical codes. Always consult the project’s applicable standard references and the manufacturer datasheet.
Standards like IEC/EN guide MCB ratings; follow local codes and manufacturer data for your project.
“Choosing the right MCB means aligning the nominal current with circuit load and verifying Icu ratings to prevent nuisance trips and protect both wiring and equipment.”
Top Takeaways
- Check panel rating matches C16 MCB type
- Confirm the breaking capacity suits fault currents
- Ensure load stays within the 16 A limit
- Consult datasheets for Icu and thermal rating
- Follow local electrical codes and safety guidelines
