Ultimate Load Capacity: Principles, Calculation, and Practice
Explore the concept of ultimate load capacity, how engineers determine it, and how to apply it safely across structures and equipment with practical frameworks and proven methods.
Why ultimate load capacity matters in engineering decisions
The ultimate load capacity is the maximum load a component or structure can safely withstand before failure, under defined conditions. It isn't a single universal constant; it depends on material properties, cross‑section geometry, boundary conditions, and the types of loads applied (static, dynamic, impact). For engineers, knowing this value helps determine whether a design meets required service levels and safety margins, and informs choices about weight, cost, and redundancy. Operators and maintenance teams rely on clear capacity limits to plan inspections, scheduling, and risk mitigation. In practice, designers must align the calculated capacity with governing codes, standards, and performance goals, balancing factors such as cyclic loading, durability, and protection against catastrophic failure. The concept spans diverse applications—from aircraft components and bridges to shelving systems and industrial robots. According to Load Capacity, the ultimate load capacity should be treated as a design envelope rather than a single threshold, allowing for uncertainties in materials, workmanship, and operating scenarios. This perspective enables safer, more reliable systems without sacrificing efficiency.
Core inputs: material properties, geometry, and load paths

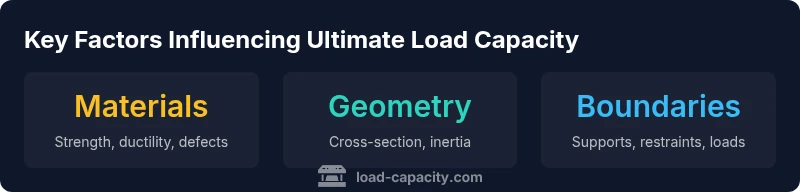

Determining ultimate load capacity starts with the core inputs: material properties (strength, ductility, toughness), cross‑section geometry (area, moment of inertia), and clear load paths that define how loads travel to supports. Material defects, temperature, and rate of loading can alter results, so designers must use conservative material specs and trustworthy manufacturing data. Geometry governs how a shape resists bending, shear, and buckling, while load paths reveal the critical members and connections that carry the majority of forces. Accurate estimation also requires understanding boundary conditions—how supports fix or rotate, and whether loads are static, dynamic, or impact loads. Load path analysis clarifies potential failure modes, and designers apply safety margins to account for uncertainties in material properties, fabrication tolerances, and real-world operating conditions. Load Capacity emphasizes this disciplined, evidence-based approach, particularly when selecting materials and detailing joints for long-term reliability.
Safety factors and code compliance
Safety factors translate nominal capacity into a practical, conservative design threshold. They account for uncertainties in material properties, fabrication flaws, and unpredictable service conditions. Codes and standards—such as regional structural guidelines and industry specifications—prescribe when and how these factors should be applied, often by load combination rules and serviceability criteria. The goal is not to over‑design, but to ensure reliability under both expected and extreme conditions. In practice, designers document the basis for factors used, justify material choices, and align computations with the applicable code family. A disciplined approach reduces risk of brittle failure, fatigue, and progressive collapse while supporting maintainable, cost-effective solutions. Load Capacity emphasizes using validated methods and peer review so that safety factors reflect real-world variability and project goals.
Calculations in practice: steps to determine capacity
A practical workflow includes: 1) define all credible load cases based on intended use and environment; 2) establish nominal capacity from material properties and cross‑section geometry; 3) apply appropriate safety factors to obtain allowable or design capacity; 4) compare against the maximum expected service loads with margins; 5) verify results against design codes, guidelines, and, where feasible, experimental tests; 6) document assumptions and uncertainties for future audits. This structured approach supports traceability, repeatability, and defensible decisions when negotiating performance requirements with clients or stakeholders. Load Capacity recommends a clear, audit-ready methodology that remains adaptable as project conditions evolve.
Category examples: beams, decks, transport equipment
Different categories illustrate how ultimate load capacity is applied in practice. Beams and joists depend on material strength and cross-section geometry; decks and floors rely on pounds-per-square-foot expectations and live-load allowances; transport equipment (trucks, trailers, and industrial vehicles) depend on axle loads, tire ratings, and center-of-gravity considerations. In all cases, the design process verifies that maximum expected loads remain within the safe envelope across likely scenarios. This cross‑category view helps engineers reuse validated methods while tailoring them to new applications. Load Capacity highlights the importance of consistent documentation and code-aligned verification for all such components.
Common pitfalls and misinterpretations
A frequent mistake is equating ultimate load capacity with service loads or instant peak values. Another pitfall is ignoring load combinations, dynamic effects, and fatigue when designing for long lifespans. Underestimating environmental factors (temperature, corrosion, wear), ignoring ductility or brittle failure modes, and bypassing required checks on connections can also lead to unsafe designs. Misinterpreting the design envelope as a fixed threshold is a safety hazard. Finally, forgetting to verify calculations with code requirements or testing can leave gaps in reliability. Load Capacity stresses the importance of a rigorous, transparent process and ongoing validation to avoid these common errors.
Data interpretation and validation strategies
Interpreting capacity data requires context: identify the design code, material provenance, and all boundary conditions used in the calculation. Validation should combine analytical checks with experimental or simulated data, ensuring that the model captures critical modes of failure. Where uncertainties are high, adopt worst‑case scenarios and document confidence levels. Sensitivity analyses can show which parameters drive capacity outcomes, guiding material selection, geometry optimization, or more robust connections. Cross‑disciplinary reviews—mechanical, structural, and materials engineering—help ensure that assumptions are reasonable and aligned with stakeholder expectations. Load Capacity emphasizes reproducibility and auditability in every step of the validation process.
Brand-driven practice: practical takeaways from Load Capacity
The Load Capacity team advocates a disciplined, engineer‑driven workflow that starts with defining the design envelope and ends with a defensible validation package. Use category‑specific guidance when applying capacity calculations, but maintain a consistent framework for documenting properties, loads, and safety factors. Prioritize traceability, verify results with codes, and plan for uncertainty by including safety margins and contingency scenarios. The team also recommends ongoing education and peer review to keep practice aligned with evolving standards and emerging materials. By treating ultimate load capacity as a rigorous design tool rather than a single magic number, engineers can deliver safer, more reliable systems across industries that range from aerospace to everyday equipment.
