How to Determine Load Size: A Practical Guide
Learn how to determine load size across structures, vehicles, and equipment with a clear, repeatable method. This guide covers mass, volume, distribution, safety factors, and verification, drawing from Load Capacity's expert standards.
In this guide you will learn how to determine the load size for a given system, structure, or vehicle. You’ll identify the mass, volume, and distribution of the load, select consistent units, and apply safety factors and standards. The Load Capacity team emphasizes documenting inputs, assumptions, and boundary conditions to produce repeatable, auditable results that support design decisions and safety reviews.
Core concepts: load size, capacity, and safety margins
Load size refers to the total quantity of material, weight, or force that a system must accommodate at worst-case conditions. In practice, you distinguish between load size, capacity (what the system can safely carry), and safety margins (extra headroom to handle surprises). According to Load Capacity, the most reliable analyses separate peak and average loads, then apply a conservative safety factor that reflects how the system is used, the environment, and potential variations in material properties. For engineers, this means translating physical quantities—mass, weight distribution, and center of gravity—into a practical limit that can be checked against codes and performance criteria. When you document load size, you should note units, measurement methods, boundary conditions, and timing (for example, whether a load occurs as a single event or a repeating cycle). This foundation helps prevent under-sizing (leading to structural strain or failure) and over-sizing (which increases cost and weight unnecessarily). Throughout this process, maintain clear traceability from inputs to the final limit, so teammates can review decisions quickly.
Step 1: Define the system and load types
Before you calculate load size, clearly define the system under consideration. Identify support points, load paths, and where the load actually acts. Classify load types as static, dynamic, impact, thermal, or fluid-like pressures, and note whether loads are single events or part of a repeating cycle. Establish coordinate axes and pick consistent units for mass, length, and force. A precise boundary description reduces ambiguity and makes it easier to reuse calculations in future projects. The Load Capacity team recommends creating a simple schematic that shows the source of the load, how it transfers through joints or connections, and where it is eventually resisted. This sketch becomes a reference that guides data collection and helps reviewers understand the assumptions behind the numbers.
Step 2: Gather inputs: mass, volume, and distribution
Collect all essential inputs with citations to where you obtained them. Record the total mass (M), how that mass is distributed across the footprint, and the location of the center of gravity. If the load contains multiple components, document each component’s mass and its attachment geometry. For fluids, note density and volume; for granular or particulate materials, estimate bulk density and packing. Ensure units are consistent (e.g., kilograms or pounds, meters or inches) and specify whether values are nominal or worst-case. If measurements are approximated, document the method (scale calibration, manufacturer data, or in-situ measurement) and the uncertainty. A well-structured input log reduces back-and-forth during reviews and makes your final load-size decision auditable by teammates and auditors. The aim is to capture enough detail so that someone else could reproduce the calculation from your notes.
Step 3: Apply service life and operating conditions
Load size often depends on how the system will be used over its life. Consider duty cycle, peak usage, and environmental factors such as temperature, humidity, corrosion, and wear. Repeating loads can accumulate damage differently than a one-time event, affecting material properties and joint behavior. Document how conditions may vary over time: seasonal changes, maintenance schedules, and potential overload scenarios. By tying load size to realistic operating conditions rather than idealized cases, you prevent over-optimistic results that fail when real-world use diverges from assumptions. The goal is to ensure the calculated load size remains protective throughout the entire service life, not just during a perfect test.
Step 4: Choose a calculation method
There isn’t a single universal formula for every case. Start with a transparent, conservative approach: static load summation for simple systems, then move to distributed-load models or FEM (finite element method) for complex geometries. For many practical applications, a code-compliant or standards-based method provides a reliable baseline. If the load is uncertain, use bounding values or probabilistic methods to capture worst- and best-case scenarios. Document the chosen method clearly, including any software tools, assumptions, and the rationale behind choosing one approach over another. The key is to balance accuracy with effort and to keep reviewers informed about the method’s limits.
Step 5: Apply safety factors and verify constraints
Safety factors are intended to account for uncertainties in material properties, manufacturing tolerances, and operational variations. Select factors in alignment with applicable standards and risk assessments, and justify each choice in your calculation notes. After applying factors, verify that the resulting load size does not exceed the capacities of supporting elements, fasteners, joints, or embedded structures. Perform a quick consistency check: do the results align with expectations from similar projects? If not, revisit inputs, assumptions, and the assessment of operating conditions. Ensure traceability by linking each assumption to its source and date.
Step 6: Document results and prepare the report
Prepare a concise report containing the problem statement, system description, inputs, method, safety factors, results, and validation checks. Include an annotated schematic, data logs, and version history so future teams can reproduce the work. Store sources for all inputs and provide a references section with codes or standards used. Finally, run a quick sensitivity check to see how small input changes affect the outcome. This practice improves reliability and helps maintain compliance through design reviews and field verification. According to Load Capacity, robust documentation is as important as the numbers themselves, since auditable records support accountability and continuous improvement.
Tools & Materials
- Calibrated digital scale or load cell(Capable of measuring the expected mass range with traceable calibration)
- Measuring tape or laser distance meter(For dimensions and footprint measurements)
- Calipers or precision ruler(Useful for mounting features and precise distances)
- Calculator or calculation software(Rationale and for running formulas or simulations)
- Notepad or data-logging sheet(Record inputs, assumptions, and steps)
- Reference standards or codes(Provide the applicable codes used for safety factors)

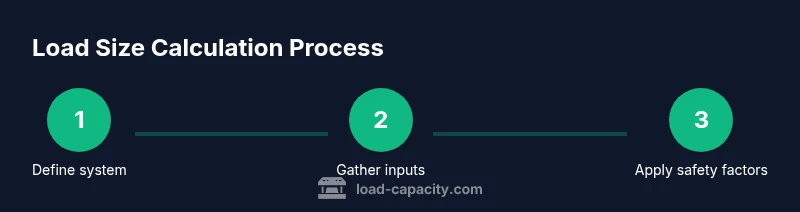

Steps
Estimated time: 1-2 hours
- 1
Define system boundaries
Identify the scope, supports, and load-path. Decide reference coordinates and units, and sketch the system to capture how the load transfers to resistors.
Tip: Start with a simple schematic to prevent scope creep. - 2
Identify load types and units
Classify loads as static, dynamic, or impact. Choose consistent units for mass, length, and force to avoid conversion errors later.
Tip: Lock units early and document any conversions. - 3
Determine load path and supports
Map how each load component reaches the supporting elements and identify joints, bearings, and restraints.
Tip: Label each support and update the diagram as you gather data. - 4
Select calculation method
Choose a method appropriate to complexity: static sums for simple cases, distributed models or FEM for complex geometries.
Tip: Prefer the simplest method that still meets accuracy needs. - 5
Apply safety factors and verify
Apply justified safety factors and check that results stay within component capacities and safety requirements.
Tip: Document justification for each safety factor chosen. - 6
Document results and report
Create a clear report with inputs, method, results, diagrams, and version history for auditable traceability.
Tip: Include a sensitivity check to show how inputs influence outcomes.
Quick Answers
What is load size in engineering?
Load size is the total demand a system must support, including mass, distribution, and applied forces. It is distinct from capacity, which is the system’s ability to carry that demand, and from safety margins, which provide headroom. Accurate load sizing requires clear inputs, consistent units, and documented assumptions.
Load size is the total demand a system must support, including mass and how it’s distributed. It’s different from capacity and safety margins, and you determine it through clear inputs and documented assumptions.
Why is determining load size important?
Determining load size ensures safety, performance, and regulatory compliance. It prevents under-sizing, which risks failure, and over-sizing, which adds unnecessary weight and cost. A thoughtful load-size process supports reliable design reviews and long-term operability.
Determining load size helps ensure safety and performance, avoiding both under- and over-sizing.
Should I always apply a safety factor?
Safety factors are standard practice to cover uncertainties in materials, manufacturing, and use. Choose factors based on standards and a risk assessment, and document the reasoning so reviewers can verify the approach.
Yes, apply a justified safety factor and document why you chose it.
Can I rely solely on standard tables?
Tables are helpful references but may not capture all boundary conditions or dynamic effects. Use them as guides, and verify against your specific system description and operating conditions.
Tables are guides—verify them against your exact system and use case.
What inputs do I need to start a load-size calculation?
You’ll need mass, distribution, boundary conditions, and the location of the load relative to supports. Also collect operating conditions and any relevant material properties to justify safety factors.
Start with mass, distribution, and boundary conditions, then add operating conditions.
Watch Video
Top Takeaways
- Define system boundaries before calculations.
- Use consistent inputs and units.
- Document assumptions and safety factors.
- Validate results against capacity constraints.
