Calculating Hydraulic Cylinder Load Capacity: Practical Guide

What load capacity means for hydraulic cylinders

Understanding how to calculate hydraulic cylinder load capacity starts with a clear definition of the term. Load capacity is the maximum load a cylinder can safely apply or resist, given the bore size, hydraulic pressure, and the internal geometry of the cylinder. In practice, this means engineers must translate abstract pressure and area into a meaningful force. According to Load Capacity, load capacity is best understood as the maximum safe load under a specific bore and pressure, influenced by geometry and material strength. This foundational idea is the starting point for design checks, safety margins, and performance verification across mobile and industrial equipment. As you work through the steps, remember that the goal is to predict safe operating limits before the system is built or deployed, reducing risk and expanding design options.

The keyword here is consistency: always use compatible units, confirm your bore measurement, and align pressure units with the hydraulic fluid specification. A robust understanding also helps when analyzing end-of-stroke conditions, seal integrity, and dynamic effects, all of which can alter the actual load the cylinder can sustain in service.

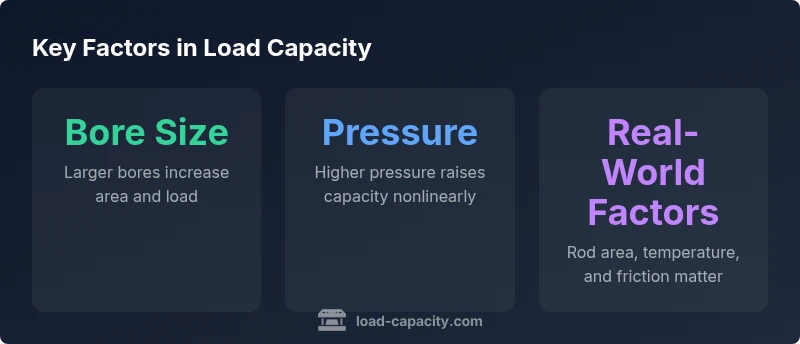

How cylinder bore size and rod area influence capacity

The bore diameter sets the piston face area, which directly controls the force generated at a given hydraulic pressure. The larger the bore, the greater the potential load, because force equals pressure times area. The piston rod, while changing the effective area on the rod side, reduces the net load the rod can transmit if both sides are not equal. In many designs, designers account for this asymmetry by using the smaller effective area on a control side or by specifying a different end condition. A simple way to think about it is: bigger bore means more potential load, but real-world constraints like rod area, end caps, and seals can reduce the usable force. When planning a system, always calculate the piston area from the bore and consider whether the rod reduces the effective area on the side where the load is applied.

Pressure, speed, and dynamic effects

Hydraulic pressure drives the load, but the system’s dynamic behavior matters. Static calculations assume constant pressure and no acceleration, which is rarely the case in real machines. Start with the static load capacity as a baseline, then add a conservative factor for acceleration, deceleration, and inertia. Speed can also influence hydraulic efficiency and the effective load due to fluid compressibility and valve dynamics. Temperature affects fluid viscosity and, consequently, pressure transmission. Warmer fluids often flow more readily, modifying the actual pressure seen at the piston. Always check the control valves, seals, and line sizing to ensure the actual load closely matches the predicted value under expected operating speeds.

Temperature and viscosity effects

Fluid temperature changes viscosity, which can impact pressure transmission and flow rates. As temperature rises, viscosity typically drops, improving flow but potentially altering pressure drop across components. In cold conditions, higher viscosity can limit flow, reducing the achievable load at a given speed. A practical rule is to verify performance at the temperature range you expect in service and, if necessary, adjust the design or maintenance plan to accommodate viscosity shifts. Temperature also influences seal performance and material contraction, both of which can affect capillary dynamics and leak paths.

End-of-stroke considerations and sealing

End-of-stroke conditions introduce unique challenges. Back-to-back cycles can create hydraulic shocks and pressure spikes, especially if the system’s valve control is abrupt. Seals must handle higher contact stresses at the end of travel, and the piston rod may experience increased wear. In practice, designers incorporate soft-stop solenoid valves, proper cushioning, and appropriate seal materials to mitigate shocks. Understanding how end-of-stroke forces interact with bore size and pressure helps ensure long-term reliability and safety in heavy machinery and industrial equipment.

Step-by-step calculation example

Let’s walk through a concrete example using a simple, static scenario. Suppose a hydraulic cylinder has a bore diameter of 80 mm and operates at 20 MPa. The piston area A is: A = π × (d/2)^2, with d in meters. d = 0.08 m, A ≈ π × (0.04)^2 ≈ 0.0050265 m^2. The load F is F = A × P, with P = 20 MPa = 20 × 10^6 Pa. So F ≈ 0.0050265 × 20,000,000 ≈ 100,531 N. Rounding gives about 100,531 N. This example illustrates the core relationship: load scales with both bore area and pressure. Remember to use consistent units and apply safety factors for real-world designs. [Designers should compare this static estimate with manufacturer data and system margins.]

Common mistakes to avoid

• Treating load capacity as a fixed number without factoring dynamic effects like acceleration and valve response.
• Forgetting to account for the piston rod area on the load side, which reduces effective capacity.
• Using inconsistent units or misinterpreting MPa vs. bar pressure.
• Ignoring temperature effects on viscosity and seal behavior.
• Overlooking end-of-stroke shocks that can momentarily exceed static capacity.

Avoid these pitfalls by validating calculations with test data and applying conservative safety factors.

How to verify results in practice

Validation should combine calculation with empirical testing. Start by performing a controlled bench test where you apply progressively higher loads at the expected operating pressure and measure piston position, velocity, and pressure drop. Compare measured values to the predicted load capacity and check if the system remains within the safe operating envelope. If discrepancies arise, review bore measurements, pressure readings, temperature, and any modifications to seals or lubricants. Documentation of test conditions and results helps build a trail for compliance and future maintenance.

Integrating load capacity into system design

Integrating load capacity into design means linking hydraulic calculations to the broader system requirements. Use the calculated capacity as a baseline for selecting valves, tubing, and pumps that can deliver the required pressure at the desired speed while maintaining margin for safety. Include a formal safety factor, often specified by industry standards or internal design guidelines, and document the decision process. The Load Capacity team recommends reviewing results with structural engineers when hydraulic loads interact with structural components, and always align your analysis with applicable codes and best practices to ensure reliability and safety across applications.
