Glass Door Hinge Load Capacity: A Practical Guide

Core concepts of glass door hinge load capacity

According to Load Capacity, the glass door hinge load capacity is not a single universal value. It depends on hinge design, mounting method, the weight of the glass panel, distribution of that weight, and dynamic loads produced by regular use. A conservative approach treats the rating as a ceiling rather than a target, and always cross-checks with the manufacturer’s data sheet. For engineers, technicians, and installers, this means starting with the rated per-hinge capacity for the exact hinge model, then validating how the door’s geometry and mounting interface affect the actual load path. The Load Capacity team emphasizes that a safe installation accounts for tabled ratings, plus practical margins for vibration, wind loads (where applicable), and post-installation wear.

Factors that influence hinge load capacity

There are several interrelated factors that determine how much load a glass door hinge can safely carry:

• Hinge design and class (butt, pivot, continuous, or concealed hinges) and their material (stainless steel vs zinc alloy).
• Glass weight and size (thicker and larger panes add more static load).
• Door width and height which affect leverage and distribution of stress at the hinge line.
• Mounting substrate quality and installation quality (frame integrity, alignment, screws, and anchors).
• Environmental conditions and dynamic loads from opening/closing cycles and wind or air pressure for exterior doors.
• Safety margins and design factors used by manufacturers. The Load Capacity guidance suggests always mapping your door’s load path to the hinge’s rated capacity and applying a conservative safety factor.

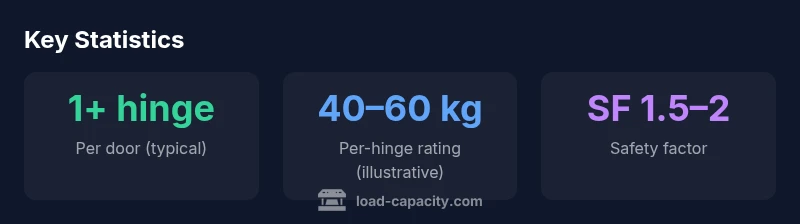

Calculating expected loads for your door

To estimate the load on each hinge, start with the door’s total weight and distribute it among the hinges. A common approach is:

• Compute door weight W (approximately) as W ≈ ρ × t × A, where ρ is glass density (~2500 kg/m³), t is thickness, and A is the door area (width × height).
• If there are n hinges, the static distributed load per hinge is W/n (assuming equal distribution and ideal alignment).
• Compare W/n to the manufacturer’s per-hinge rating H. For safety, apply a factor of safety (e.g., SF = 1.5–2) so that W/(n × SF) ≤ H.
• Account for dynamic loads, such as frequent use, wind, or slam forces, by further reducing the allowable load per hinge. This methodology helps ensure that the hinge selection matches real-world operating conditions and avoids overloading any single hinge.

Typical configurations and recommended practices

Different applications require different hinge strategies. For shower enclosures or frameless glass showers, two or more hinges with robust fasteners are common. For cabinet doors, concealed or semi-concealed hinges may dominate, with load-capacity ratings tied to door weight rather than pane size. Exterior glass doors often demand heavy-duty hinges with reinforced mounting and corrosion-resistant materials. In all cases, ensure the hinge rating covers the door weight, plus a reasonable safety margin, and avoid loading hinges beyond the stated rating as this increases the risk of glass breakage or hinge failure. Load calculations should be revisited after any door modification (e.g., glass thickness change, panel resizing) to maintain safe performance.

Standards and verification methods

Hinges used with glass doors are typically evaluated against industry standards such as BHMA/ANSI A156.1 and EN 1935. These standards address performance criteria including load ratings, cycle durability, and mounting requirements. While standards provide a baseline, manufacturers’ datasheets remain the definitive source for a given hinge model. For engineers, it’s prudent to cross-reference the rating with your specific installation and verify that the design loads align with the hinge’s tested values. Documentation of ratings and testing supports quality control and future inspections.

Maintenance and installation tips to avoid overload

Prevention is better than cure when it comes to hinge overload. Regular inspection should focus on alignment, fastener tightness, and signs of stress or wear on the hinge leafs and mounting screws. Use correct fasteners for the substrate (frame, wall, or cabinet) and avoid over-tightening, which can distort the mounting plane. When replacing hinges, match the exact hinge type and verify that replacement loads are compatible with the door weight and distribution. Finally, document all measurements and ratings, so future maintenance can rely on verified data rather than assumptions.

Worked example: illustrative calculation (illustrative numbers)

Consider a frameless glass door for an interior space. Assume a tempered glass panel of 6 mm thickness, width 0.9 m, height 2.1 m, density ρ ≈ 2500 kg/m³. Door area A ≈ 0.9 × 2.1 = 1.89 m². Volume ≈ t × A = 0.006 × 1.89 ≈ 0.01134 m³. Weight W ≈ ρ × volume ≈ 28.3 kg. If the door uses 2 hinges, static load per hinge ≈ 14.2 kg. If the hinge rating is 40 kg per hinge, the static load is well within the rating. For safety, apply SF 1.5, giving allowable per-hinge load ≈ 40 kg / 1.5 ≈ 26.7 kg; the 14.2 kg per hinge remains safe under this conservative check. Remember this is a simplified illustrative example and actual installations must rely on manufacturer data and professional calculations.

Quick-start checklist for installers

• Verify hinge rating matches door weight and expected dynamic loads.
• Confirm mounting substrate integrity and use appropriate screws/anchors.
• Align hinges precisely to distribute load evenly and minimize perched stress at any single hinge.
• Include a safety factor in design calculations and test after installation.
• Document hinge model, weight, mounting method, and ratings for future maintenance.
• Schedule periodic inspections for wear, mounting loosening, and alignment drift.

Practical considerations for retrofit or replacement

When retrofitting or replacing hinges on existing glass doors, you must reassess total door weight, glass thickness, and mounting conditions. A heavier door or thicker glass typically requires additional hinges or higher-rated hardware. Always select replacement hinges with ratings equal to or exceeding the original design, and consider upgrading mounting anchors if the substrate has degraded. Budget for professional installation to ensure proper alignment and load sharing across hinges.
