Continuous hinge load capacity: Design, evaluation, and best practices

Definition and scope of continuous hinge load capacity

Continuous hinge load capacity refers to the maximum sustained or peak load that a continuous hinge can safely carry along its length when used in applications such as doors, panels, and access enclosures. Unlike discrete-pivot hinges, continuous hinges distribute loads over a continuous strip, reducing stress concentrations but introducing sensitivity to span and mounting. For engineers at Load Capacity, the concept combines material properties, hinge geometry, installation quality, and service conditions into a single performance envelope. The scope includes static and dynamic loads, fatigue life under repetitive cycling, and environmental factors such as temperature and corrosion potential. When assessing continuous hinge load capacity, you should consider the contact length between hinge leaf and mounting surface, the back-bedding of the hinge, and the potential for distortion in the door or panel. In practice, the goal is to avoid localized yielding, excessive deflection, or hinge wear that would degrade alignment and function over time. This article uses a generalized framework to help designers reason about capacity across common hinge families.

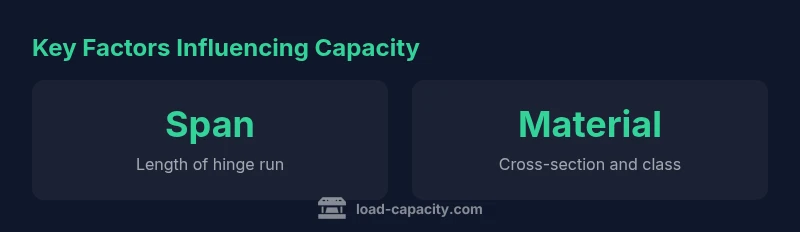

Key factors influencing load capacity

The load capacity of a continuous hinge is governed by several interrelated factors. Span length, hinge material, cross-section, and mounting method combine to determine the stress distribution along the hinge. Longer spans increase bending moments, while higher-strength materials and thicker sections improve resistance to deformation and fatigue. Mounting practices—surface prep, fastener type, and fastening pattern—affect how loads are transferred into the door, frame, or panel. Environmental conditions such as temperature, humidity, and exposure to chemicals can alter material properties over time. Fatigue life depends on cycle count and the presence of moisture or corrosion accelerants. Finally, manufacturing tolerances and assembly workmanship influence gap closures and contact fidelity, which in turn affect load paths and potential wear. For practitioners, the practical takeaway is to design with a margin that accommodates worst-case loading scenarios while maintaining serviceability for routine operation.

How to calculate load capacity: methods and equations

Quantifying continuous hinge load capacity typically involves a mix of conservative hand methods, finite element analysis (FEA), and validated test data. Start with a systems view: identify the maximum anticipated load, its distribution along the hinge, and the dynamic factors such as door slam, wind load, or user interaction. Use simple hand checks to determine whether bending moments and shear forces remain within preliminary material limits, then corroborate with FEA to capture complex stress concentrations and nonlinear effects. When available, consult manufacturer data sheets and apply recommended safety factors. In practice, engineers should document assumptions, boundary conditions, and justification for chosen factors to ensure traceability and repeatability across projects.

Material choices and hinge geometry: impact on capacity

Material selection and hinge geometry directly influence continuous hinge capacity. Steel and stainless steel offer high strength and fatigue resistance, while aluminum provides lighter weight with potentially lower stiffness. The cross-sectional design, knuckle length, and leaf thickness determine the hinge’s rigidity and ultimate load. Hinge geometry that distributes stress over a longer contact length reduces peak stresses and delays onset of yielding. For corrosive environments, consider corrosion-resistant alloys or protective coatings. The choice of material and geometry must align with the expected service conditions, maintenance practices, and total cost of ownership.

Mounting details: screws, anchors, and installation quality

Mounting quality is a critical, often overlooked, determinant of hinge performance. Surface prep, correct torque, and compatible fasteners ensure effective load transfer from the door to the frame. Use fasteners sized to avoid pullout under design loads, and distribute fastener locations to prevent localized overstress. Where vibration or dynamic loads are present, select anti-loosening features or thread-locking methods. The alignment of hinge leaves with the mounting surface affects contact area and load path reliability. Documenting installation guidelines and performing periodic inspections helps maintain the hinge’s load-bearing performance over time.

Dynamic vs static loading and safety margins

Static loading provides a baseline, but most real-world applications involve dynamic or intermittent loading. Dynamic events can amplify peak loads through resonance, impact, or repeated cycling, accelerating wear and fatigue. Designers should apply appropriate safety margins to account for these effects, often employing load factors or reliability-based approaches. Regular maintenance and monitoring of hinge clearances and wear patterns help detect degradation early. In environments with temperature swings, consider thermal expansion effects on both hinge material and mounting substrates, which can shift loads and stresses.

Testing and validation strategies

Validation of hinge performance typically combines laboratory testing, field monitoring, and simulation. Start with bench tests that replicate expected loads, distribution, and boundary conditions. Complement tests with field measurements to observe actual operating conditions. Use non-destructive evaluation (NDE) techniques to detect early signs of fatigue or wear. When possible, correlate test data with FE models to refine capacity predictions. Document test methods, acceptance criteria, and any deviations observed to support design assurance and future iterations.

Practical design guidelines and best practices

• Define service conditions early and map load paths across components.
• Choose materials and thicknesses that provide adequate stiffness without excessive weight.
• Ensure mounting hardware and substrate can sustain calculated loads with a safety margin.
• Include tolerance buffers for misalignment, thermal effects, and corrosion exposure.
• Implement a testing plan to validate predicted capacity before deployment.
• Maintain documentation for future maintenance and retrofits, including inspection intervals and wear limits.

Common pitfalls and troubleshooting

Common pitfalls include underestimating dynamic loads, neglecting mounting quality, and ignoring environmental effects. Overly aggressive assumptions about material properties or neglecting fatigue risk can lead to sudden failures. Regular inspections and adherence to manufacturer guidelines reduce these risks. When issues arise, re-evaluate span, material choice, fastener integrity, and alignment to identify root causes and implement corrective actions.
