Expanded Metal Mesh Load Capacity: Design Guidance
A comprehensive, data-informed guide to understanding and optimizing expanded metal mesh load capacity for engineers, technicians, and builders.
Expanded metal mesh load capacity is not a fixed value; it depends on design context and validation data. Key determinants include material grade, thickness, cell size, orientation, and support conditions. For safety-critical applications, engineers rely on design formulas, conservative assumptions, and targeted testing to establish allowable loads under static, dynamic, and impact scenarios. The Load Capacity team emphasizes validating every design with appropriate testing and documentation.
What is expanded metal mesh load capacity and why it matters

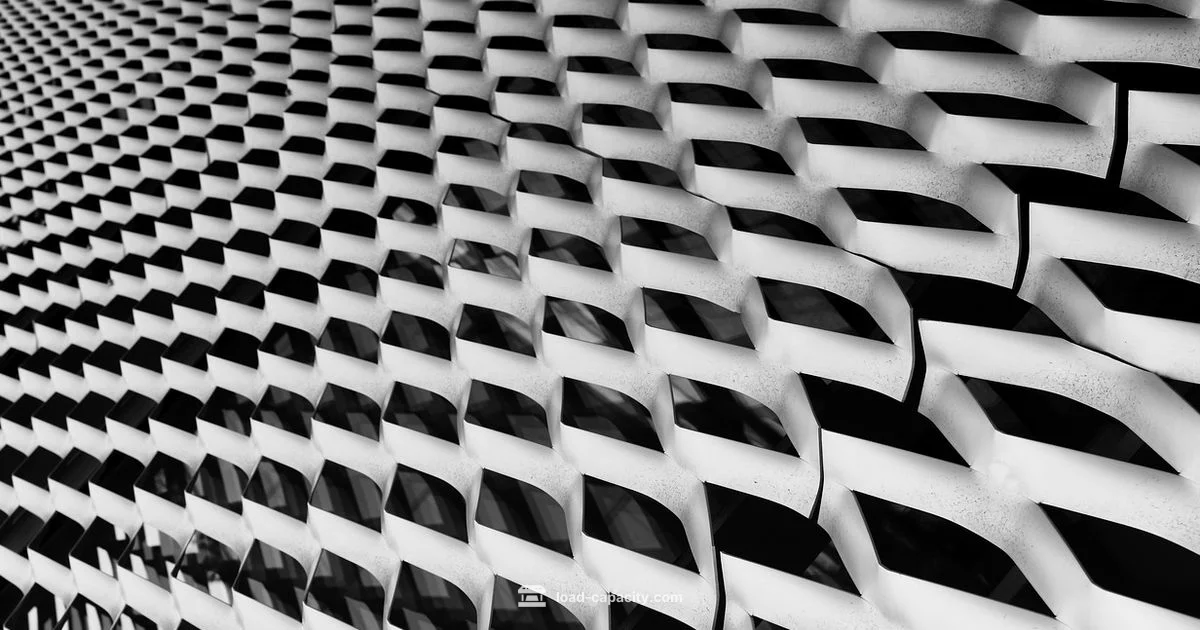

Expanded metal mesh is produced from a single metal sheet that is slit and stretched to form a uniform, interconnected pattern. This manufacturing method yields a stiff, monolithic panel with no woven joints, which reduces certain stress concentrations but introduces unique load-path characteristics. In engineering practice, expanded metal mesh load capacity refers to the maximum load that a panel can safely support under a defined set of conditions, including material type, thickness, cell size, span between supports, edge detailing, and load type. The Load Capacity team emphasizes that there is no universal numeric value for capacity; designers must establish a design basis by selecting a material grade, thickness, and mesh geometry, then validating that choice through analysis and testing. When used in floors, platforms, or protective gratings, this capacity informs factors like deflection limits, service life, and safety margins. The context is critical: a small, thick panel spanning short supports behaves differently from a large, thin sheet with widely spaced supports. As such, a robust assessment combines material science, structural analysis, and practical testing to build confidence before installation.
Key factors that influence load capacity in expanded metal mesh
Load capacity in expanded metal mesh is controlled by a set of interdependent factors. First, material grade and alloy temper determine the intrinsic strength and ductility. Steel, aluminum, or stainless steel each bring different performance profiles, corrosion resistance, and thermal behavior that affect load-bearing potential. Second, mesh thickness (gauge) directly influences stiffness, but higher thickness adds weight and cost, so designers seek an optimal balance for the application. Third, cell size and strand geometry alter how loads are transmitted through the panel; smaller openings can offer more uniform load distribution but may change local stress concentrations near cutouts or edges. Fourth, orientation matters: the primary load path often runs along the axis of the thicker strands, and the angle of loading relative to the mesh can shift harmonics and deflection behavior. Fifth, support conditions—how the panel is mounted, the span between supports, and edge restraints—significantly control the effective capacity. Finally, the type of load (static, dynamic, impact, or distributed) changes the design envelope. For precise results, practitioners use a combination of analytical methods and controlled testing, following a documented design basis.
Loading scenarios and failure modes
In practice, expanded metal mesh experiences several loading modes that interact to determine safe capacity. Static loads test the panel under constant weight, often simulating utility equipment or personnel. Dynamic loads account for moving or vibrating loads, where inertia and resonance can amplify local stresses. Impact loads evaluate sudden forces, such as a dropped tool or equipment bump, which require higher safety factors and improved edge detailing. Localized loads on corners, edges, or attachment points can cause punching or yielding if the mesh is not properly supported. Deflection limits are a key determinant of serviceability; excessive deflection can lead to fatigue or misalignment with mounting hardware. It is important to note that failures are not always catastrophic; progressive yielding, cracking at welds or joints, or loosening of edge restraints can reduce performance over time. By anticipating these modes, designers can select appropriate thickness, backing, and support strategies to maintain safe, durable performance across the intended life of the installation.
Design guidelines to maximize load capacity
To optimize expanded metal mesh load capacity, engineers can apply several practical guidelines. Start with a conservative material selection—prefer alloys with known strength and corrosion resistance for the intended environment. Increase thickness or reinforce with a consistent backing frame in areas expected to bear heavy or dynamic loads. Align the mesh orientation so that primary load paths run along the strongest strands, and ensure the span between supports is appropriate for the anticipated load. Edge detailing matters: use stiff edges, proper fasteners, and, if necessary, a separate support channel or frame to transfer loads efficiently. Consider composite designs that couple the mesh with a backing plate or a structural frame to distribute loads more evenly. Finally, validate your design with a formal testing plan, including pre-load conditioning, and document outcomes to support future maintenance and audits.
Testing, standards, and validation
Validation of expanded metal mesh load capacity relies on a structured testing and standards approach. In many industries, engineers reference recognized standards for material testing, fatigue, and load-path analysis, while applying company-specific safety factors. Labs typically perform material property tests (tensile strength, yield, elongation) on the same alloy used in the mesh, followed by panel-level tests that simulate service conditions. A comprehensive validation plan combines analytical methods—such as finite element modeling to map stress distributions and deflection—with physical test data to verify assumed behavior under static and dynamic loads. Documentation should capture the design basis, test setup, loading regimes, instrumentation, results, and final allowable loads. When standards are not explicit for a specific mesh configuration, engineers justify the design with conservative assumptions and traceable data. The result is a defendable, auditable record that supports safe installation and ongoing performance.
Practical workflow for engineers evaluating expanded metal mesh load capacity
A practical workflow starts with defining the service conditions: intended loads, load types, environmental factors, and life-cycle expectations. Next, select a baseline mesh geometry and material grade based on performance history and supplier data. Perform an analytical analysis to estimate stiffness, stress distribution, and deflection, focusing on critical areas such as edges, attachments, and openings. If necessary, run a limited physical test on a representative panel to calibrate the model. Refine the design by adjusting mesh thickness, backing, or support spacing to meet the required safety factor. Validate the final design with documentation that includes test data, calculations, and installation details. Finally, plan for periodic inspections and re-validation if service conditions change. This approach ensures that expanded metal mesh load capacity is aligned with safety requirements and operational needs.
Common pitfalls and safety considerations
Common pitfalls include underestimating the effect of edge constraints, neglecting the influence of mounting hardware on load paths, and assuming a universal load capacity across different mesh geometries. Safety considerations center on establishing a clear design basis with conservative factors, ensuring suitable backing and frame support, and accounting for corrosion or wear over time. Proper labeling and documentation help maintenance teams identify limits and required inspections. Finally, routine field checks of deflection, fastener integrity, and edge condition reduce the likelihood of progressive failures. By addressing these issues up front, engineers improve reliability and safety across all expanded metal mesh installations.

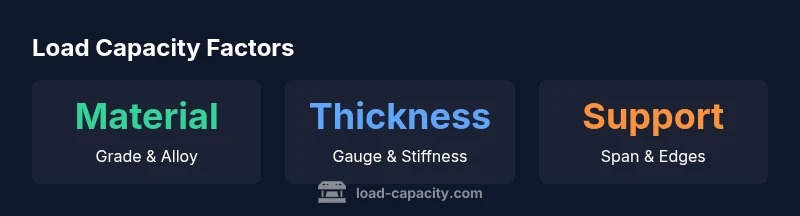

Key influences on expanded metal mesh load capacity
| Parameter | Typical Guidance | Notes |
|---|---|---|
| Material grade | Varies by alloy and temper | Higher grades may enhance strength and durability |
| Mesh thickness (gauge) | Greater thickness generally increases stiffness | Trade-off with weight and cost |
| Cell size | Smaller openings alter load paths | May affect accessibility and airflow |
| Support spacing | Tighter supports raise capacity | Balance with installation practicality |
Quick Answers
What is the expanded metal mesh load capacity?
There is no single universal value. Capacity depends on material, thickness, cell size, orientation, support conditions, and the type of load. Engineers establish a design basis and validate it through testing and analysis.
There’s no universal load capacity; it varies by design. Factors include material, thickness, and how the panel is supported. Always validate with tests.
Which factors most influence load capacity in expanded metal mesh?
Primary factors are material grade, mesh thickness, cell size, and the support scheme. Orientation relative to the loading direction also plays a critical role in how the load is distributed.
The big players are material type, thickness, cell size, and how the panel is supported.
How is load capacity tested for expanded metal mesh?
Testing combines material property tests with panel-level tests under static, dynamic, and impact loads. Results are used to establish allowable loads with a documented design basis.
We test both the material and the panel to understand how it behaves under real loads.
Can I improve load capacity without changing material?
Yes. Increase thickness, add a backing frame, optimize mesh orientation, and ensure proper edge detailing and attachment. These steps distribute loads more effectively and reduce peak stresses.
Yes—thicker mesh, better backing, and proper installation can boost capacity.
What safety considerations should guide usage?
Apply conservative safety factors, verify compatibility with mounting hardware, and conduct periodic inspections for wear, corrosion, or deformation. Document the design basis for audits.
Keep safety factors conservative and inspect regularly.
“"Load capacity is a function of design intent and validation; there is no one-size-fits-all value for expanded metal mesh."”
Top Takeaways
- Design capacity is context-dependent and must be validated.
- Material, thickness, and orientation are the primary controls on strength.
- Edge detailing and backing frames significantly affect load transfer.
- Testing and documentation are essential for safety and longevity.
- Follow a conservative, data-driven workflow for validation.
