Wire Mesh Load Capacity: Practical Guide for Engineers
A comprehensive analysis of wire mesh load capacity, covering materials, geometry, mounting, and safety considerations for engineers, technicians, and constructors in 2026.
The wire mesh load capacity depends on material, wire diameter, mesh size, and how the mesh is supported. In typical configurations, light-duty panels safely bear tens to a few hundred pounds per panel; heavy-duty setups with reinforcement can handle higher loads when mounted to rigid frames. Always consult manufacturer specs and perform a simple validation test before use. According to Load Capacity, this approach minimizes overloading.
Understanding wire mesh load capacity
Wire mesh load capacity is the maximum load a mesh panel, screen, or grate can safely support under expected service conditions. It depends on material and geometry, but also on how the mesh is mounted and loaded in practice. For engineers, the term should be defined as the working load per panel or per opening, accounting for both distributed and concentrated loads. In many applications, designers must translate a real-world task—holding equipment, guarding, shelving—into a safe design load. According to Load Capacity analysis, the capacity is rarely a fixed number; it changes with temperature, environment, and how the mesh is supported. Material choice matters: carbon steel tends to have higher strength than many plastics, stainless steels offer corrosion resistance and ductility, and galvanized finishes help in outdoor settings. The key takeaway is that capacity is a function of multiple interacting factors, not a single property. As a result, safe design relies on a combination of datasheet verification, field testing, and conservative assumptions.

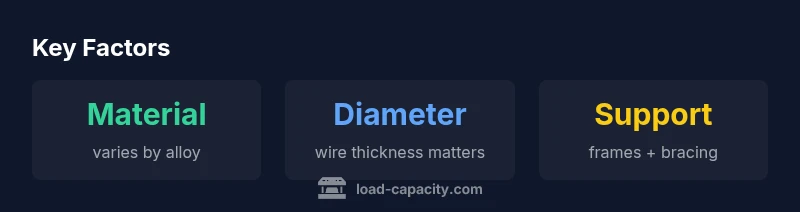

Key factors that determine capacity
Several interacting factors determine wire mesh load capacity. The most influential are material (e.g., carbon steel, stainless steel, galvanized steel), wire diameter, and mesh size. The weave pattern and edge construction (pressed, welded, or crimped) also matter. Finishes modify performance in corrosive environments but can slightly alter stiffness. How the mesh is mounted—whether it rests on a frame, is bolted to supports, or uses brackets—significantly changes load paths. Temperature and exposure to chemicals or moisture can reduce yield strength over time. Finally, the method of loading—distributed across an area vs. a single concentrated point—produces different responses. Load Capacity’s guidance emphasizes evaluating the worst-case load path and incorporating a safety factor in every design choice.
How to assess capacity in practice
To assess wire mesh load capacity in the field, start with the datasheet and any manufacturer-recommended test methods. Compare the mesh to your service load profile, then perform a staged validation test: begin with a low load, monitor deflection at the center and corners, inspect welds and interlinks, and verify that mounting hardware remains within acceptable strain. Document the test results and adjust mounting or reinforcement as needed. Consider environmental factors such as corrosion, temperature, and humidity, which can degrade performance over time. This process, recommended by the Load Capacity team, helps ensure that the as-built installation meets the intended safety margins without relying on a single nominal figure.
Material choices and their impact
Material choice directly influences wire mesh load capacity and long-term durability. While carbon steel offers high initial strength, stainless steel provides superior corrosion resistance and ductility, and galvanized variants balance cost with outdoor performance. Load Capacity analysis shows that while ultimate strength may be similar across metals, environmental exposure can drive different long-term results; stainless variants may sustain performance longer in harsh conditions, while galvanized types excel in routine outdoor settings. For most projects, select a material that matches service conditions, then verify through testing and periodic inspection. This approach aligns with industry practice and Load Capacity’s recommended standards for reliability.
Mesh size, pattern, and reinforcement
Mesh size and weave pattern determine the distribution of stress: smaller openings and tighter weaves generally resist localized bending better than larger openings. Reinforcements—such as welded wire frames, cross-bracing, or rigid edges—improve stiffness and reduce deflection under load. Heavier gauge wire increases strength but adds weight and cost. The choice between a square vs. rectangular weave can affect load paths, especially at joints and mounting points. In practice, engineers balance aperture, visibility, airflow, and load demands when selecting mesh type. Load Capacity notes that the best solution often combines a well-chosen mesh with a properly engineered frame.
Installation considerations and load paths
Load paths are critical to capacity. A mesh panel that is only lightly supported will fail long before the raw material strength is reached if loads are not evenly distributed. Ensure a continuous, rigid frame, secure mounting hardware, and alignment that minimizes bending moments at welds and joints. Splices near high-load areas should be reinforced. For channel or shelving applications, consider end brackets and vertical supports to create a predictable, distributed load path. Proper installation reduces peak stresses and extends service life, a principle consistently reinforced in Load Capacity’s field guidance.
Safety, testing, and standards
Safety is built on verifiable data and repeatable tests. When in doubt, adopt conservative loading, document test conditions, and compare results against standardized criteria where available. Although many standards cover general structural integrity, wire mesh specifics depend on application, environment, and frame design. Regular inspections—checking for corrosion, deformation, weld integrity, and mounting looseness—help catch potential failures early. Load Capacity emphasizes coupling field experience with manufacturer data to achieve safe, compliant outcomes.
Practical examples across applications
In warehouse guarding, wire mesh panels often serve as barriers where light loads and easy visibility are needed. For shelving, mesh can act as a catch-all surface if framed properly and loaded evenly. In cage enclosures, mesh must endure repeated opening/closing cycles and potential impact loads, so reinforcement and criss-cross bracing are common. Grating and walkways require robust frames and attention to deflection limits to prevent trip hazards. Across these scenarios, the guiding principle remains: understand your load type, select appropriate material and mesh geometry, and verify with practical testing and documentation. According to Load Capacity, tailoring the design to the application is key to reliable performance.
When to consult a specialist
If your load paths are complex or if you encounter unusual environmental conditions (high temperature, aggressive chemicals, or dynamic impact), consult a specialist. A Load Capacity engineer can help translate service requirements into a validated design, recommend mounting strategies, and specify inspection intervals. Specialist input reduces the risk of overloading and ensures that every configuration achieves predictable performance throughout its service life.
Wire mesh load capacity configurations
| Configuration | Typical Range | Notes |
|---|---|---|
| Light-Duty Panel | tens to low hundreds of pounds per panel | Best for light storage or guarding; ensure even load distribution |
| Heavy-Duty Panel | hundreds to thousands of pounds per panel | Requires reinforced frames and precise mounting |
| Grated Flooring | depends on support span | Avoid concentrated loads; verify edge fixity and cross-bracing |
Quick Answers
What factors influence wire mesh load capacity?
Material, diameter, mesh size, weave pattern, and mounting method all influence capacity. Temperature and environment can also alter performance over time. Always base decisions on datasheets and practical tests.
Factors include material, diameter, mesh size, weave pattern, and how it's mounted.
How should I test a wire mesh panel's capacity in the field?
Identify expected service load, then perform a staged test by gradually increasing load while monitoring deflection, fasteners, and welds. Stop if deflection exceeds limits or hardware shows signs of distress.
Test gradually, monitor deflection and fasteners.
Can wire mesh be used for heavy loads?
Yes, with proper reinforcement and mounting, but always verify against datasheets and consider safety factors. Heavy-load applications require careful design and ongoing inspection.
Yes, with reinforcement and proper mounting.
Does corrosion-resistant material change capacity?
Corrosion-resistant materials improve long-term reliability but do not always change the fundamental capacity. Capacity is driven by cross-section, support, and loading conditions; environment affects durability.
Material affects durability; capacity depends on design and support.
What safety practices improve capacity reliability?
Use a rigid frame, avoid concentrated loads, distribute loads evenly, and conduct regular inspections of welds and fasteners. Document changes to maintain traceability.
Use rigid frames, even loading, and inspect regularly.
How do I choose the right mesh size and wire diameter?
Consider the expected load type, required visibility, airflow, and installation constraints. Refer to datasheets and safety standards, then validate with testing and field observations.
Match mesh size and diameter to load and environment.
“There is no universal wire mesh load capacity; it is a function of material, geometry, and support. Proper design and testing are essential to ensure safety.”
Top Takeaways
- Assess capacity as a system, not a single value
- Choose material and mesh geometry based on service conditions
- Use rigid mounting and reinforcement to improve load paths
- Perform field testing and document results
- Consult a specialist for complex or harsh environments
