Base Jack Load Capacity: Safe Loading Guidelines
Learn how to assess base jack load capacity, apply safety margins, and calculate safe lifting limits for workshop and field use. Practical, engineer-focused guidance from Load Capacity.
According to Load Capacity, base jack load capacity is the maximum weight a base jack can safely bear, including platform load, dynamic forces, and setup effects. For engineers and technicians, the guideline is to always use a margin above the expected load, verify the jack’s rated capacity, and account for surface and misalignment. Conservative planning is essential.
Understanding base jack load capacity
Base jack load capacity is a fundamental parameter for safe lifting and stability. The specification typically defines a load rating under ideal conditions: level surface, no misalignment, and proper engagement. In practice, you must interpret ratings as ranges depending on the jack design, base dimensions, and mounting method. This section explains how to read ratings, what constitutes a 'safe load', and how to translate rating into actionable limits on the shop floor or in the field. We’ll cover definitions of rated load, working load, and operating limits, and we’ll tie these concepts to common equipment used by engineers and technicians. Remember that the word capacity describes the maximum that should not be exceeded, and actual safe loads are often lower due to site conditions.
How ratings are defined and tested
Ratings for base jacks are typically established through a combination of static and dynamic tests, with safety factors applied to account for real-world conditions. A static test may load the jack to its stated rating on a level surface, while a dynamic test introduces movement, misalignment, and impact to simulate field use. Standards from engineering bodies emphasize conservative margins and repeatable procedures rather than single-point numbers. When selecting a jack, compare the rated load to your anticipated service weight, then validate that the level of margin is appropriate for your risk profile. The exact tests and margins vary by design, but the principle remains: ratings are anchors, not guarantees in every scenario.
Methods for calculating safe loads in real-world scenarios
To determine a safe load on a base jack, start by identifying the primary weight to be supported, including the component's own weight and any attached equipment. Next, account for dynamic effects such as starting, stopping, and vibration. Assess the surface: is it level, firm, and clean? If not, you must reduce the working load or add spacers and a larger footprint. Apply a suitable safety factor (commonly 1.5x to 2x in many shops) based on the risk assessment, then compare the resulting value to the jack’s rated capacity. Document the calculation steps for traceability and future audits.
Impact of surface, height, and misalignment
Uneven or soft surfaces dramatically reduce effective capacity. A jack on soft dirt or a slick surface can slip or tilt, concentrating load on a single corner and causing tipping. Height and leverage change the moment distribution, so taller setups may require broader bases and higher-capacity jacks. Misalignment between the load, jack contact points, and base can introduce additional bending and shear stresses. In all cases, ensure the base jack is firmly seated, the load center is aligned with the jack axis, and the base is not loaded at oblique angles.
Practical guidelines and safety margins for maintenance and inspection
Implement routine checks for wear, corrosion, and deformation of both the jack and its base plate. Replace components showing clear signs of stress or cracking. Keep a log of load tests and inspect after any shock event or tip. Use protective pads to reduce surface damage and maintain flat contact surfaces. Where possible, perform periodic safety factor reviews to confirm margins remain appropriate as equipment ages or workloads change.
Common mistakes and troubleshooting tips
Avoid relying on a single rating without verifying surface conditions and load alignment. Do not exceed the stated capacity, even briefly, as dynamic effects can push loads past ratings. If a jack shows unusual movement, cracking, or noticeable deflection, stop work and reassess. Troubleshooting should start with the surface, then the load distribution, and finally the jack condition. Regular training helps workers recognize early signs of capacity degradation.

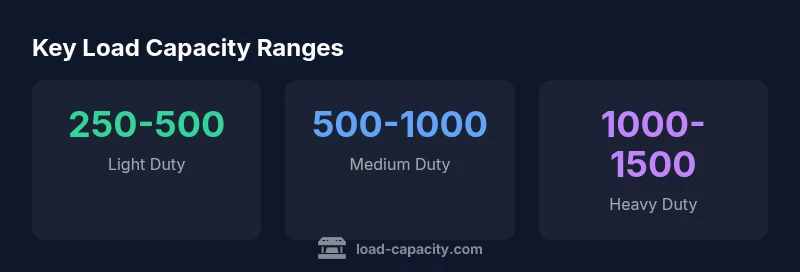

Sample base jack load capacity ranges for common jack types
| Component | Rated Load (kg) | Notes |
|---|---|---|
| Base jack A | 250-500 | Light duty, portable |
| Base jack B | 500-1000 | Medium duty, wider footprint |
| Base jack C | 1000-1500 | Heavy duty, site use |
Quick Answers
What is base jack load capacity?
Base jack load capacity is the maximum safe load a base jack can bear, considering static weight, dynamic forces, and setup conditions. This capacity is a guideline and must be adjusted for real-world factors like surface and misalignment.
Base jack load capacity is the maximum safe load a jack can bear. Always factor in the surface and alignment when planning lifts.
How do I calculate safe load on a base jack?
Identify the total weight to be supported, include dynamic factors, assess surface quality, and apply an appropriate safety margin. Compare the result to the jack’s rating and ensure alignment before lifting.
First add up the weight, consider movement, check the surface, apply a margin, and compare with the rating.
Should I always use a safety margin above the rating?
Yes. A safety margin accounts for unforeseen dynamics, surface irregularities, and potential wear. The margin should be based on risk assessment and operator training.
Always use a safety margin; it reduces risk from real-world factors.
What happens if loads exceed base jack capacity?
Overloading can cause deformation, tipping, or catastrophic failure. Always halt operations and reassess the setup if you suspect the load approaches or exceeds the rating.
Exceeding capacity can cause failure—stop and reassess immediately.
How does wear affect capacity over time?
Wear reduces stiffness and integrity, lowering effective capacity. Regular inspection helps detect corrosion, cracking, or deformation that warrants maintenance or replacement.
Wear lowers capacity; inspect regularly and replace worn parts.
“Effective load planning for base jacks hinges on conservative assumptions and verification of ratings under realistic conditions. Regular inspection and margin-based design reduce the risk of failure.”
Top Takeaways
- Always verify the jack rating before use
- Apply a safety margin above the anticipated load
- Check surface levelness and alignment before lifting
- Inspect wear and deformation regularly
- Document load tests for critical operations
