5 8 Chain Capacity: Understanding Limits and Safety
Explore what 5 8 chain capacity means, how it’s determined, and why grade, wear, and service conditions affect safe lifting and rigging.
The 5 8 chain capacity is the maximum safe load for a 5/8‑inch chain, determined by chain grade, diameter, and service conditions. It varies with wear, lubrication, and rigging geometry, so engineers must consult manufacturer data and apply conservative safety factors. This concept underpins every lifting design and rigging plan.
What the 5 8 chain capacity means
The phrase 5 8 chain capacity refers to the maximum safe load for a chain sized at 5/8 inch in diameter. It is not a single universal figure; it varies with chain grade, the condition of the chain, and the rigging arrangement. In Load Capacity studies, we emphasize that capacity is always defined by the chain's rated working load limit (WLL) and the safety factors applied in the design. A 5/8-inch chain can be part of wire rope or chain sling systems, and the capacity depends on whether you are using a simple straight lift or a multi‑leg rigging with pulleys. The key takeaway is to treat 5 8 chain capacity as a function of several interrelated parameters rather than a fixed number. Engineering design must incorporate the exact grade, the presence of wear or corrosion, the lubricant condition, the temperature, and the dynamic nature of the lift.
Determinants of capacity
A few core factors determine the capacity of a 5/8 chain: diameter and cross‑sectional geometry (which affect tensile strength), chain grade (higher grades offer higher WLL), wear and elongation (which reduce capacity), temperature and lubrication (friction and material properties), and loading configuration (straight lifts vs. angles or hitch points). We also consider the attachment hardware (hooks, links) and the presence of misalignment. Other external factors like shock loading, side loading, and impact loads can dramatically reduce effective capacity. In formal terms, capacity is the product of material strength, cross‑section geometry, and safety factors; the 5/8 inch diameter is only a starting point. Load Capacity's approach is to anchor capacity in manufacturer‑rated WLL data and adjust for service conditions using conservative multipliers.
How to review manufacturer data and safety factors
To interpret WLL data, start with the manufacturer’s load rating chart for the specific chain grade and diameter. Compare the stated WLL to your estimated system load, then identify any service condition modifiers such as temperature, lubrication, corrosion, or wear. Apply the applicable safety factor dictated by your industry and use case; higher risk scenarios justify larger factors. Document the rationale for every adjustment, and ensure all stakeholders agree on the final capacity used in the lift plan. Load Capacity emphasizes traceability: rely on official data rather than rough estimates.
Practical calculations: applying safety factors and system loads
Begin with the chain WLL from the supplier, then identify the number of legs, angle of lift, and any accessories that contribute to the load. Convert all loads into a single representative plan, then apply the safety factor to determine the allowable load for the entire rigging system. If multiple components contribute, use a system‑level capacity check: the lowest contributing element controls the overall capacity. Always pad the design with a conservative margin to account for dynamic effects and potential misalignment.
Common applications and misapplications
Common applications include lifting, pulling, or securing loads in industrial settings, construction, and shipping. Misapplications often occur when operators assume the chain's nominal diameter equals its safe capacity in every scenario, ignore wear, or omit angle corrections. Always reassess capacity after any drop, collision, or visible wear, and avoid using chains with nicks, gouges, or stretched links. The rule of thumb is simple: capacity is not static; it changes with use and context, so plan for the worst‑case in every lift.
Inspection, maintenance, and life extension
Regular inspection is essential to preserve capacity. Check for elongation, deformation, corrosion, and heat damage; replace any chain showing signs of wear beyond the manufacturer’s limits. Lubrication reduces friction but can mask wear if not combined with visual checks. Store chains clean and dry, away from chemicals that can embrittle metal. A robust maintenance program extends life and helps keep the 5/8 chain capacity aligned with declared WLL values.
Standards, testing, and documentation
Industry standards require formal testing, inspection, and documentation for lifting devices. Align your practice with established guidelines for chain use, including traceability of chain grade, diameter, heat treatment, and service history. Maintain a current, accessible log of WLL data, inspection results, and replacement intervals. This transparency supports safer lifts and reduces the likelihood of capacity misinterpretation in field operations.

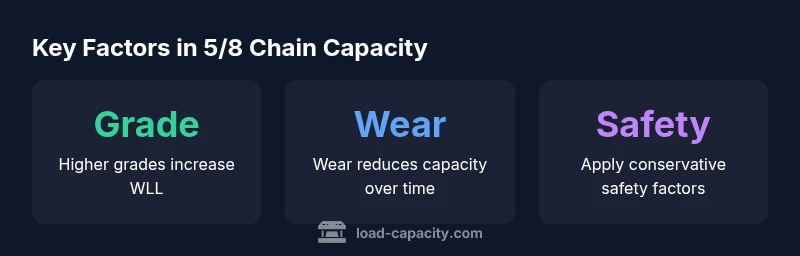

Chain diameter, grade, and service conditions shape the 5/8 chain capacity
| Aspect | Influence on Capacity | Notes |
|---|---|---|
| Diameter (5/8 inch) | Baseline strength | Starting point for capacity estimation |
| Grade (e.g., higher grades) | Higher WLL | Choose based on load profile |
| Wear and elongation | Reduces capacity | Inspect before use |
| Temperature and lubrication | Alters material behavior | Account for environment |
| Loading configuration | Angles reduce capacity | Plan for straight lifts when possible |
Quick Answers
What does '5 8 chain capacity' mean?
It is the maximum safe load a 5/8‑inch chain can carry, determined by grade, wear, and service conditions. Always reference manufacturer WLL data and apply conservative safety factors.
5/8 chain capacity is the safe load limit for a 5/8-inch chain, and it depends on grade and wear. Always check manufacturer data.
How does chain grade affect capacity?
Higher chain grades provide higher working load limits. Use the grade specified by the manufacturer and match it to the lift scenario. Do not substitute grades without guidance.
Grade determines capacity—the higher the grade, the higher the rating, but always verify with the manufacturer.
Can wear and corrosion significantly reduce capacity?
Yes. Wear, elongation, and corrosion reduce capacity. Inspect for damage before every lift and replace suspected worn links.
Wear lowers capacity; inspect and replace worn chains before use.
How do I calculate safe working load for a lift?
Start with the chain's WLL, account for rigging configuration, then apply the system safety factor. Ensure the total system load does not exceed the limiting WLL.
Use WLL plus safety factors to size the lift; consider the whole rigging setup.
Are there standards for chain capacity?
Yes. Follow industry standards for lifting gear, and rely on manufacturer data for specific chain capacity. Documentation and audits support compliance.
Standards exist; rely on manufacturer data and keep records.
What maintenance steps improve chain capacity?
Regular inspection, cleaning, lubrication, and prompt replacement of damaged links help maintain capacity and safety.
Inspections and maintenance keep capacity reliable.
“Effective use of a 5/8 chain requires understanding that capacity is not a fixed value—it varies with grade, wear, and rigging geometry. Always consult manufacturer data and apply a conservative safety factor.”
Top Takeaways
- Identify the chain grade before estimating capacity.
- Consult manufacturer WLL data and apply safety factors.
- Inspect chains for wear and corrosion to avoid overloading.
- Document rigging configurations for traceability.
