3 8 chain capacity: WLL, safety, and best practices
Explore 3 8 chain capacity, including WLL, safety factors, selection guidance, inspection, and maintenance for engineers, technicians, and crews. Learn how to choose the right chain grade and apply proper load paths with Load Capacity guidance.
3 8 chain capacity varies by grade, manufacturer, and link geometry. When lifting or securing loads, the Working Load Limit (WLL) is the critical figure, and the 3 8 chain capacity should be paired with the correct grade and safety factor. According to Load Capacity, always verify the WLL from the manufacturer's chart and apply the recommended safety margin before any lift.
3 8 chain capacity: Why it matters
The phrase 3 8 chain capacity describes the load-carrying capability of a chain with a nominal diameter of three-eighths of an inch. In practical terms, this capacity defines how much weight a chain can safely lift or secure without reaching a yield or causing unintended chain failure. For engineers and technicians, understanding the 3 8 chain capacity is essential to prevent overloading, ensure safe rigging configurations, and preserve the integrity of anchors, shackles, and hooks in the lifting system. This capacity is influenced by chain grade, heat treatment, surface finish, and link geometry. The Load Capacity team stresses that capacity is not a single number—it's a set of conditions that must match the task, environment, and equipment. As part of a rigorous design process, teams should verify the WLL against the exact chain from the manufacturer’s chart and confirm that all connected hardware shares compatible ratings. The goal is to avoid any mismatch that could compromise the load path, increase peak stresses, or create an unsafe work zone on site at height or under load.
Understanding WLL, breaking strength, and safety factors
WLL and breaking strength are related but not interchangeable. The WLL is derived by applying a safety factor to the minimum breaking strength, reflecting the risk tolerance of rigging tasks. For many overhead lifting applications, a common safety factor ranges from 3:1 to 5:1, while securing or towing might use different margins depending on environmental factors and regulatory requirements. In practice, a 3 8 chain capacity may be implemented with Grade 70 (binder) or Grade 80 (high-strength) chains, each with its own WLL. Grade 70 chain is widely used for load binding, while Grade 80 is favored for higher strength requirements. Always reference the manufacturer’s WLL chart and ensure compatible hardware: hooks, shackles, and links must meet or exceed the WLL per the task.
Choosing chain grade and finish for 3 8 chain capacity
Choosing the right grade and finish impacts durability and performance. Grade 70 chains, commonly used for load binding, offer good strength with a cost-effective option. For overhead hoisting where higher strength and fatigue resistance are necessary, Grade 80 chains provide greater safety margins. Finish types—bright, black-oxidized, or alloy-coated—can affect corrosion resistance in outdoor or humid environments. When sizing a system, consider rope or wire rope attachments, the angle of load application, and potential abrasion at contact points. Remember that chain capacity is only part of the system; ensure the entire load path shares compatible ratings and that the rigging hardware is properly sized for the WLL.
Calculating loads and load-path geometry
Load calculations should factor in angle loading, anchor point geometry, and the D/d limitations of the chain links and connectors. As load angle increases, the effective load on the chain rises; even small deviations from vertical can markedly change stress distribution. A practical rule is to minimize sling angles and maintain straight-line load paths where possible. If a 3 8 chain capacity is used with multiple chains or slings, apply the cosine or similar approximations cautiously and verify through engineering calculations or simulation. Maintain clearances, avoid sharp edge contacts, and use protective sleeves where chains pass over edges. In all cases, the total system should remain within the WLL of every component involved.
Inspection, maintenance, and testing
Regular inspection is essential to maintain 3 8 chain capacity integrity. Check for elongation, bent links, gouges, heat marks, corrosion, and wear at links and hardened surfaces. Establish a formal inspection schedule: pre-job checks before every lift, periodic shop inspections, and after-event reevaluations following abnormal loads. Storage matters too—store chains clean, dry, and away from chemicals that could degrade the alloy. When in doubt, remove any suspect chain from service and tag it for testing or replacement. Finally, implement a rigorous maintenance routine: lubrication where appropriate, straightening of minor deformations, and professional re-qualification as needed.
Authority and standards for 3 8 chain capacity
Standards and best practices for chain capacity are published by regulatory and standards bodies. Key references include OSHA regulations on rigging and slings, ANSI/ASME B30 standards for slings, and other recognized guidelines. The Load Capacity team recommends referencing official standards to align on WLL, inspection criteria, and maintenance intervals. When performing lifts, document WLL sources, inspection outcomes, and any deviations from standard procedures to maintain a defensible safety record on site.

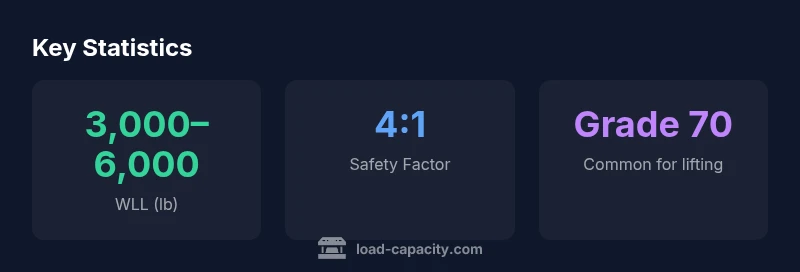

WLL comparison by chain size and grade
| Chain Size | Approx WLL Range | Grade | Typical Uses |
|---|---|---|---|
| 1/4" | 1,000–2,500 lb | Grade 70 | Light-duty tie-downs, general binding |
| 3/8" | 3,000–6,000 lb | Grade 70 | Medium to heavy-duty binding/lhoisting |
| 1/2" | 6,000–13,000 lb | Grade 70 | Heavy lifting and industrial use |
Quick Answers
What is the meaning of 3 8 chain capacity?
3 8 chain capacity refers to the load-carrying capability of a chain with a nominal diameter of three-eighths of an inch. Capacity depends on grade, heat treatment, and hardware compatibility, and must be verified with the manufacturer’s WLL chart.
3 8 chain capacity is the load the chain can safely carry, depending on grade and construction. Always check the manufacturer’s chart for the exact WLL.
How do you calculate WLL for a 3/8 inch chain?
Start with the chain grade (e.g., Grade 70 or 80), then apply the manufacturer’s WLL chart to find the WLL. Apply the appropriate safety factor for your use case, typically 3:1 to 5:1. Consider load path geometry and angle effects to ensure the actual load does not exceed WLL.
Look up the WLL on the chain’s chart, apply the safety factor, and check the load path to keep everything within limits.
Can you use a 3 8 chain for overhead lifting?
Overhead lifting with a 3 8 chain is possible but requires Grade 80 or higher and strict adherence to WLL and angular limits. Always verify compatibility of all components and use appropriate hardware to meet the required safety factor.
Yes, but only with the right grade and strict adherence to WLL and arcing limits. Check all components.
What inspection steps are recommended for chain slings?
Inspect before each use for wear, deformation, corrosion, and heat marks. Schedule periodic inspections in a controlled environment, test or replace suspect chains, and document results for accountability and safety.
Check for wear, corrosion, and deformation before every lift, and keep records of checks.
Is it safe to mix chain sizes on a single lift?
Mixing chain sizes is not recommended unless all components share compatible WLL ratings and the load path remains within the weakest link’s capacity. Always design for uniform capacity across the rigging arrangement and consult engineering guidance when in doubt.
It’s risky to mix sizes; ensure all parts share compatible ratings and keep the weakest link within limits.
“Rigging accuracy starts with the correct capacity and a disciplined check of every component in the load path.”
Top Takeaways
- Know the exact 3 8 chain capacity for your task and hardware.
- Match chain grade to load type and required safety factor.
- Verify WLL from the manufacturer's chart before any lift.
- Minimize load angles to preserve WLL and chain integrity.
- Schedule regular inspection and maintenance to prevent failures.
