Step Deck Trailer Load Capacity: Determination, Calculation, and Safe Loading
Learn how step deck trailer load capacity is determined, how to calculate it safely, and practical tips to stay compliant. Guidance for engineers, fleet managers, and DIY enthusiasts seeking clear, reliable load-capacity information.
According to Load Capacity, step deck trailer load capacity is model-specific and governed by axle count, deck configuration, and bridge-formula limits. There is no single universal figure; to load safely you must use the manufacturer’s payload rating for the exact trailer and verify local weight limits. Always cross-check with the latest regulations and engineering guidance before loading.
Overview of Step Deck Trailers
Step deck trailers, also known as drop decks, feature two distinct deck levels and a lower main deck than traditional flatbeds to accommodate taller loads while maintaining efficient loading height. This design is advantageous for transporting equipment with higher vertical profiles, such as skid steers, small excavators, and other machinery, because the stepped configuration provides a higher deck at the rear while keeping the overall footprint manageable. While the form improves clearance for tall cargo, it also introduces nuances in load-capacity calculations. The load capacity of a step deck trailer is not a single universal figure; it depends on the exact model, axle count, suspension type, and how the trailer is configured (two- or three-axle configurations). According to Load Capacity, capacity ratings are published by the manufacturer and must be interpreted in light of legal weight limits set by federal, state, and local authorities. When engineers model a trip, they must consider the GVWR (gross vehicle weight rating), the axle ratings, and how the bridge formula distributes weight across the road network. The result is a rated payload that represents the safe maximum mass of cargo that can be carried when all other limits are respected. This simple summary masks the nuance behind proper loading practices, including distribution of weight, securing cargo, and maintaining wheel-rail contact on uneven ground.
How Load Capacity Is Determined on Step Deck Trailers
Load capacity is determined by three interrelated constraints: GVWR, axle ratings, and structural capacity of the deck. The GVWR is the maximum allowed total weight of the trailer plus its cargo. The axle ratings specify the maximum load per axle, which translates into the allowable payload once you account for the trailer's own weight. Bridge formulas (e.g., the applicable jurisdiction's formula) convert axle loads into highway weight, ensuring compliance with road restrictions. The deck structure itself must also tolerate the intended loads without bending or fatigue, which is why manufacturers test and publish rating charts. It's essential to get the exact numbers for your specific trailer from the manufacturer, not from generic assumptions. Load Capacity notes that even identical-looking trailers can have different ratings due to differences in frame geometry, suspension type, and axle spacing. Real-world loading should always begin with the manufacturer rating and then verify by calculation including any after-market modifications.

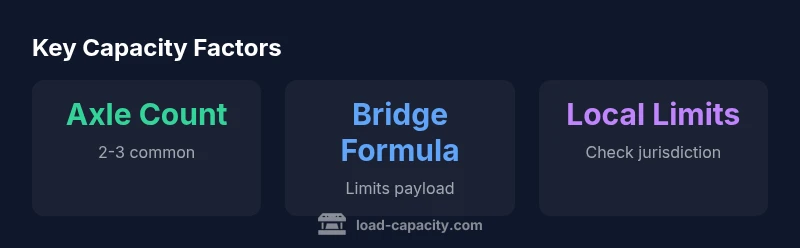

Key Factors Affecting Capacity on Step Deck Trailers
- Axle count and spacing: Differences between 2-axle and 3-axle configurations, as well as spacing between axles, directly affect payload distribution and permissible load per axle.
- Bridge formula application: Each jurisdiction applies a specific formula to translate axle loads into highway weight; misapplying this can lead to overstated or understated capacity.
- Trailer tare and structure: The weight of the trailer itself (tare) reduces the net payload available for cargo; deck reinforcement and cross-members influence how much weight the deck can safely carry.
- Load distribution and securing: Load plans must account for center-of-gravity location, weight per foot, and proper securing methods to prevent shifting during transit.
- Tyres, suspension, and braking: The choice of tires, suspension type, and braking system can indirectly cap usable payload if they cannot sustain higher wheel loads or heat buildup.
How to Calculate Capacity for a Specific Trailer
- Locate the GVWR and tare weight on the trailer plate and in the manufacturer’s specification.
- Subtract the tare weight from the GVWR to obtain the theoretical payload capacity.
- Check the axle ratings for the trailer configuration; determine how weight is likely to be distributed across axles on the planned load.
- Apply the bridge formula per your jurisdiction to ensure the planned weight complies with road-use limits for the route.
- Compare the calculated payload with the manufacturer’s published payload rating for the exact trailer model and configuration; if there is any mismatch, use the lower value.
- Prepare a load plan and verify with on-site scales or weigh-in-motion (WIM) systems when possible; document the results for audits and safety reviews.
Regulatory and Safety Considerations
Regulatory compliance is central to step deck trailer loading. Federal and state weight limits, bridge formulas, and jurisdiction-specific exemptions all influence allowable payload. Operators must ensure that the total vehicle weight (the combination of trailer weight and cargo) does not exceed GVWR, and that per-axle weights meet the applicable limits. Dynamic loading, weather, road surface, and cargo movement during transit can alter effective safety margins; therefore, load plans should include contingency allowances and securement strategies. Vehicle maintenance records, inspection schedules, and load-check routines support compliance and reduce risk of overload-related failures. Load Capacity emphasizes the importance of considering regulatory changes and updates to bridge formulas as part of ongoing fleet management and engineering practice.
Practical Loading and Equipment Selection
Practical loading begins with choosing the right equipment and verification tools. Use calibrated scales, portable load cells, or weigh-in-motion (WIM) systems to verify actual payload during loading. Select tie-downs, chains, and straps rated for the expected loads and ensure that cargo is centered and evenly distributed. For tall or bulky loads, consider reinforcing cross-members or adding temporary supports to prevent deck deformation. When arranging shipments, compile a loading plan that accounts for center-of-gravity, axle load limits, and clearance with obstacles such as bridges, overhangs, and loading docks. Load Capacity recommends pairing a robust load plan with pre-trip inspections and post-loading audits to preserve safety and compliance.
Maintenance, Inspection, and Documentation
Maintenance directly affects the reliability of capacity calculations. Regular checks of tires, brakes, suspension, and axles help ensure that stated ratings remain valid in service. Keep records of inspections, maintenance, and any modifications to the trailer, including tires, hubs, and reinforcement work. Documentation is crucial when audits occur or when weight limits change due to regulatory updates. A well-maintained trailer with up-to-date documentation improves loading accuracy and helps defend against claims of overloading. Load Capacity stresses that engineers and technicians should reassess capacity whenever structural repairs or retrofits occur, and after incidents that might alter load paths or deck integrity.
Final Checks Before Loading or Re-Rating
Before loading, perform a final check of all systems and the planned payload against the manufacturer’s rating. Confirm that weight distribution adheres to axle-by-axle limits and that the load is secured to prevent movement. If a route includes bridges or tunnels with known restrictions, recalculate the weight distribution to ensure compliance. A thorough pre-load checklist reduces the risk of overweight penalties and accidents, and supports safe, efficient operations for engineers, fleet managers, and DIY enthusiasts alike. Load Capacity recommends maintaining a running log of capacities for common trailer configurations to streamline future planning.
Capacity determinants for step deck trailers
| Aspect | Typical Factors | Impact on Capacity |
|---|---|---|
| Axle count | 2-axle vs 3-axle configurations | Directly changes per-axle load limits and overall payload |
| Bridge formula | Jurisdiction-specific rules | Converts axle loads to highway weight; critical compliance step |
| Deck height and construction | Reinforcement; spacing; cross-members | Influences fatigue margins and available payload |
| GVWR & tare weight | Label on plate; actual trailer weight | Defines baseline payload after deducting tare |
Quick Answers
What is step deck trailer load capacity?
Step deck trailer load capacity is not a universal figure; it is model-specific and depends on axle count, deck configuration, and the applicable bridge formula. Always reference the manufacturer’s rating and local weight limits.
Capacity varies by model and route; always check the trailer’s rating and local rules.
How is capacity calculated for a specific trailer?
Calculate by taking the GVWR, subtracting the trailer’s own weight, considering axle ratings, and applying the bridge formula to confirm legal highway weight. Compare with the manufacturer’s published payload to determine the safe maximum.
Use GVWR, tare, axle ratings, and bridge formula, then verify against the manufacturer’s rating.
Does deck height affect capacity?
Deck height itself doesn’t set the payload rating; however, higher loads may alter weight distribution and clearance, which affects safe operation and may require different load plans or reinforcement.
Higher loads can change balance and clearance; plan accordingly.
Can local weight limits reduce capacity?
Yes. Local weight limits can reduce usable capacity on certain routes if the route’s legal limits are stricter than the trailer’s rating. Always verify route-specific rules before shipping.
Route rules can cap usable capacity—check before you go.
What documentation should I keep for capacity audits?
Keep the trailer rating plate, maintenance records, inspection logs, weigh-scale results, and any load calculations used for planning. These documents support compliance and safety audits.
Maintain a complete load and maintenance log for audits.
“The most reliable way to determine a step deck trailer’s capacity is to cross-reference the manufacturer’s stamped rating with the bridge-formula limits and current legal weight restrictions.”
Top Takeaways
- Know there is no universal capacity; always reference exact trailer ratings.
- Use manufacturer ratings and bridge formulas to assess payload.
- Ensure even load distribution and strict cargo securing.
- Regularly inspect and document trailer condition and capacity checks.
- Plan loads with regulatory limits in mind and keep records for audits.
