where is the load capacity of a powered industrial truck displayed
Learn where the capacity plate on powered industrial trucks is displayed, what data it contains, and practical steps to read it to prevent overloads in daily operations.
The load capacity of a powered industrial truck is shown on its capacity plate, also called a data plate or nameplate. This plate, usually mounted on the counterweight, mast base, or operator area, lists the rated capacity in pounds at the standard load center and may note the maximum lift height and any attachments. Always verify this plate before lifting to ensure safe operations.
where is the load capacity of a powered industrial truck displayed
According to Load Capacity, the data plate is the definitive reference for a truck's safe lifting limits. The question 'where is the load capacity of a powered industrial truck displayed' is answered by locating the capacity plate, typically mounted on the counterweight or at the base of the mast. This plate is a standardized label that communicates the machine's rated capacity in pounds at the standard load center, along with any relevant cautions about attachments or load conditions. On many newer models, the plate is also available in digital form on a nearby display or integrated into the operator's instrument cluster. Before any lift, operators should verify the plate, read the rated capacity, and compare it with the actual load and the chosen load center. This practice reduces the risk of overload, tip-overs, and equipment damage. Load Capacity's team emphasizes consistency between plate data and operating procedures as a core safety habit.

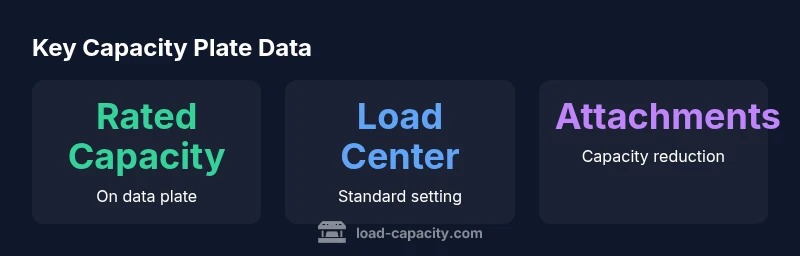

What information is shown on the capacity plate?
Most capacity plates list the rated capacity in pounds, the standard load center distance, and the maximum lift height for the forks. They may also show the type of tires, mast type, date of manufacture, and the presence of any attachments. Some models include a separate line for limits under a specified load center or for dual-condition operation. The key point is that the plate communicates the safe lifting limit for the baseline configuration; any change, including adding forks or attachments, typically requires updating the capacity rating on the plate or consulting the manufacturer’s guidance. The plate’s data must be read in conjunction with the operator's manual and the forklift’s safety decals. This information is fundamental to safe operation and helps ensure compliance with occupational safety standards.
How to read and verify capacity under real-world conditions
- Locate the capacity plate on the truck and read the numbers first. 2) Note the rated capacity and the specified load center. 3) Check your load’s mass and confirm it does not exceed the plate’s rating at the stated load center. 4) If you are using any attachments (extended forks, clamps, etc.), verify whether the plate shows a reduced rating for those configurations. 5) Consider dynamic factors such as acceleration, turning, and uneven surfaces, which can affect effective capacity. 6) Always cross-check with the operator’s manual for any site-specific guidance. 7) Document the reading and verify it with a supervisor if there is any doubt. 8) Use a formal lift plan for high-risk lifts and re-check the plate after maintenance or repairs.
Effects of attachments and forks on capacity
Attachments and fork configurations change the leverage of the load and can reduce the effective capacity shown on the plate. For example, a long fork or a fork-positioner can shift the center of gravity and reduce stability margins. The plate may specify reduced capacity when specific attachments are installed. Operators should not assume the standard rating applies to all configurations. When in doubt, consult the manufacturer’s guidance and avoid improvisation that could create tipping risks.
Differences across truck types and configurations
Different powered industrial trucks—electric vs internal combustion, narrow-aisle versus standard, or rough-terrain variants—may have distinct data plate layouts. While the core data (rated capacity and load center) remains constant, the plate location, units, and accompanying symbols can vary. Training should cover model-specific examples so operators recognize where to read the plate on their particular truck. This helps ensure consistency across a fleet and reduces accidental overloads when crews switch between equipment types.
Reading, maintenance, and record-keeping for capacity data
Capacity data should be part of a routine maintenance and safety-check process. Regularly inspect the plate for legibility and verify that the data matches the current configuration. Record changes when forks, attachments, or mast options are altered, and ensure that any modifications are reflected on the plate or in official documentation. A simple check before each shift—reading the plate and confirming the load aligns with the stated limits—builds a safety culture and reduces incident risk. Documentation supports audits and training efforts by showing that capacity data was consulted and applied.
Safety training and compliance considerations
Operators should be trained to read and apply capacity plate information as a core skill. Employers should reinforce the habit of verifying the plate before every lift, maintain up-to-date manuals, and incorporate capacity readings into standard operating procedures and job safety analyses. Compliance with local regulations and national standards helps protect workers and assets. Regular refresher training on capacity plate interpretation improves retention and reduces the likelihood of overload events.
Example data table: capacity data by truck type
| Truck Type | Typical Plate Location | Key Data Shown | Notes |
|---|---|---|---|
| Electric forklift | Counterweight side | Rated capacity; load center; attachments | Often near base of mast, visible from the operator side |
| Internal combustion forklift | Dashboard or operator-side panel | Rated capacity; load center; wheel/tires | Location can vary by model; read in conjunction with manual |
| Rough-terrain forklift | Rear counterweight or mast base | Rated capacity; load center; tires | May differ with terrain and options |
| Pallet stacker | Under handle or side panel | Rated capacity; load center | Compact designs vary by model |
Quick Answers
Where is the capacity plate typically located on powered industrial trucks?
Most trucks place the capacity plate on the counterweight or near the mast base, but some models show it on the operator panel or dashboard. Always locate and read the plate before lifting. If you cannot find it, consult the manual or supervisor.
Most trucks have the capacity plate on the counterweight or near the mast. Always check it before lifting.
What information must the capacity plate show for safe operation?
The plate should indicate the rated capacity, the standard load center, and the maximum related limits. It may also note attachments and other model-specific constraints. Use this data as the baseline for every lift.
The plate shows the safe capacity and load center. Use those numbers for every lift.
Do attachments affect the capacity shown on the plate?
Yes. Attachments such as clamps, rack forks, or stabilizers can change the center of gravity and reduce the effective capacity. The plate may reflect this, or you should consult the manufacturer guidance for the updated rating.
Attachments can lower the safe capacity—check the plate or manufacturer guidance.
What should I do if the capacity plate is unreadable?
Do not operate the lift until the plate is legible or a qualified person confirms the limits from the manual. Report the issue and tag the equipment until repaired.
If the plate is unreadable, don’t lift—get it fixed or refer to the manual.
Is the rating always safe for loads near the maximum when turning or moving?
No. Dynamic factors like turning, accelerating, and uneven surfaces can reduce effective capacity. Plan lifts with smaller incremental weights when in doubt, and use a lift plan.
No—moving and turning can reduce safe capacity; plan carefully.
Do all forklifts display capacity the same way, or does it vary by model?
Plate design and location vary; always locate the plate on your specific model and read it alongside the manual. Fleet training should cover model-specific differences.
Different models vary in where the plate is and what it shows.
“Clear, legible capacity data is the foundation of safe lifting. Operators must verify the rating plate before each lift to ensure the load remains within safe limits.”
Top Takeaways
- Read the capacity plate before every lift
- Attachments typically reduce the listed capacity
- The standard load center is a critical reference point
- Plate location varies by model—consult the manual
- Record and review capacity data when configurations change
