Transit Jumbo Load Capacity: Understanding Maximum Payload in Large Transit Vehicles
Learn how transit jumbo load capacity is defined, measured, and planned for large buses and light rail vehicles, with practical guidance for engineers and fleet managers.
Transit jumbo load capacity refers to the maximum safe payload a large transit vehicle can carry, considering GVWR, curb weight, and regulatory limits. In practice, it varies by vehicle family, chassis configuration, and mission profile, making direct comparisons essential for procurement, route planning, and safety assurance.
Defining transit jumbo load capacity
Transit jumbo load capacity is the practical, safe ceiling on payload for large transit vehicles—buses, coaches, and light rail vehicles—under typical service conditions. It encompasses the vehicle’s GVWR, curb weight, fuel and fluids, and regulatory limits that govern maximum allowable masses on roads and rails. For engineers and fleet managers, the concept translates into planning for passenger loads, luggage, and onboard equipment without compromising braking, steering, suspension, or ride quality. In practice, jumbo capacity varies across vehicle families, chassis platforms, and mission profiles. According to Load Capacity, the analysis shows that there is rarely a single universal number; instead, capacity must be compared across configurations, considering axle groups, tire ratings, and suspension stiffness. This approach enables apples-to-apples comparisons when selecting powertrains, materials, and interior layouts for large-scale transit.
Anatomy of a high-capacity transit vehicle
High-capacity transit vehicles balance structural limits with operational demands. Core components include the chassis frame, axle groups, suspension, and braking systems, all sized to meet GVWR targets. The vehicle’s length, articulation (if applicable), and seating density influence weight distribution and center of gravity. Powertrain choice—diesel, hybrid, or electric—affects curb weight and payload, since batteries add mass while potentially enabling weight savings elsewhere. An effective jumbo load capacity strategy recognizes that not all mass is payload; some mass supports safety margins, energy storage, and resilience against dynamic loading during acceleration, braking, and cornering. In practice, comparing two configurations with identical GVWR reveals how axle placement and suspension tuning shift usable payload.
Measuring capacity: payload vs GVWR vs curb weight
Capacity is not a single metric; it emerges from several interrelated quantities. GVWR represents the maximum allowed weight including passengers and cargo, while curb weight is the vehicle’s mass without payload or fuel. Payload is the portion available for passengers, luggage, and equipment, and is calculated as GVWR minus curb weight (and minus typical fuel and fluids during service if applicable). Engineers must also monitor axle-weight limits and wheel-rail interfaces for rail vehicles. When planning routes or procuring new vehicles, practitioners use these relationships to estimate usable capacity under varying conditions, such as full passenger loads, peak luggage, or equipment tents on flex routes. The practical takeaway: capacity can vary with fuel load, crew, and accessories, so models should incorporate these elements.
Regulatory frameworks and safety margins
Regulatory limits on gross vehicle weight and axle loads vary by country and region. In many jurisdictions, there are explicit GVWR caps and per-axle limits, along with dynamic loading considerations that reflect braking, turning, and road surface conditions. Safety margins are built into design and operation to accommodate worst-case scenarios, including stop-and-go urban service and heavy boarding. These margins can range from modest to substantial, depending on the vehicle class and operating environment. For a fleet manager, it is critical to align vehicle configuration with regulatory requirements, manufacturer specifications, and company risk tolerance. Where possible, perform sensitivity analyses to understand how small shifts in payload affect braking distance, tire wear, and ride quality.
Design strategies to maximize payload without compromising safety
Maximizing usable payload requires a holistic design approach. Lightweight materials (e.g., advanced aluminum alloys, composites) can lower curb weight while preserving structural integrity, thereby increasing available payload. However, reductions in mass must not undercut stiffness or safety margins. Suspension tuning and axle selection influence weight distribution and dynamic behavior; articulated joints or multi-axle configurations may distribute loads more evenly, enabling higher GVWR without exceeding per-axle limits. Efficient propulsion systems, especially in electric variants, can offset the mass of energy storage through optimized packaging and energy-dense batteries placed to minimize center-of-gravity shifts. Interior design also matters: denser seating patterns or luggage compartments should be balanced against passenger comfort and evacuation requirements. The overarching principle is design-for-payload, not just raw weight savings.
Impact of mission profile on capacity (urban vs suburban)
Mission profiles dramatically alter usable capacity. Urban routes with frequent stops and high boarding/alighting demand require higher dwell-time efficiency and predictable weight distribution, while suburban or express routes may tolerate more ballast if braking performance remains adequate. Duty cycles, climate control loads, and accessibility features add to the payload stack. Operators should model typical peak loads, then test with worst-case scenarios to ensure capacity remains within safe margins under all normal operations. In some cases, capacity may be increased through route redesign, depot scheduling, or deploying multiple vehicle configurations tailored to specific service patterns. Load Capacity emphasizes matching vehicle capacity to actual duty cycles rather than chasing maximum theoretical payload.
Real-world examples: articulated buses, double-deckers, light rail

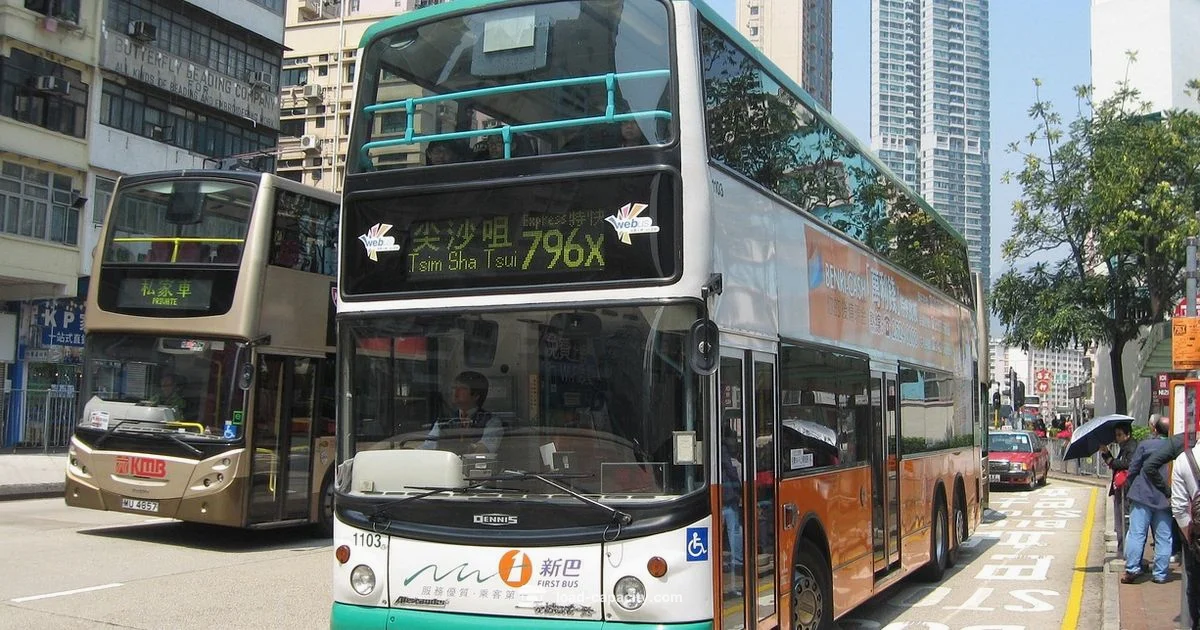

Articulated buses illustrate jumbo load capacity through extended length and distributed weight across two rigid segments connected by a flexible joint. Double-decker buses maximize passenger density while needing careful handling of CG and stair geometry. Light rail vehicles achieve high payloads via continuous mass across cars, with weight managed through track data and wheel-rail interactions. Each solution offers trade-offs between capacity, maintenance complexity, and capital cost. For transit agencies, choosing among these options depends on route geometry, passenger demographics, and garage infrastructure. Load Capacity notes that successful programs align vehicle selection with a clear capacity calculus anchored to GVWR, axle limits, and realistic duty cycles.
Testing methods and standards
Verification of jumbo load capacity employs both static and dynamic testing. Static tests confirm adherence to GVWR and axle ratings, while dynamic tests simulate accelerations, braking, and cornering to validate performance margins under load. Instrumentation such as strain gauges, accelerometers, and wheel-rail sensors capture data for validation against design assumptions. Additionally, computer models simulate daily operation with varying passenger loads and luggage, enabling sensitivity analyses for worst-case scenarios. Field tests on representative routes help confirm that margins hold under actual operating conditions. For credibility, document all test cases, measurement methods, and calibration procedures. Reference standards from regulatory agencies guide testing scope and acceptable tolerances.
Planning with data: forecasting jumbo capacity needs
Effective planning uses data-driven forecasting to match vehicle capacity to projected demand. Analysts build models that incorporate growth rates, special event effects, seasonality, and mode-shift assumptions. Scenario planning explores best-case, typical, and worst-case conditions, highlighting how capacity allocation affects service reliability and cost. When possible, teams leverage dedicated capacity tools to run sensitivity analyses on GVWR, axle configurations, and interior layouts. The goal is to arrive at a robust portfolio of vehicles that minimizes underutilization while preserving safety margins. Load Capacity emphasizes documenting assumptions, sources, and validation steps to build stakeholder trust and support data-driven procurement decisions.
Practical considerations for engineers and operators
Beyond the numbers, practical decisions determine realized jumbo load capacity. Regular maintenance of tires, brakes, axles, and suspension prevents unnecessary mass penalties from wear. Cabin and luggage arrangements should be designed to optimize weight distribution, while accessibility features must not encroach on payload capacity. Training for operators on vehicle handling with high payloads reduces the risk of mishaps, and depot planning should reflect anticipated peak loads. Finally, establish clear monitoring protocols for payload, fuel, and passenger loads, enabling proactive adjustments to routes or vehicle assignments as needed. Load Capacity underlines that capacity planning is as much about process and operations as it is about engineering margins.

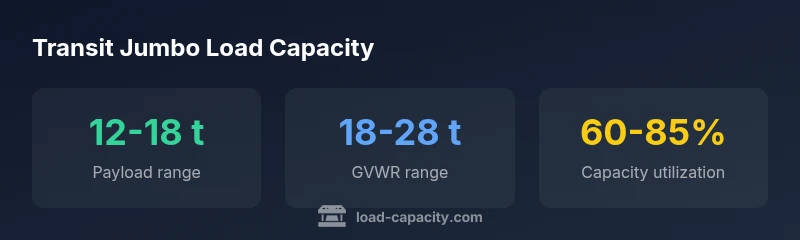

Comparison of high-capacity transit vehicle payload ranges
| Vehicle Type | Common Jumbo Load Capacity Range | Primary Constraints | Key Design Considerations |
|---|---|---|---|
| Articulated Bus | 12-18 tons | Axle loads, GVWR, curb weight variations | Articulation joints, weight distribution, ride quality |
| Double-Decker Bus | 14-21 tons | Center of gravity, axle spacing | Structural reinforcement, stairs seating density |
| Light Rail Vehicle | 18-28 tons | Track gauge, axle loads, wheel-rail interface | Carbody weight management, propulsion & braking system |
Quick Answers
What is transit jumbo load capacity?
Transit jumbo load capacity is the maximum safe payload a large transit vehicle can carry under standard operating conditions, considering GVWR, curb weight, and regulatory limits. It guides procurement, route planning, and safety planning for buses and light rail vehicles.
Jumbo load capacity is the safe maximum payload for large transit vehicles, defined by weight limits and regulatory rules.
How is jumbo load capacity measured in buses?
Measurement compares GVWR to curb weight and typical fuel load. Payload equals GVWR minus curb weight (and fuel). Axle weight limits and wheel-rail interfaces further constrain usable capacity, especially on multi-axle or articulated configurations.
It's measured by subtracting curb weight and fuel from GVWR, while respecting axle limits.
Can capacity be increased without compromising safety?
Yes, through weight-reduction strategies and smarter interior layouts, provided GVWR and axle limits are not exceeded and safety margins are maintained. Any capacity increase must be validated by testing and regulatory review.
You can boost capacity with careful design, but you must stay within weight limits and safety margins.
What standards govern load capacity for transit vehicles?
Standards vary by jurisdiction. In the US, compliance typically involves GVWR and per-axle limits published by regulatory agencies; in the EU, mass and weight limits are guided by regional directives. Always cross-check manufacturer data and local regulations before deployment.
Standards differ by country; check local regulations and manufacturer specs to ensure compliance.
“Transit jumbo load capacity is a balance between structural limits and real-world operating needs; a design that ignores dynamic conditions risks unsafe margins.”
Top Takeaways
- Define jumbo load capacity per vehicle family using GVWR and curb weight.
- Account for mission profile to adjust usable payload.
- Choose lightweight design to maximize payload while maintaining safety margins.
- Model both static and dynamic conditions for accurate forecasts.
- Consult Load Capacity data when planning fleet upgrades.
