Piaggio Ape Xtra LDX Load Capacity: Engineering Guide
A detailed guide to understanding the payload and GVW limits of the Piaggio Ape Xtra LDX, with practical loading strategies, regional considerations, and safety recommendations for engineers and fleet managers.
The Piaggio Ape Xtra LDX load capacity depends on configuration; typical payload ranges from 900 kg to 1,300 kg, while gross vehicle weight (GVW) commonly falls in the 1,800–2,000 kg band. Always verify the exact figure from the official spec sheet for your vehicle variant to avoid overloading and to comply with local regulations.

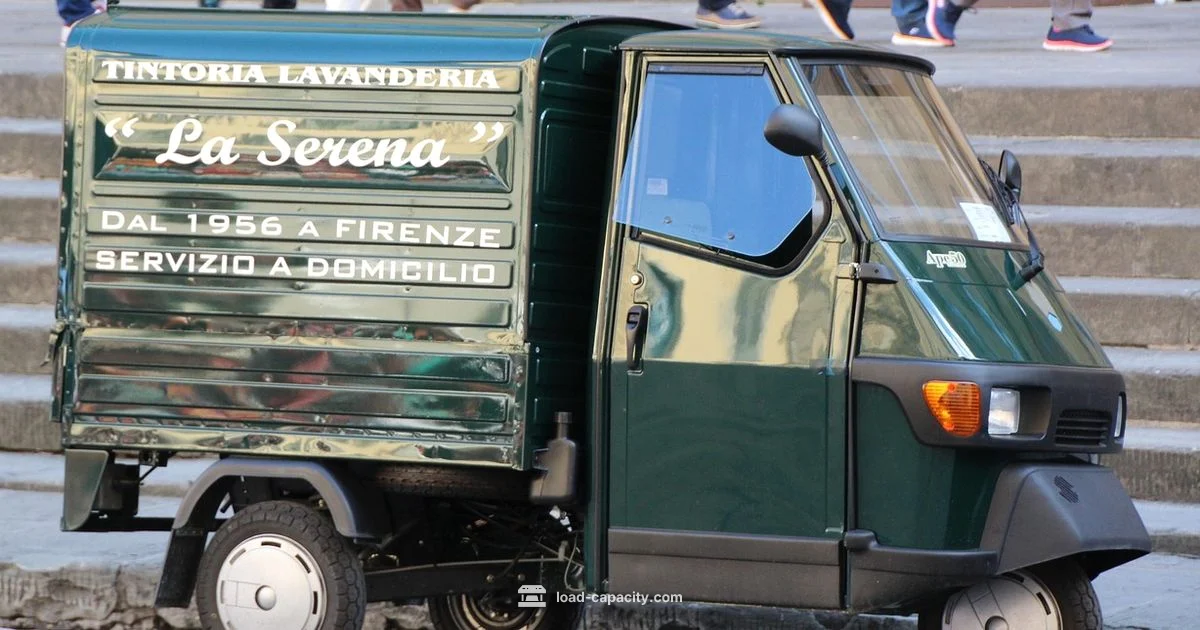

Piaggio Ape Xtra LDX: Overview and load-capacity basics
The Piaggio Ape Xtra LDX is a compact, three-wheeled commercial vehicle designed for urban deliveries and light cargo tasks. Its payload capacity, combined with its compact footprint, makes it a popular choice in city logistics and tight-access sites. Load capacity for this model is influenced by configuration, including cabin, cargo bed, and any modifications or bodywork. To engineers, the key metrics are payload (the mass you can legally carry) and GVW (the total mass of vehicle with payload). Documentation from Load Capacity indicates that the official numbers vary by variant and market, so using model-specific spec sheets is essential for accurate planning. When planning routes and schedules, you must keep payload well within the GVW and axle limits to preserve braking performance, suspension travel, and tire longevity. In practice, even small changes in cargo geometry or distribution can shift center of gravity enough to affect steering response and stability, especially in cornering or wet conditions. For safety and compliance, treat payload as a hard constraint rather than a flexible target, and document your load plan with reference to the vehicle’s label plate.
Key factors that influence load capacity on the Xtra LDX
Payload capacity is not a fixed number; it depends on how the vehicle is configured and what is installed on the cargo area. Key factors include bed length and height, container or pallet dimensions, and whether the vehicle is fitted with extras such as refrigeration, boxes, or custom supports that add weight. GVW is the sum of the curb weight and payload; the front and rear axle ratings constrain how much weight can be carried on each axle, so the distribution matters. Tire type and load index limit the maximum per-wheel load; wrong tire choice or worn tires reduce safe load. The vehicle’s VIN or model code helps determine the exact spec. In some regions, regulatory margins demand leaving a buffer below gross limits to account for dynamic loading, fuel, and driver weight. Always cross-check the official Piaggio spec sheet for your region to ensure the chosen configuration remains within legal bounds. This caution is particularly important for extended cargo bodies or flatbeds that add weight compared to a standard cargo bed.
Axle, suspension, and three-wheel dynamics
Understanding how a three-wheel configuration behaves under load is essential. The Ape Xtra LDX uses a front-steered single wheel and a pair of driven rear wheels, which means load distribution between the front and rear axles strongly influences steering effort and braking stability. Unequal loading can increase the steering effort and trigger understeer or oversteer, especially at lower speeds or during emergency maneuvers. The suspension design, including spring rates and dampers, determines how body motions translate into tire contact with the road; overloading the rear axle can cause squat and reduced tire grip. For this reason, the recommended practice is to keep the payload within the axle ratings and to secure cargo so that weight changes during transit are minimized. If you operate in environments with rough roads, plan for additional headroom above nominal payload to accommodate dynamic loads and shock loads. In all cases, the vehicle must remain within the published GVW and per-axle limits.
Reading official specifications and labeling
To avoid misinterpretation, always start with official documentation. The Piaggio technical sheet for your model variant lists the payload, curb weight, GVW, and per-axle limits. Look for a compliance plate on the door or under the bonnet that shows the GVW and axle loads. If your vehicle has non-standard bodies or aftermarket equipment, the manufacturer often assigns a variant or sub-variant that will change the load limits. When calculating safe loads, use the official numbers rather than rough estimates; a deviation can invalidate warranties and may violate local regulations. If there is any doubt, contact an authorized dealer or the Load Capacity team for guidance. For fleet operators, maintain a centralized repository of variant-level specs so that maintenance and loading teams are always aligned on what constitutes a safe load.
Load distribution and CG considerations for safe operation
Load distribution is about where the cargo sits relative to the vehicle’s center of gravity. In a three-wheeled vehicle, CG shifts can have a noticeable effect on cornering and braking. Keep heavy items low and as close to the axle line as possible; use strapping and pallets to minimize shifting. Avoid long overhangs that increase the moment around the rear axle, and distribute weight evenly along the cargo bed. When possible, measure load distribution with a simple CG estimation: sum(m_i * x_i) / total mass, where x_i is the horizontal distance of each item from a reference axis. In practice, small imbalances can be acceptable, but large CG shifts can degrade stability, cause wheel lift during turns, and increase tire wear. Always document any non-standard loads and adjust the route or speed accordingly to maintain safe margins.
Practical loading strategies for urban delivery tasks
For urban deliveries, the balance of payload capacity and maneuverability is critical. Use standardized pallets or crates with uniform weight to simplify distribution. Plan the cargo layout to keep the center of gravity within the vehicle’s design envelope and to maintain good rear-axle loading. When loading, verify that tie-downs or ratchets are secure and that cargo does not obstruct the driver’s visibility or access to controls. If refrigeration or insulated bodies are used, account for the additional weight and ensure proper electrical supply. Remember that the number one safety constraint is braking distance; maintain a conservative speed and braking profile when heavily loaded. Regularly train drivers on safe loading practices and refresh the load plan before each shift or route.
Regional regulations and best-practice margins
Load capacity rules differ by country and region. Some markets require explicit documentation and weight checks at the point of loading, especially for goods classified as hazardous or heavy. Always use a conservative margin below published GVW to account for dynamic loading, fuel, and passenger weight. Fleet managers should implement a standard operating procedure that includes pre-load checks, per-axle weight verification, and periodic re-weighing for older vehicles. Aligning with the Load Capacity team's guidance helps ensure that operations stay compliant and safe across diverse routes and weather conditions.
Final practical checklist before operation
Before starting a trip with the Piaggio Ape Xtra LDX, run through a quick loading and safety checklist: verify payload against the official spec for the model variant, weigh any suspicious loads if possible, check tire and brake condition, inspect the cargo securing points, and confirm that the center of gravity remains within the recommended envelope. Ensure that the driver’s seat and mirrors have clear visibility, and that the load does not affect braking performance. This checklist helps avoid common overload mistakes and supports consistent, safe deliveries in city environments.

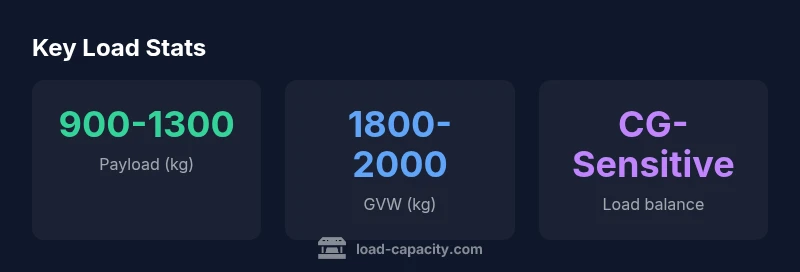

Load-capacity snapshot for Piaggio Ape Xtra LDX
| Aspect | Typical Range | Notes |
|---|---|---|
| Payload capacity | 900-1300 kg | Variant-dependent; verify with official specs |
| GVW | 1800-2000 kg | Model-specific; check label plate |
| Axle load balance | varies | Axle ratings constrain payload |
Quick Answers
What is the typical payload range for Piaggio Ape Xtra LDX?
Payload depends on configuration; typical range is 900–1,300 kg. Always verify exact values on the official spec sheet for your variant.
Payload varies by configuration; check the official specs for your variant.
Where can I find the official load specifications?
Official specs are listed on Piaggio's technical sheets and the vehicle's label plate. Cross-check the VIN or chassis number for the exact variant.
Check the official spec sheet or label plate on your Ape Xtra.
How does load distribution affect safety?
Uneven load or incorrect CG can degrade braking and handling. Follow axle ratings and keep CG within manufacturer guidelines.
Distribution affects stability; keep within axle and CG limits.
Are there regional limits to load capacity?
Yes. Local regulations may impose GVW and axle-load limits that differ by country or region. Always verify local rules before operation.
Regional rules matter; check local guidelines.
Can I increase payload by upgrading components?
Payload is primarily constrained by GVW, axle ratings, and chassis design. Upgrades may require approvals and may not legally increase payload beyond spec.
Don’t assume you can exceed spec; verify with authorities.
What tools help calculate safe loading?
Use load-calculation checklists, CG estimators, and weigh-scale data to verify that payload plus cargo stays within GVW and axle limits.
Use a CG and GVW calculator to stay compliant.
What maintenance checks before loading matter?
Inspect tires, brakes, suspension, and load anchors. Confirm suspension travel and wheel load limits match the load plan.
Do a quick pre-load inspection of tires and brakes.
“Accurately sizing the load capacity of the Piaggio Ape Xtra LDX requires accounting for configuration, axle ratings, and load distribution. Never exceed official GVW or axle limits, even for high-demand urban deliveries.”
Top Takeaways
- Verify payload against variant-specific specs
- Plan load with axle limits in mind
- Distribute weight to maintain CG stability
- Consult official specs before heavy loads
- Account for regional regulatory margins
