Pallet Jack Weight Capacity: A Practical Guide

Understanding pallet jack weight capacity

Pallet jack weight capacity is the maximum safe load a jack can lift and transport without risking fork deformation, hydraulic failure, or tipping. The rating is typically stamped on a data plate attached to the jack, and it applies to evenly distributed loads centered on the forks. When you’re planning a move, always verify the rated capacity against the actual pallet weight and the load distribution. Real-world factors such as pallet quality, load height, and dock surface influence how much of that rating you can safely use. In practice, engineering teams translate these ratings into working procedures that balance speed, efficiency, and risk, avoiding surprises at the dock door. In this guide, we’ll use the term pallet jack weight capacity interchangeably with rated capacity, as both describe the ceiling for safe operation. Load capacity is also influenced by pallet dimensions, fork width, and wheel condition, all of which determine how evenly the load sits on the forks. The science behind these numbers matters for engineers, technicians, and warehouse managers who design material-handling workflows.

How capacity is determined and tested

Manufacturers determine pallet jack capacity through a combination of design calculations and empirical testing. The listed capacity reflects a safe load limit under specific conditions, including pallet dimensions, load distribution, and fork alignment. Tests often include static loading (the load rests on the forks) and dynamic loading (the jack moves the load under standard operating conditions). A factor of safety is applied to account for material variability, wear, and environmental factors like temperature. As part of quality control, data plates capture the rated capacity so operators can quickly check compliance on the shop floor. For engineers, understanding the testing regime helps justify capacity selections for cluttered or high-throughput environments and informs maintenance intervals. It also highlights that actual performance may vary with pallet condition, load center of gravity, and floor friction. In short, capacity is a carefully defined limit, not a target load for daily use.

Reading the data plate and choosing the right jack

To choose the right pallet jack, start with the data plate. Steps for decision-making: 1) locate the data plate on the handle or frame, 2) read the stamped capacity in pounds or kilograms, 3) compare the pallet’s total weight (including packaging) to the rating, 4) consider the load center and how tall the load is being lifted, 5) verify wheel type and floor conditions, since rough or slick floors affect stabilization and tipping risk. If the load approaches the limit, reduce lift height, slow down, and ensure you’re on a level surface. When in doubt, choose a higher-capacity model or a motorized option to add margin and reduce operator strain. Documentation and training reinforce correct reading and application of the data plate.

Typical ranges by category and use-case

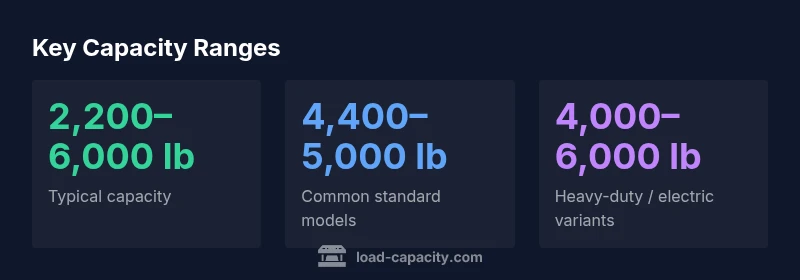

Standard pallet jacks commonly cover a broad range, with many models rated between the low thousands and mid-thousands of pounds. Heavy-duty variants push toward higher capacities for dense pallets or frequent high-volume moves. Electric pallet jacks often fall in the same ballpark as heavy-duty units but may incorporate assistive features that expand practical load handling while preserving maneuverability. The exact capacity depends on the jack’s design, the pallet, and the intended duty cycle. For project planning, present capacity as a range rather than a single value—and ensure the chosen model aligns with the heaviest anticipated pallet in the workflow.

Real-world factors that affect capacity and safety margins

No two lifting scenarios are identical. Damaged or warped pallets can shift the load’s center of gravity and reduce usable capacity. Load height and pallet stacking introduce angular moments that stress the forks differently than a flat, evenly distributed load. Floor conditions, ramp angles, and cornering at speed influence stability and tipping risk. Temperature and hydraulic viscosity can affect lifting performance, especially in unheated environments or when using older equipment. Regularly inspecting forks for bending, cracks, or uneven wear, and checking caster wheels or steer wheels for smooth operation, helps maintain the rated capacity and safety margins. Operators should keep the load as low as practical, advance slowly, and avoid pivoting with heavy weights. When planning work, factor in a conservative buffer to account for variability and wear over time.

Maintenance, inspection, and lifecycle planning

Maintaining pallet jacks is key to preserving weight capacity. Establish a routine that includes visual inspections of forks, frame, and handle, plus functional checks of the hydraulic system and wheels. Replace bent or cracked forks immediately and service the hydraulic cylinder per manufacturer guidance. Clean and lubricate moving parts to minimize friction and wear, and replace worn wheels or bearings that can destabilize the load. Document inspections and track the jack’s operational hours to determine replacement timelines. If a jack frequently operates near its rated capacity, consider a higher-capacity model or a secondary lift to reduce fatigue and improve overall safety. Lifecycle planning should factor in facility growth, seasonal demand, and the availability of spare parts.
