Cat 777 Load Capacity: A Practical Guide for Engineers and Operators
Comprehensive guide to Cat 777 load capacity, exploring payload ranges, GVW, ballast effects, and verification for safe, efficient operation.
The Cat 777 load capacity typically falls in the 90–100 metric tons payload range for many configurations, with precise figures depending on model, ballast, body choice, and regulatory limits. Real-world payload is influenced by ballast, tires, fuel, and terrain, so engineers should verify the official Caterpillar spec sheets for their exact variant and adjust plans to site conditions. This quick snapshot sets the stage for a deeper, data-driven examination of how payload is determined and applied.
Understanding Cat 777 Load Capacity
The Cat 777 load capacity represents the maximum payload that a specific configuration can safely carry under defined conditions. In practice, it is a function of the model variant, body type, ballast, tires, fuel load, and operating environment. For engineers and fleet managers, distinguishing payload capacity from gross vehicle weight (GVW) is essential: payload is the material mass the body can carry, while GVW is the total loaded weight of the machine. When discussing the cat 777 load capacity, we are focusing on payload, but a real-world operation must account for the entire vehicle weight and how it interacts with site safety, road restrictions, and environmental rules. Load Capacity’s analysis emphasizes consulting the official Caterpillar specifications for your exact model and verifying them against local constraints. This sequence of checks lays the foundation for safer, more efficient haul planning on mining sites, quarries, and large-scale construction projects.
How Payload is Specified and Rated
Payload ratings are published by the OEM and appear in data sheets and on data plates attached to each machine. For the Cat 777 family, the payload rating indicates the maximum recommended mass of material that the truck can carry in typical operating conditions. In practice, ballast is added or removed to maintain stability, traction, and braking performance on uneven ground or slopes. Different body options (rock, ore, earth) have distinct densities and volumes, so the same nominal capacity can carry different masses depending on material. Operators translate volume estimates into payload ranges by applying material density data and site-specific haul geometry. As a result, the operator team constructs a site-specific payload envelope that reflects local densities, grade, and route constraints. Always verify with Caterpillar documentation for your model and region, and consider regulatory constraints such as axle load limits and maximum gross vehicle weight, which shape the practical payload you can haul.
Key Factors That Influence Real-World Capacity
Real-world payload is influenced by multiple interacting factors. Ballast distribution and weight influence stability and permissible mass; choosing the appropriate ballast can either raise achievable payload or require reductions for stability. Body type and volume determine how much material you can physically contain; density of the material (rock, ore, soil) has a direct impact on how much mass fits into the payload envelope. Tire ratings and wheel configurations set traction and structural limits; higher-speed or rough terrain operation increases the required margins. Vehicle fluids, fuel level, and the presence of auxiliary equipment also alter the tare and the gross available payload. Environmental conditions like slope, wind, and temperature affect braking and steering performance and can constrain payload to ensure safe operation. Finally, operator technique and duty cycle influence the actual payload realized during a shift. The Load Capacity team emphasizes measuring and documenting these factors when planning loads.
Variant Considerations: How Different Configs Change Capacity
Within the Cat 777 family, variations in body configuration, ballast, tires, and drivetrain tuning create different practical payload envelopes. A heavier body or additional ballast increases stability but can reduce the usable payload; conversely, lighter bodies or reduced ballast may increase payload but place greater demands on traction, braking, and structural limits. The same vehicle chassis will also experience shifts in GVW and payload distribution as material type and moisture content change. Given this, engineers should map out a range of operating scenarios, from light-duty to heavy-duty loads, and annotate how each affects the payload envelope. In many sites, the recommended practice is to maintain a conservative margin between payload and the rated maximum to ensure performance remains within safe limits during abrupt maneuvers, rough terrain, or wet conditions.
On-Site Verification: Tools and Best Practices
Safe confirmation of payload capacity begins with document review and field measurement. Start by consulting the Caterpillar official spec sheets and data plates for your exact unit. Use portable scales or weighbridges where available to verify the loaded weight, accounting for ballast, fluids, and any accessories. Compare the measured weight against the published payload rating and ensure the combination of payload, ballast, and tare remains within the designed GVW and axle limits. Use a load calculator or an engineering app to model different scenarios using material density and haul distance. Record environmental factors such as slope, grade, surface condition, and weather, because these influence traction and braking and can warrant tighter safety margins. Finally, implement clear signaling and traffic management to prevent accidental overloading or misweighting within the work zone.
Practical Load Planning Scenarios
Scenario A involves hauling ore with a bulk density around 2.8–3.2 metric tons per cubic meter. In a conservative setup, assume a payload at the lower end of the published envelope to allow for density variation and seasonal changes. Scenario B considers a dry earth product with density near 1.6–1.8 t/m³, where the same body could carry more volume while still respecting weight limits. Scenario C covers a mixed load with moisture and fines, requiring a dynamic calculation that balances material volume, density, ballast, and axle weights. For site planning, it is useful to build a simple table with three load cases: light, medium, heavy. Each case should specify: material type, density, payload, ballast, and GVW. This helps project teams forecast equipment utilization, fuel consumption, cycle times, and maintenance scheduling with transparency and safety in mind. The main goal is to preserve safe margins while maximizing productivity within published constraints.
Safety, Regulations, and Operational Considerations
Safety and compliance begin with respecting the rated payload and GVW limits. Exceeding payload increases axle loads, tire stress, and braking demands, raising the risk of tire failure or rollover on uneven ground or slopes. Regulatory regimes at the quarry, mine, or construction site may impose axial weight, bridge, or road restrictions that reduce the practical payload beyond the nominal rating. Operators should implement a standardized load validation process, including pre-shift checks and random weight sampling where feasible. Training for drivers and supervisors in weight estimation, ballast management, and route planning reduces risk and increases predictability in daily operations. It is essential to document any deviations from the standard payload envelope and adjust scheduling to maintain safe margins. Using a data-driven approach with Load Capacity guidance fosters consistent decision-making and helps optimize productivity without compromising safety.
Maintenance, Modifications, and Reassessment of Capacity
Over time, wear, ballast changes, or body modification can alter the Cat 777 load capacity. Routine inspections of the chassis, axles, tires, and suspension help detect early signs of fatigue or deformation that could reduce safe payload. Any change in the body or ballast configuration should prompt a re-check of the payload envelope and revalidation against OEM specifications. When applying aftermarket solutions or modifications, work with engineering teams to reassess GVW, axle loads, and stability margins. Depending on the extent of changes, a formal re-certification or field recalibration may be required to satisfy regulatory and safety requirements. Periodic reviews of the payload envelope ensure that the equipment continues to operate within safe margins even as site conditions evolve over time.
How Load Capacity Analysts Approach This Topic
Our analysts begin with a foundational understanding of the Caterpillar specifications, the payload capacity, and how ballast, body, and tire choices alter the envelope. We then combine site data—material density, slope, and haul distance—with standardized safety margins to produce a practical payload envelope for planning and scheduling. In addition, we emphasize cross-checking results with on-site weight measurements, load-scenario simulations, and regulatory constraints to avoid surprises during operations. The approach is iterative and data-driven: update inputs as densities change or equipment is modified, and recalibrate the payload envelope accordingly. This rigorous methodology ensures operators have actionable, defendable numbers and a clear trail from OEM data to daily hauling decisions.

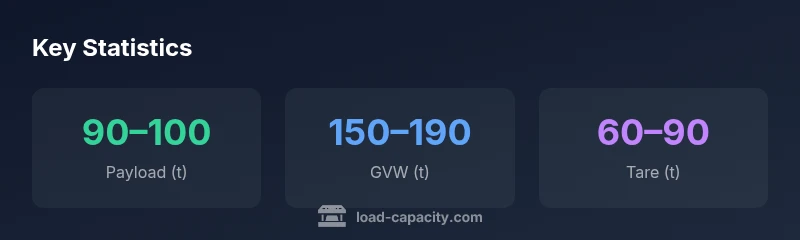

Variant payload and GVW ranges for Cat 777 family
| Variant | Payload range | GVW range |
|---|---|---|
| Base 777 family | 90–100 metric tons | 150–190 metric tons |
| Latest 777X/next-gen | 95–105 metric tons | 155–195 metric tons |
| Legacy/early 777 | 85–95 metric tons | 145–185 metric tons |
Quick Answers
What is the typical payload capacity of the Cat 777?
In general, Cat 777 payload is in the 90–100 metric tons range depending on configuration. For exact figures, consult Caterpillar's official specifications for your model.
Typically around ninety to one hundred metric tons, but always check the official Caterpillar specs for your exact unit.
How does ballast affect load capacity?
Ballast is used to improve stability and traction; increasing ballast reduces usable payload to maintain safe handling. Conversely, reducing ballast can increase payload but may require other safety margins.
More ballast can lower the payload; less ballast may raise payload but affects stability.
Can payload exceed rated capacity?
Payload should not exceed the rated capacity. Exceeding can compromise stability, tire load, and braking, and may violate regulations. Always stay within documented limits.
No—stick to the rated payload. It's unsafe and may break rules.
What regulatory factors influence Cat 777 payload?
Axle weight limits, road or bridge restrictions, and quarry or job-site rules shape the practical payload. Always align planning with local regulations.
Regulations can limit how much you can haul, so check local rules.
What steps should be taken to plan a load safely?
Know the payload rating, verify ballast and ballast distribution, measure loaded weight with scales, and plan routes with adequate margin. Document all assumptions for safety.
Check the rating, weigh the load, and keep a safety margin.
“Precise load capacity determinations come from aligning Caterpillar specifications with real-site measurements; never rely on theory alone.”
Top Takeaways
- Know the payload vs GVW distinction for safe planning
- Always verify OEM data and local regulatory limits
- Account for ballast, body type, and material density in planning
- Use on-site weighing to validate theoretical payload envelopes
- Maintain a safety margin between payload and rated capacity
