Diagnosing the Unsatisfactory Load Capacity of the Column: A Practical Troubleshooting Guide

Why the column's load capacity degrades

The phenomenon we describe as an unsatisfactory load capacity of the column occurs when a column cannot safely carry the expected vertical or combined loads under service conditions. In many cases, the root cause is a mismatch between the design assumptions and actual conditions encountered during construction or operation. The Load Capacity team emphasizes that early detection matters: if the column’s capacity is over-stressed, the risk increases from reduced performance to potential failure. This section explains how cross-section size, material quality, corrosion, end conditions, and load paths interact to reduce available capacity and what engineers should check first when symptoms appear. Look for signs of unexpected deflection, nonlinearity in load response, or unexpected settlement that points to an unsatisfactory load capacity of the column.

Immediate hazard assessment and safety steps

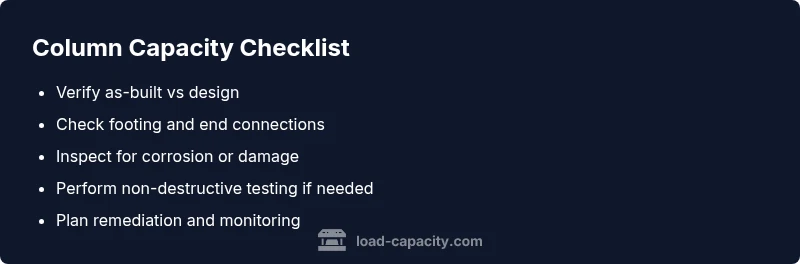

Before diagnosing causes, ensure the site is safe. Isolate the area under the affected column, install temporary bracing or shoring as needed, and stop any overhead loads. The goal is to prevent a collapse while you perform measurements and analyses. The phrase unsatisfactory load capacity of the column becomes more urgent when lateral loads or seismic demands are present. Document the location, access, and observed deformations, and alert relevant personnel. This section provides a checklist to support a safe, controlled initial assessment while protecting workers and nearby equipment.

Common causes of unsatisfactory load capacity of the column

Several factors can reduce a column’s capacity below its design expectations. Inadequate cross-section or poor design for the actual load path is a frequent culprit, especially when unexpected vertical or lateral forces occur. Material degradation or corrosion reduces the effective area, while end conditions—base or footing failures, misalignment, or poor connections—alter the load transfer. Unaccounted dynamic loads, thermal effects, or soil-structure interactions such as settlement or bearing capacity loss can compound the problem. Recognizing these causes helps prioritize corrective actions and prevents repeated issues that contribute to an unsatisfactory load capacity of the column.

How to measure and verify load capacity with practical tests

Verification begins with non-destructive checks and field measurements. Use strain gauges, displacement sensors, and simple load indicators to capture real-time responses under controlled loading. Compare results with the design intent and allowable stresses, accounting for material properties and temperature effects. If safe, perform a limited static load test with a qualified supervisor, recording peak responses and any yielding indicators. For concrete columns, look for cracking patterns, while for steel, inspect bolt pretensions and weld integrity. The goal is to confirm whether the unsatisfactory load capacity of the column is due to a structural deficiency or a temporary condition that can be managed through remediation.

Step-by-step path to remediation

1. Gather information and secure the site: Collect drawings, as-built measurements, and current load data; isolate the column area and install temporary bracing. Tip: document everything with timestamps and photos. 2) Review design assumptions and as-built details: Compare original design with field measurements, reinforcement details, and end connections. Tip: red-line drawings help catch discrepancies quickly. 3) Inspect footing and end conditions: Check foundation size, soil bearing capacity, and any signs of settlement or tilt. Tip: use laser levels and survey marks for accuracy. 4) Plan remedial actions with the team: Decide between reinforcement, replacement, or foundation modification; obtain engineer sign-off. Tip: clearly define safety boundaries before invasive work. 5) Implement temporary stabilization: Maintain bracing, restrict loads, and monitor the area during remediation. Tip: verify bracing tightness and alignment daily. 6) Execute long-term remediation and verify adequacy: Install a strengthened column or upgraded footing, then retest and update documentation. Tip: schedule follow-up inspections and periodic monitoring.

Design considerations and maintenance to prevent future issues

Prevention starts with robust design aligned to actual site conditions, including soil bearing capacity and load path analysis. Consider conservative cross-sections, redundancy in load paths, and durable end connections to mitigate future risk. Post-remediation, implement a monitoring plan using sensors and regular inspections to catch early signs of distress. Keep changes tracked in the project records and ensure designers and contractors coordinate on all reinforcement strategies. By prioritizing design review, installation quality, and ongoing checks, the risk of repeating the problem—and encountering an unsatisfactory load capacity of the column—decreases substantially.
