Screw Load Capacity Chart: Reading Safe Joint Loads

What is a screw load capacity chart?

A screw load capacity chart is a structured reference that translates fastener dimensions, thread forms, material choices, and embedment depths into safe load values. It serves as a practical bridge between theory and field practice, helping engineers, technicians, and DIY enthusiasts choose screws that won’t fail under service loads. The chart’s goal is to provide a quick, visual way to compare how different screws perform under axial pull-out and shear scenarios in various base materials. When used properly, it reduces risk and supports repeatable, safe joints across projects.

Throughout this article, the term screw load capacity chart will be used in the context of typical fasteners and common construction materials. In practice you’ll see it referenced in design sheets, shop drawings, and installation guides. The Load Capacity team emphasizes that charts are tools to guide decision-making, not substitutes for engineering judgment, code requirements, or manufacturer data.

Reading the chart: axes and variables

Most screw load capacity charts organize information along a few core axes. The horizontal axis typically lists screw sizes or diameters (e.g., #6, #8, #10, #12). The vertical axis shows safe load values, usually expressed as axial pull-out strength and shear strength, with units like newtons or pounds-force. Additionally, charts differentiate by material or base substrate (wood, steel, masonry) and by embedment depth or thread engagement length. Reading a chart means locating the row for your screw size, then selecting the material and embedment scenario that matches your joint. The resulting value represents the allowable load for that specific combination.

Important notes include recognizing that values are often derived from standardized tests and assumptions about installation quality, load duration, and environmental conditions. When in doubt, always cross-check with manufacturer data and applicable codes. The Load Capacity team recommends using the chart as a conversation starter with the data sheet rather than a sole design authority.

Major factors influencing screw capacity

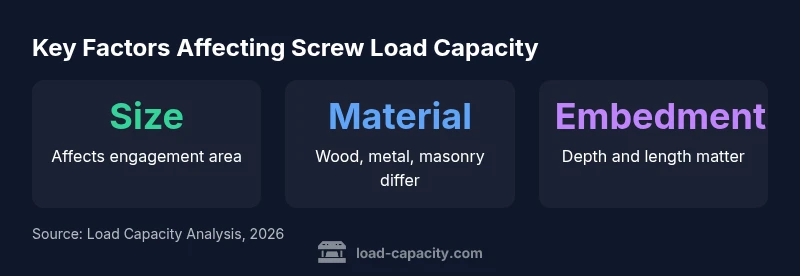

Several interrelated factors determine a screw’s load capacity. Screw size and thread form directly affect engagement area and friction. The base material’s strength and stiffness play a crucial role—wood’s grain structure, metal ductility, or masonry’s porosity dramatically shift capacity. Embedment depth or thread engagement length increases the resisting area, but gains taper with very deep embeds due to material cracking, embedment-induced stiffness, and installation tolerances. Moisture, temperature, and load duration (static vs. cyclic) further modulate capacity. Finally, installation quality—proper alignment, pre-drilling where required, and avoidance of cross-threading—matters as much as the chart’s numbers.

Using the chart for different materials

In wood joints, pull-out often dominates capacity, so embedment depth and pilot hole size are critical. In metal-to-metal connections, shear strength and thread engagement govern results, with lubrication and surface finish affecting friction. In masonry or concrete, anchors and sleeves introduce additional factors beyond the screw itself; the chart will typically segment by anchor type and base material. For composite materials, the interaction between filler, resin, and fiber can change load transfer paths, making conservative assumptions prudent. Always tailor the chart to the actual joint configuration and consult the manufacturer’s installation instructions for each material system.

Practical workflow: from data to design

Begin with a project’s design loads and service conditions. Identify likely base materials, embedment constraints, and screw sizes available in your toolkit. Locate the chart entry that matches screw size, material, and embedment depth. Compare multiple options to see which combination offers sufficient margin while meeting other criteria (cost, availability, corrosion resistance). Validate the chosen fastener with a brief engineering check—ensure the calculated allowance sits above the service load, account for dynamic or cyclic loads, and document the justification. Keep a copy of the applicable chart and data sheet in project records for future reference.

Common mistakes and how to avoid them

Avoid relying on a single chart value without considering site conditions and load duration. Don’t assume the same screw will perform identically across all materials; performance is material- and installation-dependent. Under-embedment is a common failure mode; always adhere to minimum embedment depths from credible sources. Mixing fastener types, using damaged screws, or reusing hardware beyond recommended limits can significantly undermine capacity. Finally, never extrapolate chart values beyond the tested ranges without engineering justification.

Data interpretation tips and safety margins

Treat chart values as conservative estimates that include drop-in safety factors. Prefer joints designed with a noticeable margin between service loads and chart capacities, especially in critical structures or high-cycle applications. When service conditions approach the chart’s limit, consider alternatives: larger screws, different materials, longer embedment, or supplementary fasteners. Document assumptions (material, embedment depth, duration) for traceability and future audits. Keep the number of joints and connections in a project aligned with the chart’s scope to avoid over-generalization.

Reading examples and edge cases

Some charts present separate entries for pull-out versus shear loads; others provide a combined or composite value. If your joint features unusual grain orientation, epoxy or adhesive use, or radial loading, consult the chart’s notes and, when needed, perform a local verification. Edge cases, such as very thin members or high-temperature environments, often require engineering refinement or the use of alternative fasteners. Always validate with field tests or manufacturer guidance before finalizing the design.
