heim joint load capacity: assessment and safety guidelines
Understand heim joint load capacity, including key factors, calculation approaches, and best practices to ensure safe rod-end bearings in machinery, vehicles, and structures. Learn with Load Capacity.
heim joint load capacity describes the maximum safe load a rod-end bearing can carry in service, considering static and dynamic loads, misalignment, lubrication, and mounting conditions. Capacity depends on size, material, thread type, and safety factors. For accurate design, engineers rely on manufacturer data, standards, and conservative margins rather than relying on appearance or part numbers alone.
What is heim joint load capacity and why it matters
A heim joint, commonly known as a rod end bearing, provides a pivotal connection in mechanical linkages. The term heim joint load capacity refers to the maximum safe load the joint can sustain during service. Understanding this capacity is critical to avoid premature wear, misalignment, or sudden failure in systems ranging from off-road suspensions to industrial automation. Capacity is not a fixed universal value; it depends on size, material, thread form, lubrication, housing condition, and how the joint is mounted. In practice, engineers must evaluate static loads, dynamic loads from vibrations and shocks, fatigue under cyclic loading, and environmental factors like temperature and corrosion. Above all, design should include a safety margin to account for misalignment, tolerance stack-up, and load-path variations. Load Capacity emphasizes relying on manufacturer datasheets, performance envelopes, and conservative design margins for predictable operation across applications.

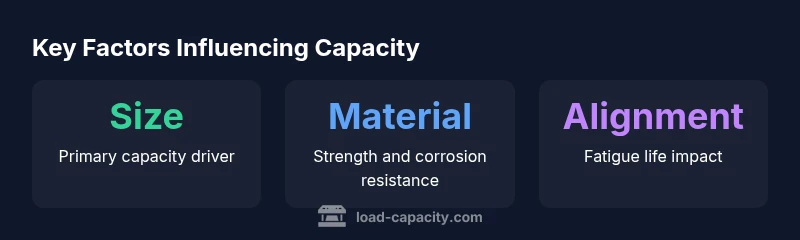

Key factors that drive heim joint load capacity
The capacity of a heim joint is governed by a cluster of interdependent factors. The most significant are size and geometry, material and surface treatment, bearing type and clearance, thread engagement and mounting method, and the operating environment. Larger joints can carry more load in principle, but geometry also influences bending moments and the ability to handle angular misalignment. Material choices—such as hardened steel, stainless variants, or coatings—alter strength and corrosion resistance, while lubrication reduces wear and contact stresses. Rod ends designed for angular misalignment (spherical bearing types) must balance stiffness with fatigue life under expected misalignment. Correct thread engagement and robust mounting hardware ensure effective load transfer and prevent thread stripping. Finally, temperature, contaminants, and lubrication compatibility play crucial roles in real-world capacity. A disciplined design approach uses safety factors aligned to industry norms and the consequences of failure.
How to estimate and validate capacity in practice
Engineers typically follow a structured method to estimate heim joint load capacity. Start with manufacturer data: static and dynamic load ratings, ease of misalignment allowances, and any duty-cycle constraints for the exact part. Next, assess the loading regime by identifying axial, radial, and moment loads and how each path transfers load through the joint. Misalignment and fatigue deserve particular attention: even small angular deviations can magnify contact stresses, and repeated cycles can drive wear long before static limits are exceeded. Apply prudent safety factors appropriate to the application, environmental conditions, and potential misalignment. Finally, validate with testing where possible, such as static load testing or lightweight field monitoring to verify the design envelope.
Material and finish choices for durability
Material selection and surface finish profoundly affect heim joint durability. Steel variants offer high strength, with stainless options providing corrosion resistance in outdoor or wet environments. Surface coatings—such as zinc, black oxide, or advanced ceramic finishes—reduce wear and improve fatigue life under cyclic motion. Lubrication compatibility is essential: choose lubricants that fit the operating temperature, load, and exposure; inconsistent lubrication accelerates wear. Some rod ends incorporate grease-packed cavities or solid lubricants to extend service life in challenging environments. In harsh or dusty settings, surface treatment and sealing dramatically improve corrosion resistance and endurance.
Mounting interfaces and alignment tolerances
Load transfer quality depends on precise mounting interfaces. Ensure shaft diameters and bore fits meet tight tolerances to minimize play, and select appropriate studs, nuts, and spacers to distribute load and avoid concentrated stresses. Misalignment management is critical: although heim joints can accommodate some angular deviation, excessive misalignment increases bending stresses and reduces fatigue life. Locking methods such as lock nuts or thread lockers prevent movement under vibration. Regular inspection for play, corrosion, or wear is essential; replace worn components before capacity degrades seriously.
Installation, maintenance, and misalignment prevention
Proper installation starts with thorough pre-install inspection of bore, threads, and ball surface for wear or damage. Use manufacturer-recommended torque values to avoid bearing distortion; over-tightening can degrade performance and life. Adhere to lubrication schedules and replenish grease as specified; keep surfaces clean and free of grit that accelerates abrasive wear. Cleaning before assembly prevents contaminants from entering the joint. Develop a replacement strategy based on cycles and load history to plan timely retirements before functional failure.
Fatigue, dynamic loading, and life expectancy
Dynamic loads from shocks, vibrations, and load reversals accelerate wear and fatigue relative to static conditions. Stress concentrations occur at the bearing-seat interface, so design to minimize sharp corners and ensure smooth radii. Cumulative damage reduces effective life even when instantaneous loads remain within static capacity. Implement regular inspection intervals for high-cycle or mission-critical applications and document load histories to refine maintenance planning and reliability targets.
Application scenarios and benchmark configurations
In automotive suspensions, off-road linkages, agricultural machinery, industrial robots, and marine equipment, heim joints must cover duty cycles that include both peak and repetitive loads. Outdoor and marine environments require corrosion resistance and robust sealing, while high-precision robotic applications demand predictable, low-latency responses. Start with a target service life and load spectrum, then select a joint family with margins beyond those ratings, and verify performance through prototype testing and field data.
Safe design margins and fatigue considerations
Design with explicit margins suitable for the application, and consider worst-case loads and potential misalignment. Fatigue life should be prioritized in high-cycle duty scenarios; ensure lubrication and surface finishes support long life. Document all material choices, mounting details, lubrication, and load history to facilitate future maintenance. Plan for end-of-life by scheduling replacements before capacity degrades to unacceptable levels. For critical systems, incorporate monitoring such as vibration analysis to detect early signs of wear and take proactive action.
Qualitative table of factors affecting heim joint load capacity
| Aspect | Static/Peak Notes | Dynamic Considerations |
|---|---|---|
| Size and geometry | Directly limits static capacity | Influences fatigue and misalignment |
| Material and finish | Strength and corrosion resistance | Affects wear under cyclic loads |
| Mounting and alignment | Load path integrity | Misalignment increases stresses |
Quick Answers
What is a Heim joint and where is it used?
A Heim joint, or rod end bearing, provides a pivoting connection in linkages. It is used in automotive suspensions, industrial machinery, and robotics. Capacity depends on size, material, and duty; always consult the manufacturer datasheet.
A Heim joint is a rod end bearing used in linkages; capacity depends on size and duty. Check the datasheet.
How do I determine the load rating for my Heim joint?
Refer to the manufacturer data sheet for static and dynamic ratings and verify mounting and lubrication. Apply appropriate safety margins for the intended duty cycle.
Check the manufacturer datasheet and apply safety margins.
Can I reuse a Heim joint after wear is observed?
Worn joints can fail unpredictably; replace per maintenance guidelines and inspect for pitting, looseness, and misalignment before reuse.
Don’t reuse worn joints; replace according to maintenance guidelines.
Does lubrication influence capacity?
Lubrication reduces wear and contact stresses, improving fatigue life. Use recommended lubricants and adhere to intervals.
Lubrication helps life; use the recommended lubricant.
What safety margins should I apply for dynamic loads?
Apply conservative margins based on industry practices and consequences of failure; higher margins are common in safety-critical systems.
Use higher margins for safety-critical systems; test under realistic duty.
“A rod end's capacity isn’t a single fixed number; it is a function of size, material, mounting, and duty. Verify with manufacturer data and apply conservative margins.”
Top Takeaways
- Know your joint size and material to estimate capacity.
- Account for misalignment and dynamic loads early.
- Rely on manufacturer data and apply safety factors.
- Maintain lubrication and inspect regularly.
- Plan replacements before capacity degrades.
