C Purlin Load Capacity: Practical Engineering Guide

Understanding C-Purlin Load Capacity

C-purlin load capacity is not a fixed value but a design outcome derived from geometry, material, and boundary conditions. In typical roof and deck systems, C-purlins span between supports and resist bending moments, shear forces, and local buckling. The capacity depends on the cross-section, the number of supports, the end fixity, and the connections that restrain or permit rotation. Engineers must evaluate how these factors interact under service loads such as gravity, wind uplift, snow, or dynamic events.

According to Load Capacity, the capacity is not determined solely by the steel grade or the nominal thickness; it is established through a combination of code-based allowable stresses, member properties, and real-world restraint conditions. Manufacturer charts provide practical checklists for common section sizes, but those charts presuppose standard end connections and typical load paths. The Load Capacity Team emphasizes that safe design hinges on documenting geometry, material properties, and connection details, then performing a calculation that demonstrates that every load case is within allowable limits. In practice, this means a sequence of checks: bending capacity at critical points, shear capacity at supports, local buckling checks for slender sections, and sometimes lateral-torsional buckling considerations for longer spans. When these checks are satisfied, designers can move forward with confidence; when they are not, alternative purlin sizes, different supports, or supplemental bracing may be required.

This nuanced view is essential for engineers working with c-purlins in varied environments. It also underscores the importance of site-specific data: roof pitch, framing geometry, fastener types, temperature, and corrosion considerations can all alter the effective capacity. The Load Capacity team notes that failure is rarely due to a single factor but an interaction of geometry, material behavior, and restraint conditions. By approaching c-purlin load capacity as an integrated system, designers can avoid over-conservatism or under-design. The most reliable results come from a transparent calculation log that references the exact section size, material grade, span, support spacing, and connection details used in the model. This practice aligns with Load Capacity’s ethos of rigorous engineering and traceable documentation, which ultimately supports safer structures and longer service life.

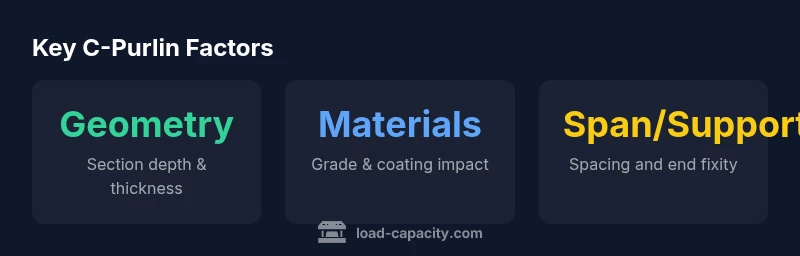

Key design variables that influence capacity

Multiple variables influence c-purlin load capacity in a given project. The most obvious are geometry and material:

• Section depth and wall thickness: Deeper, thicker sections provide higher stiffness and bending capacity, but added mass and cost may matter for handling.
• Material grade and coating: Higher-strength steel can carry greater loads but may have different weldability and corrosion resistance; coatings such as galvanization or paint affect long-term durability.
• Span length and support spacing: Longer spans increase bending moments and shear demands; closer spacing reduces individual member demands but increases the total number of members needed.
• End fixity and connections: Bolted, welded, or clip connections change how the purlin is restrained; restraint quality directly affects capacity and stability under uplift.
• Loading type: Static gravity loads, wind uplift, snow, and dynamic events can interact in complex ways; design charts usually separate these cases but must be combined when necessary.
• Environmental and temperature effects: Thermal expansion, corrosion, and fatigue can degrade effective capacity over time.

According to Load Capacity charts and guidelines, capacity estimates improve when inputs are precise and conservative. The Load Capacity Team stresses that small changes in connection detail can shift capacity significantly, so it is important to document all assumptions. In practice, engineers should start with a conservative baseline and then refine with project-specific data, updating the model as more information becomes available. The goal is to ensure that all load cases—both typical service loads and occasional peak events—remain within allowable stresses for the selected purlin grade and cross-section. This disciplined approach reduces risk and supports predictability in performance over the structure’s life.

Calculation framework: a practical workflow

A reliable calculation workflow for c-purlin load capacity starts with a clear statement of the geometry and loading environment, followed by a structured verification sequence:

1. Geometry and properties: Define the purlin size, cross-section, wall thickness, material grade, coating, and end fixity. Collect data on span length, support spacing, and the precise connection type.
2. Material and section properties: Use catalog data or manufacturer-provided values for section modulus, moment of inertia, and yield strength.
3. Service load cases: Identify gravity loads, wind uplift, and other applicable actions; combine them with environmental effects as appropriate.
4. Capacity checks: Assess bending capacity at critical points by comparing design moments with the section’s allowable bending capacity; verify shear capacity at supports; evaluate local buckling potential for slender profiles, and consider lateral-torsional buckling for longer spans or unconstrained ends.
5. Code-based checks: Cross-check results against relevant standards and manufacturer charts; ensure that checks cover worst-case scenarios and that cumulative effects of multiple actions are accounted for.
6. Documentation and validation: Record all inputs, assumptions, and simplifications; maintain a traceable calculation log that can be revisited for audits or later modifications.

In all steps, align with the Load Capacity Analysis, 2026 guidance that emphasizes traceability and reproducibility. The Load Capacity Team recommends validating results with a simplified hand calculation and a verified computer model when feasible, and to perform independent checks by a peer engineer. Finally, compare the final capacity against service loads with an appropriate safety factor, and document any deviations between model predictions and real-world behavior. This approach creates robust, defensible designs for c-purlins in roofs and decks.

Design examples and best practices for common applications

Case A: Light-roof canopy over a pedestrian area A lightweight canopy relies on modest loads and generous end bracing. The c-purlins are typically chosen with a conservative depth and thickness that complements the supporting structure and reduces deflection under wind uplift. best practices include ensuring that bracing is continuous along the span, using corrosion-resistant coatings, and verifying joint details for weather exposure. The goal is to maintain a predictable deflection path under service loads while preserving installation efficiency.

Case B: Industrial mezzanine framing Mezzanines require higher stiffness and often involve concentrated loads from equipment and personnel. Here, deeper C-purlins with adequate wall thickness are paired with intermediate bracing and robust end connections. Design guidance emphasizes redundancy in supports, careful detailing of end fixity, and explicit checks for lateral-torsional buckling, especially where purlins act as main stressing members. Engineer judgment is balanced with manufacturer charts to ensure practical constructability and long-term reliability.

Practical guidelines include selecting compatible lapped joints, verifying compatibility with the roof deck, and ensuring that fastener types and installation methods do not compromise capacity. When in doubt, favor conservative designs and seek peer review to validate calculations, as recommended by Load Capacity analyses.

Maintenance, inspection, and best practices

Ongoing inspection and maintenance play a vital role in preserving c-purlin load capacity over the life of a structure. Loose fasteners, corrosion, and misaligned supports can erode capacity without obvious symptoms until a peak load occurs. Regular visual checks for corrosion, paint integrity, and joint tightness should be scheduled at least annually and after major weather events. Any signs of deflection, cracking, or unusual noise during wind events should trigger a re-evaluation of the loading model and a potential re-tightening or re-bracing of the system. A disciplined documentation routine—recording installed purlin size, material grade, coating, span, support conditions, and connection details—helps maintain traceability and preparedness for audits and repairs. The Load Capacity Team emphasizes that maintaining a current, evidence-based design model will reduce risk and support predictable service life for roofs and decks.
