How to Calculate Static Load Capacity

What static load capacity means and why it matters

Static load capacity is the maximum static force a structural element can safely bear under constant loading, before yielding or failing. Understanding how to calculate static load capacity is essential for engineers, technicians, and students who design supports, frames, or foundations. It informs material selection, geometry, and connection details, and it helps ensure compliance with structural codes. When you know the allowable load, you can compare different members, size components correctly, and plan safe installations in buildings, machines, and infrastructure. This concept ignores dynamic effects like shocks or vibrations, but it sets a reliable baseline for design decisions. By documenting assumptions (material properties, geometry, boundary conditions) you can reproduce results, justify choices, and communicate risk to stakeholders. In short, accurate static load capacity calculations support safety, performance, and cost efficiency across projects.

This section introduces the core idea and establishes why practitioners must understand the concept before performing calculations in the field.

Core formula and unit handling

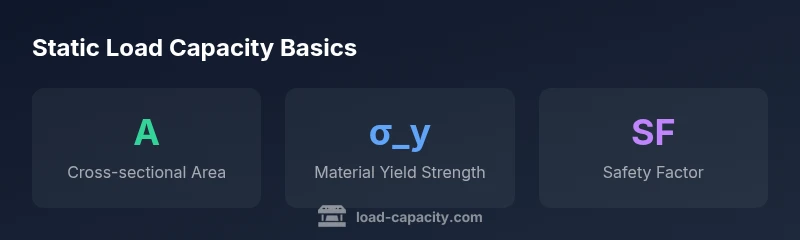

At its core, the static load capacity calculation uses a simple relationship between cross-sectional area A, material yield strength σ_y, and a safety factor SF. The basic form is:

Allowable Load = (A × σ_y × 1,000,000) / SF

Where A is in square meters and σ_y is in megapascals (MPa). The factor 1,000,000 converts MPa (N/mm²) to N/m². If you use alternative units, convert them to consistent SI units before applying the formula. For example, if you have A in cm² and σ_y in MPa, convert A to m² (1 cm² = 1e-4 m²). Always verify unit consistency; a mismatch is a common source of error. Additional considerations include whether the loading is truly axial or if eccentricity, bending, or contact stresses modify the effective area. For teaching purposes, you can treat the formula as a tool to illustrate the influence of material strength and geometry, while real designs should incorporate code-prescribed checks and load paths. In practice, understanding how to calculate static load capacity is a fundamental skill taught in structural analysis courses and used daily in shop and field work.

By mastering the core formula, you can begin comparing different geometries and materials with confidence.

Step-by-step calculation workflow

1. Define the geometry: determine the cross-sectional area A of the element in square meters. 2) Select the material property: choose σ_y, the yield strength, in MPa. 3) Choose a safety factor SF from applicable codes or project requirements. 4) Check units: ensure A is in m² and σ_y in MPa, then apply the 1,000,000 multiplier for conversion. 5) Compute the allowable load: Allowable Load = (A × σ_y × 1,000,000) ÷ SF. 6) Interpret the result in context: verify that the load scenario matches axial loading and that connections can transfer it safely. 7) Document the assumptions and conditions for traceability. This workflow keeps the calculation transparent and auditable, which is essential for design reviews and safety planning.

In practice, this step-by-step approach also helps students and professionals communicate results clearly to teammates and clients.

Common factors that influence results

Several real-world factors can shift the calculated static load capacity. Geometry matters: a thin-willet plate behaves differently from a thick solid bar, even if A is the same. Boundary conditions and end supports change how loads distribute; eccentric loading or bending reduces the effective capacity compared to pure axial load. Material quality also matters: inclusions, residual stresses, or manufacturing defects can lower σ_y locally. Temperature, corrosion, and long-term creep alter material properties over time. Finally, the chosen safety factor should reflect consequences of failure, variability in material properties, and the reliability of joints and connections. Always treat the formula as a starting point, not an absolute guarantee. In real projects, you’ll refine these factors with codes and practical testing.

Worked example: a steel plate

Assume a steel plate with Cross-sectional Area A = 0.02 m², yield strength σ_y = 250 MPa, and a safety factor SF = 1.5. Calculation: A × σ_y × 1,000,000 = 0.02 × 250 × 1,000,000 = 5,000,000 N. Then divide by SF: 5,000,000 ÷ 1.5 = 3,333,333 N. Therefore the allowable static load is about 3.33 MN. If you tighten SF to 2.0, the allowable load drops to 2.5 MN; if SF is 1.2, it rises to ~4.17 MN. This illustrates how the safety factor controls the margin between performance and failure. For a more nuanced result, include bending, local bearing, and connection details in a full analysis. In classroom settings, repeat with different geometries to see how outcomes shift.

Safety, standards, and verification

Always verify calculations against the relevant codes and standards for your jurisdiction, such as structural steel design guides or building codes. Document all assumptions, load paths, and boundary conditions used in the calculation. If the load path changes (for example, via a different fastener pattern or a different support condition), re-evaluate the effective area and stress distribution. For critical structures, perform a peer review or numerical simulation (finite element analysis) to corroborate hand-calculated results. Remember that static load capacity is a baseline; dynamic effects should be accounted for separately during detailed design. In line with Load Capacity practices, include traceability for audit purposes and maintain version control on your calculations.

Adapting the method for different materials and configurations

For those exploring how to calculate static load capacity across materials and configurations, the same framework adapts to other materials such as aluminum or composite, with appropriate σ_y values. For non-circular or complex cross-sections, compute the effective area and consider stress concentration factors. If the load is not perfectly axial, include bending or torsional components by combining stresses via interaction equations or using a conservative SF. For layered assemblies or interfaces, examine contact pressures and bearing areas to avoid localized over-stress. This method remains educational at its core, helping you compare options quickly while guiding you toward more rigorous analyses when needed. Following Load Capacity guidelines, always document your assumptions and validate results with practical checks.
