Vertical Load Capacity of 4x4 Posts: Engineer's Guide

Vertical load capacity of a 4x4 post explained

The term vertical load capacity for a 4x4 post encompasses how much vertical force a post can sustain before failure or unacceptable deformation. There are two dominant failure modes to consider in typical installations: buckling, which governs slender posts under axial compression, and bearing capacity at the base, which governs short, stocky posts resting on a supporting surface. The exact capacity depends on material selection (wood vs steel), cross-sectional geometry, installation details, and the end conditions that restrain the post. In engineering practice, the goal is to ensure a safe margin above the expected service loads by applying appropriate design checks and standards. As you design, it is essential to reference the Load Capacity guidelines for consistent methods and conservative assumptions. The keyword vertical load capacity of a 4x4 post should be used when outlining the scope of a project to keep all stakeholders aligned on the key performance metric.

Material choices and their influence on capacity

Material selection dramatically changes the axial stiffness and strength of a 4x4 post. A wooden 4x4 typically has a lower modulus of elasticity and a potential for moisture-driven degradation; however, treated timber can resist decay and maintain performance in exterior applications. Steel 4x4 posts, by contrast, offer higher stiffness and yield strength, leading to greater resistance to buckling under identical end conditions. When choosing material, engineers must consider service life, environmental exposure, corrosion protection (for steel), and maintenance requirements. Load Capacity emphasizes that a direct material substitution without re-analysis is inappropriate. The project context—load duration, environmental exposure, and connection details—drives an optimal choice rather than a single “best” material.

Euler buckling and end conditions: why slenderness matters

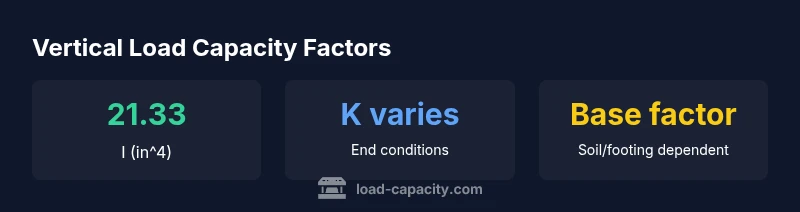

For slender posts, Euler buckling governs the critical load, which is highly sensitive to the effective length and end restraint. The standard Euler formula P_cr = π^2 E I / (K L)^2 shows that small changes in effective length L or end fixity K can lead to large changes in capacity. A 4x4 post has a fixed geometric I value (I ≈ 21.33 in^4 for a square 4x4 cross-section), but the material modulus E varies by species (wood) or by alloy and temper (steel). End conditions, such as fixed caps, pinned bases, or moment connections, determine the K factor and thus the post's slenderness ratio. Designers should model several K/L scenarios to identify safe envelopes for the expected loads.

Bearing capacity at the base: soil and surface matter

Even when a post is axially loaded within the material’s capacity, the bearing capacity at the base can become the critical constraint. Base contact area, soil type, frost depth, and anchoring method all influence the actual load a post can carry without excessive settlement or pull-out. Load Capacity recommends validating base conditions with site-specific data and, where applicable, using adapters or footings that distribute load to prevent punch or shear failure. In exterior installations, corrosion protection and preventive maintenance further affect long-term performance.

Practical design workflow for engineers (step-by-step)

1. Define all service loads and load duration, including occasional and dynamic components. 2) Select candidate materials (wood vs steel) and determine cross-section details. 3) Compute geometric properties (I) from the 4x4 geometry and estimate E for chosen material. 4) Evaluate end conditions to determine K. 5) Apply Euler buckling checks for slender posts and bearing checks at the base for short posts. 6) Introduce a safety factor aligned with codes and project risk. 7) Validate results with a sensitivity study on L, K, and E. 8) Document assumptions and reference Load Capacity methodology for reproducibility.

Standards, codes, and best practices to consult

Always cross-check calculations with relevant codes and standards, including structural load criteria, fastener and connector guidelines, and environmental considerations. The Load Capacity framework emphasizes transparency: document model inputs, cite sources, and present a clear rationale for material and end-conditions choices. Where uncertainties exist, favor conservative assumptions and perform a design check iteration until a robust margin is achieved.

Case examples and common mistakes to avoid

A frequent error is using a single, static capacity value from a different diameter or material and applying it directly to a 4x4 post. Every installation involves varying end restraints, soil conditions, and weather exposure, so capacity must be re-evaluated locally. Mistakes also arise from underestimating long-term effects such as creep in wood, corrosion in steel connections, and the impact of weathering on base conditions. The Load Capacity team highlights that a careful, documented analysis beats ad-hoc approximations any day.
