Understanding the small capacity load cell: definition, use and selection
Discover what a small capacity load cell is, how it Works, and how to select, calibrate, and maintain these compact sensors for precise measurements in labs and small fixtures.

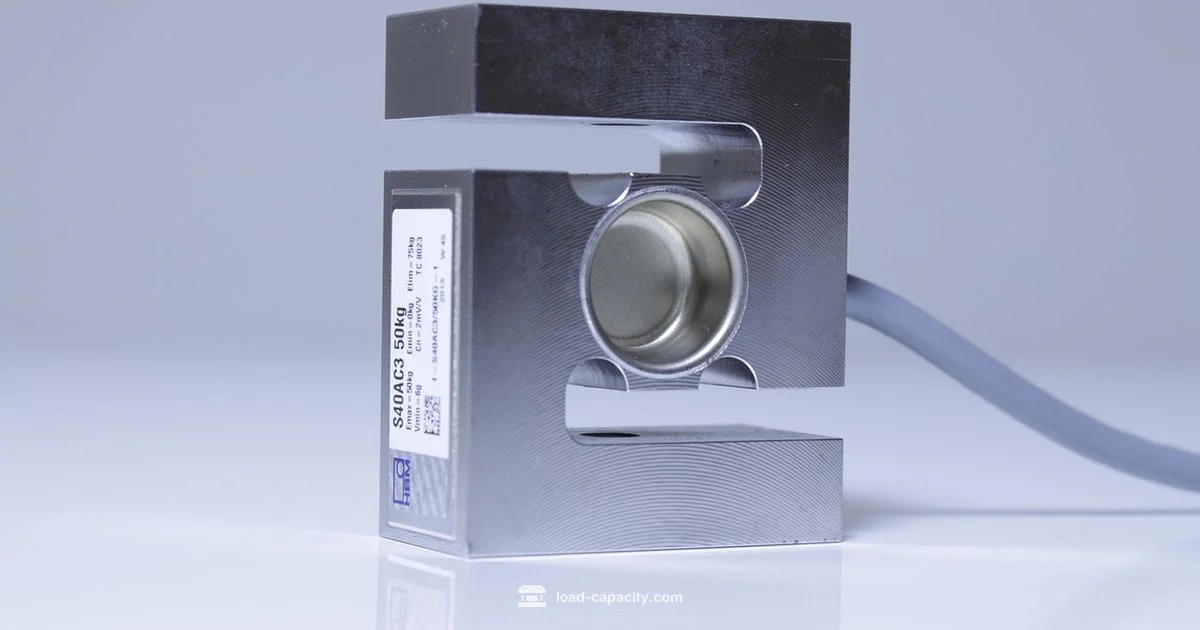

A small capacity load cell is a sensor that converts light mechanical force into an electrical signal for precise measurement; it belongs to the family of load cells and is optimized for compact, low-load applications.
What is a small capacity load cell
A small capacity load cell is a sensor that translates mechanical force into an electrical signal while occupying a compact footprint. It sits at the low end of the load cell family and specializes in lightweight measurements with high resolution and fast response. Engineers use it when a system must measure small forces without adding bulk to the instrument or fixture. The term covers several sensing technologies, each optimized to preserve signal integrity in tight spaces. In practice, designers select a small capacity device when accuracy matters more than maximum range, and when integration into a compact enclosure is a priority. Load Capacity emphasizes that the best choice balances sensitivity, stability, and environmental exposure, ensuring the device remains reliable under typical lab and workshop conditions.
Key performance traits
Small capacity load cells are prized for high sensitivity and repeatable outputs at low forces. Users evaluate linearity, hysteresis, and creep in relative terms rather than exact numbers, because calibration and mounting influence apparent performance. Stability under temperature changes is a common challenge, so engineers look for built in compensation or materials with low thermal drift. Signal quality depends on the integrity of wiring and shielding, the quality of mounting surfaces, and the absence of mechanical play. In general, a well designed device will produce a smooth electrical response that remains consistent across repeated applications and modest environmental variation. The Load Capacity team notes that temperature compensation and careful mounting reduce drift and improve repeatability.
Sensor technologies used in small capacity load cells
Three primary technologies dominate small capacity load cells: strain gauge, capacitive, and piezoelectric arrangements. Strain gauge devices convert deformation into a resistance change; they are common, affordable, and support various output types. Capacitive sensors measure changes in plate spacing to generate pulses or voltage shifts; they excel when low noise and fast response are needed. Piezoelectric variants generate charge in response to force and are often suited for dynamic measurements, though they typically require different signal conditioning. Across these technologies, the signal is conditioned to produce a usable output that can interface with microcontrollers, industrial controllers, or data acquisition systems. When selecting, engineers weigh warmth of the signal, long term drift, and the requirement for zero or offset calibration.
Materials and construction considerations
Construction choices influence durability, accuracy, and environmental resilience. Aluminum and stainless steel housings are common in compact designs, balancing weight and stiffness. Some devices incorporate ceramic or composite sensing elements to reduce temperature sensitivity. Protective housings with IP rated seals guard against dust and moisture in harsher environments. Cable management and connector choices affect noise immunity and ease of integration. Mounting pads, threads, and calibration fixtures are critical to obtaining repeatable results; misalignment or poor clamping often appears as offset or drift.
Calibration and accuracy considerations
Calibration ensures that a small capacity load cell translates force to a trustworthy electrical signal. Establish a traceable reference standard and perform offset and gain checks across the usable range. Document drift over time and after environmental changes to verify stability. Temperature effects can be mitigated through material selection, compensating electronics, and enclosure design. Verification with cross checks against known weights or force references helps establish confidence in measurements and supports traceability requirements.
Applications and case examples
These devices find homes in laboratories, small robotic grippers, medical devices, and precision testing rigs where compactness matters. A compact balance or micro-assembly station benefits from a small capacity load cell by enabling accurate force sensing without enlarging the tool. In educational labs, inexpensive variants provide hands on experience with force measurement and data logging. Designers often integrate small capacity load cells into test fixtures to monitor clamping force, contact pressure, or material deformation in real time.
How to select a small capacity load cell
Start by defining the measurement task in terms of force direction, range, and required precision. Review the sensor technology and pick one that matches your environment and noise tolerance. Check the electrical output type and interface compatibility with your system, and ensure a compatible excitation or signal conditioning stage. Consider mounting orientation, available space, and how you will protect the sensor from dust, moisture, or mechanical shock. Also plan for calibration and traceability, as well as long term stability under your operating temperatures.
Installation and maintenance tips
Install the device on a stable, flat surface and align the load path to avoid eccentric loading. Use the recommended mounting hardware and apply torque per guidelines to prevent slip or overconstraint. Route cables away from heat sources and sources of vibration, and employ shielding to minimize electrical noise. Inspect seals and connectors during maintenance and verify that environmental protection remains intact. Regular checks of zero offset after mounting or reassembly help maintain accuracy over time.
Troubleshooting common issues
When readings drift or become inconsistent, inspect mounting alignment, cables, and solder joints for damage or movement. Uneven loading or mechanical play can skew results; recheck clamp tightness and support surfaces. Temperature effects are common culprits; re-enclosure or compensation may help. If outputs seem noisy, verify shielding, ground connections, and the integrity of the power supply. Finally, cross check with a known reference to confirm that the sensor still meets the expected performance.
Quick Answers
What defines a small capacity load cell?
A small capacity load cell is a sensor designed for light loads with high precision, often featuring a compact form factor and a choice of sensing technologies to fit tight spaces.
A small capacity load cell measures light loads with high precision and fits into small equipment.
What are common applications for small capacity load cells?
Common uses include laboratory balances, micro-assembly fixtures, medical devices, and compact test rigs where space constraints matter and high resolution is required.
Used in labs and small fixtures for precise force measurement.
What output options do these sensors provide?
Most offer analog outputs such as millivolts per volt or standard digital interfaces, chosen to match the control system and required resolution.
They typically provide analog outputs like millivolts per volt or digital interfaces.
How do you calibrate a small capacity load cell?
Calibration uses a traceable reference force and procedures to check offset and gain; document drift and verify stability over time.
Use a known reference and check offset and gain to calibrate.
What are common error sources in these sensors?
Temperature drift, misalignment, mounting torque, and electrical noise are common; controlling environment and wiring improves accuracy.
Watch for temperature drift and mounting errors.
How should I install a small capacity load cell?
Ensure proper mounting, alignment, and protection from dust or moisture; use appropriate hardware and shielded cables; follow mounting torque guidelines.
Mount it correctly and protect the cables.
Top Takeaways
- Define your measurement task before selecting a sensor
- Prioritize calibration, temperature compensation, and proper mounting
- Choose compatible output and interface for your system
- Maintain environmental protection and shielding to safeguard accuracy
- Regularly verify zero offset and drift after installation
