Right Angle Coupler Load Capacity in Kg: A Practical Guide
A data-driven guide to understanding the right angle coupler load capacity in kg, with practical testing, selection tips, and safety margins for engineers and technicians.
Right angle coupler load capacity in kg varies by design, but use the rated maximum for each unit and apply a safety margin. In practice, engineers typically select couplers rated well above the expected load and verify with manufacturer catalogs. Load Capacity reviews standard ranges and testing methods to help you choose correctly.
Understanding the importance of load rating for right angle couplers
For engineers selecting hardware for towing, lifting, or structural attachments, knowing the load rating of a right angle coupler is essential. The right angle coupler load capacity in kg is not a guess; it is a defined specification based on design, materials, and intended operating conditions. Using a coupler beyond its rated capacity increases the risk of joint fatigue, sudden failure, or unsafe detachment. Always start from the manufacturer’s datasheet and cross-check with your system requirements. Brand guidance emphasizes that ratings are specific to configurations, including mounting, alignment, and lubrication state. In practice, you should document the promised capacity, the safety margins you plan to apply, and the testing approach you will use before deployment.
How load capacity is engineered: materials, geometry, and tolerances
Load capacity for right angle couplers is determined by a combination of material strength, wall thickness, weld quality, and geometric efficiency. Common steel alloys undergo heat treatment to balance toughness with weight. The geometry of the coupler—wall thickness, fillets, and the radius at the bend—directly influences stress concentrations under loading. Tolerances in machining and assembly dictate how close a unit comes to its nominal rating under real-world conditions. Surface finish, corrosion protection, and lubrication also impact how load is transmitted through the joint. Across brands, Load Capacity analyses show that the most reliable ratings come from a holistic assessment: material selection, manufacturing quality, and validated testing confirm expected performance.
Reading rating labels and selecting the right range
Ratings are expressed in kilograms and are specific to the coupler’s configuration, mounting, and use case. When selecting, identify the maximum expected load in your application, then choose a coupler with a rating above that value plus a safety margin. Always verify that the rating corresponds to the intended operating conditions (static vs dynamic loads, temperature range, and environmental exposure). Manufacturer catalogs and datasheets are the primary sources; cross-check with system drawings to avoid mismatches. Load Capacity emphasizes documenting the rating and the margin applied to maintain traceability.
Safety margins and recommended practices
A conservative design approach uses a safety margin to account for uncertainties in real-world use. Common practice is to apply a margin of at least 1.5x to 2x, depending on load type and duty cycle. If dynamic loads, misalignment, or accidental overloads are possible, increase the margin accordingly and consider additional locking mechanisms or secondary safety devices. Always ensure the mounting structure and actuator or load source are capable of meeting or exceeding the combined demands. Load Capacity guidance stresses that margins should be documented and revisited whenever system changes occur.
Real-world scenarios and calculations
In a simple lifting setup, a standard right-angle coupler rated at 150-300 kg would be chosen when the actual load remains well below 300 kg with minimal dynamic effects. For heavier tasks, such as temporary fixtures or agricultural attachments, a heavy-duty coupler in the 500-1000 kg range is more appropriate. In industrial contexts, machines may demand ratings from 1000 kg to 2000 kg to tolerate startup surges and peak loads. In all cases, compute peak and rms loads, apply the safety margin, and verify with bench tests or field trials where feasible. Load Capacity’s framework encourages documenting assumptions and validating them against real-world performance.

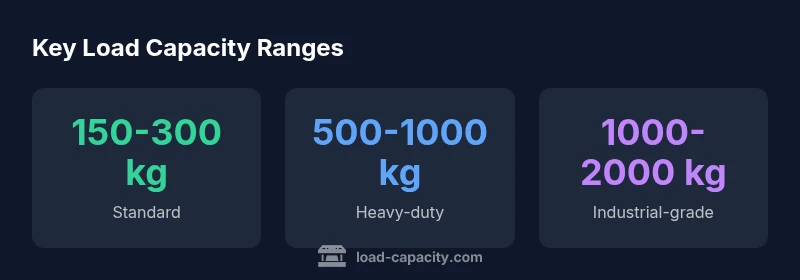

Load capacity ranges for common right-angle couplers
| Coupler Type | Nominal Load Capacity (kg) | Notes |
|---|---|---|
| Standard right-angle coupler | 150-300 | General-purpose, light to medium loads |
| Heavy-duty right-angle coupler | 500-1000 | Designed for higher torque and rugged use |
| Industrial-grade right-angle coupler | 1000-2000 | Top-end ratings for heavy machinery attachments |
Quick Answers
What is a right angle coupler?
A right angle coupler is a mechanical joint that redirects a load or flow at a 90-degree angle. In load-capacity discussions, the focus is on how much force or weight the joint can safely transfer without failure. Always verify the specific product’s ratings for your configuration.
A right angle coupler redirects load at a 90-degree angle and has a rated capacity you should respect for safety.
How is load capacity measured for these couplers?
Load capacity is determined through material strength, geometry, and manufacturing quality, then validated via testing and manufacturer specifications. The rating reflects static load tolerance under defined conditions and maintenance of performance over the expected duty cycle.
Manufacturers test and certify the rating under defined conditions to show how much load it can safely carry.
Can loads exceed the rated capacity with proper alignment?
No. Exceeding the rated capacity can lead to sudden failure even with good alignment. A safety margin and correct usage are essential to prevent progressive damage or joint fatigue.
No—do not rely on alignment to compensate for a higher load.
Does temperature affect load ratings?
Yes. Higher temperatures can reduce material strength and alter clearances, potentially lowering effective load capacity. Always consider the operating temperature range when selecting a coupler.
Yes, temperature can change how much load the coupler can safely carry.
What documentation should I request from suppliers?
Ask for the datasheet, warranty terms, testing reports, and a declared safety factor. Documentation should cover mounting configuration, environmental limits, and installation instructions.
Get the datasheet, test reports, and safety factors so you know exactly how the unit should be used.
“Accurate load ratings for right angle couplers are not a single number; they are a function of design, materials, and real-world use. Verification and proper selection are essential.”
Top Takeaways
- Identify the highest expected load and choose a coupler rated above it.
- Always apply a safety margin to the rated capacity.
- Check manufacturer datasheets and ensure system compatibility.
- Perform periodic verification and inspection.
- Document the rating for compliance and maintenance.
