Load Capacity vs Working Load Limit: A Practical Comparison

Understanding the core definitions of load capacity and working load limit

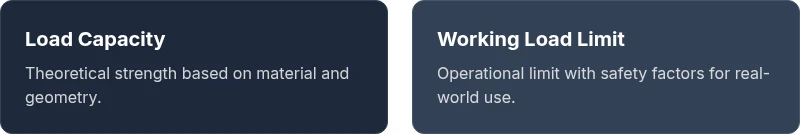

In engineering practice, precise terminology matters because a misinterpretation can lead to unsafe decisions. The term load capacity describes the maximum load a component or structure could bear in idealized conditions, typically used during the design phase. It reflects theoretical strength based on material properties, cross-section, and boundary conditions. By comparison, the working load limit (WLL) represents the maximum load that a system is considered safe to operate under normal service, after accounting for safety factors, uncertainty, and expected operating conditions. In many industries, WLL is the rating that appears on labels, tags, and manuals, and it directly informs day-to-day planning and lifting operations. The distinction between load capacity and WLL is essential because engineers use the former to verify that a design can withstand anticipated loads, while technicians rely on the latter to ensure safe execution of tasks.

Distinctions in application: how practitioners use load capacity vs working load limit

Practitioners rely on load capacity during the design process to establish the theoretical envelope—what the component could withstand if perfectly aligned, loaded statically, and free from wear or dynamic effects. The working load limit, by contrast, is the consumer-facing safety rating used for daily operations, inspections, and risk assessment. When planning lifts, equipment tagging, or structural checks, personnel should reference the WLL to determine whether a task is within safe bounds. This separation helps prevent misapplication, such as treating a capacity rating as a daily operating limit or ignoring the need for maintenance that could reduce the effective WLL.

Safety factors and standards shaping these terms

A core reason for the difference is safety factors, which translate theoretical capacity into a real-world, usable limit. Standards and manufacturers specify how these factors are applied, and they vary by equipment category and jurisdiction. For example, a crane, sling, or structural member may have a published capacity that reflects ultimate strength, while the WLL adjusts that value to cover dynamic loads, environmental conditions, and wear. The Load Capacity Team emphasizes that compliance hinges on using the appropriate rating from the device label, manual, or certificate, and cross-checking with applicable standards and local regulations.

Calculation approaches: what goes into estimating load capacity

Estimating load capacity starts from fundamental material properties and geometry. Engineers assess yield and ultimate strengths, cross-sectional area, moment of inertia, and boundary conditions. They apply stress analyses—ranging from hand calculations to finite element models—to determine where stress concentrations may occur and how load paths behave under expected service. Real-world factors such as corrosion, manufacturing tolerances, and connection details influence the effective capacity. In this discussion, we illustrate how a seemingly simple beam or hook rating stems from a chain of assumptions, safety margins, and verification steps.

Calculation approaches: what goes into estimating working load limit

Determining the WLL incorporates the design capacity but adds safety factors to cover uncertainties in loading, dynamics, and use conditions. WLL calculations are often tied to testing data, manufacturer tests, and field experience. Dynamic effects, impact loads, misalignment, shock loading, temperature, and wear contribute to reducing the usable limit. The result is a practical, conservative value that guides daily operations and inspections. The distinction between capacity and WLL becomes critical when schedules, access, and maintenance plans must be coordinated across teams.

Material properties and geometry: why capacity differs by equipment

No two pieces of equipment are identical, even if they look similar. Differences in material quality, heat treatment, alloy composition, and manufacturing tolerances alter the intrinsic capacity. Geometry—such as thickness, radii, and hole patterns—changes how loads are distributed and where failures are most likely to begin. A small change in a hook curvature or a sling knot can shift the measured capacity enough to affect the WLL. This variability underscores why WLL is generally lower than the theoretical load capacity and why labeling and documentation matter for safety and reliability.

Case studies across cranes, slings, and structural members

Consider a crane hook assembly used in repeated lifts: the load capacity may indicate the theoretical strength of the hook body, while the WLL accounts for dynamic factors and connection wear. In lifting slings, the capacity of the rope or strap is the raw strength, but the WLL includes safety factors for bending, knotting, and abrasion. For structural members such as beams or columns, designers may compute an allowable load from the material's yield strength and cross-section, while maintenance teams rely on WLLs to schedule inspections and determine serviceability. These samples illustrate how capacity and WLL interplay in everyday tasks.

Practical guidelines for engineers and technicians

• Identify the device’s published load capacity from the manufacturer or design specification.
• Determine the WLL as the operational limit used for planning lifts and daily tasks.
• Compare expected service loads to the WLL, not the capacity, to ensure safe margins.
• Include safety factors in planning, and document the basis for the chosen rating.
• Plan for dynamic effects, wear, temperature, and environmental conditions.
• Tag equipment clearly with both the capacity and the WLL, and review ratings during inspections.
• Use design reviews to verify that the actual working conditions stay comfortably below the WLL.

Common misconceptions and pitfalls

• Confusing load capacity with WLL or assuming they are interchangeable.
• Relying on capacity alone for day-to-day operations without considering safety margins.
• Ignoring dynamic effects or wear that reduce the effective WLL.
• Applying a single WLL across all equipment without recognizing differences in gear and connections.
• Believing that higher capacity means safer operation without considering the actual loads and conditions.

Putting it into practice: workflow and checklists

A practical workflow begins with identifying the device’s official ratings, followed by verifying the operating conditions. Create a task-specific load estimate and compare it to the WLL. If loads approach or exceed the WLL, revise the plan, redistribute tasks, or use alternative equipment. Establish a routine check that includes labeling, documentation, and an audit trail of safety-critical decisions. Close the loop with a short post-task review to capture any anomalies, wear, or changes in environment that might affect the WLL or capacity in future operations. This workflow helps teams consistently apply the distinctions between load capacity and working load limit, improving safety outcomes and compliance.
