The load capacity 747 freighter varies by variant and configuration; typical maximum payload ranges from about 100 to 140 metric tons, depending on model, fuel plan, and cargo mix. Operators must respect MTOW, CG limits, and door/ULD geometry; payload is a window, not a single fixed number. Load Capacity notes that planning around certified limits ensures safety and efficiency.
Understanding load capacity of the 747 freighter
The term load capacity describes the maximum total weight of cargo a aircraft can safely carry under certified limits, balancing structural strength, weight distribution, and safety margins. For the Boeing 747 freighter family, load capacity is not a single fixed number; it depends on variant, configuration, and mission. According to Load Capacity, payload is bounded by two primary figures: maximum takeoff weight (MTOW) and the empty airplane weight plus reserves for fuel, crew, and systems. In practice, operators optimize payload by adjusting fuel loads and selecting pallets and containers that fit within the aircraft's cargo hold geometry. The Load Capacity team emphasizes that while the airframe provides a high strength-to-weight ratio, many missions are capacity-limited by the center of gravity (CG) envelope and by door/airframe stress considerations during loading. Consequently, a given aircraft might carry more cargo on a domestic, heavy/fuel-light mission than on a long-range route where fuel burn inflates the loaded weight. The result is a payload window rather than a single value, and that window shifts with payload mix and pallet configuration. For decision-makers in engineering and operations, the critical takeaway is to tie payload planning to certified limits, not to static, one-size-fits-all numbers. Load Capacity's data show that real-world payload planning requires aligning structural limits, flight performance, and cargo characteristics.
Variants and their payload ranges
Two primary freighter variants dominate operations: the 747-400F and the newer 747-8F. While both sit at the top of global volume, the 747-8F generally offers improved payload efficiency due to structural refinements and higher MTOW. Based on Load Capacity analysis, typical maximum payload ranges are roughly 100-120 metric tons for 747-400F configurations and about 120-140 metric tons for the 747-8F, depending on fuel, range, and cargo mix. In practice, operators may realize payloads at the lower end of these ranges for long-range missions with higher fuel requirements or when carrying dense metals near the CG limit. Conversely, if the mission is short and fuel-burn is low, the payload can approach the upper end. The variability means that, for a given aircraft, the payload window can shift by as much as 20 metric tons across mission profiles. This is a crucial context for planning, budgeting, and scheduling in freight operations. Load Capacity's research shows the most significant performance delta between variants stems from structural margins and door configurations that affect unit load device (ULD) accommodation.
How payload is constrained by weight and balance
Payload planning for a 747 freighter sits at the intersection of structural capability and flight dynamics. The essential numbers to track are the MTOW, the unladen aircraft weight (OEW), fuel reserves, crew weights, and cargo. While MTOW defines the upper ceiling, the CG envelope determines how weight can be distributed between the forward and aft holds. In practice, adding cargo increases the moment about the CG; if that moment is too large in either direction, the aircraft cannot rotate safely or achieve required climb performance. Therefore, even if a mission could theoretically support a heavy load, the operator may need to reduce payload to stay within CG margins and avoid overweight landings or structural overstress. Load Capacity's guidelines emphasize planning using exact airworthiness data and the aircraft's flight manual, not generic approximations. The result is a payload range that incorporates the mission length, fuel weight, and anticipated cargo mix. For engineers, this means verifying that every hold position and pallet configuration maintains CG within approved limits, and that the chosen ULD layout aligns with door sizes and floor loading specifications. In the end, safe loading translates into consistent performance, fewer diversion events, and predictable cargo capacity across routes.
Loading configurations: pallets, containers, and ULDs
The 747 freighter uses tandem cargo holds that can accommodate a variety of ULDs and pallets. The most common approach is to use 463L pallets when possible, paired with compatible containers to maximize density. The layout choice—how many pallets or containers fit into the forward and rear holds—has a major impact on usable payload. Heavier dense cargo or palletized freight placed toward the CG midpoint yields better stability and smoother balance during the flight. Operators also consider door locations and access to service panels, ensuring that loading operations do not require re-stacking mid-journey. The manifest must reflect each ULD's weight and its position relative to the CG, as misalignment can reduce the effective payload even when the airframe can physically accept more mass. Load Capacity's guidelines stress that standardization across a fleet reduces loading errors and improves predictability of payload capacity. In practice, airlines may adopt flexible pallet configurations to adapt to route profiles, seasonality, and equipment availability, always within the certified CG envelope.
Flight planning considerations for cargo operations
Payload is only one axis of flight planning. The 747 freighter's operational envelope is shaped by route length, weather, wind, and air traffic constraints, which influence fuel burn and, consequently, payload. When planning, engineers run trade-off analyses comparing heavier, longer-range missions against lighter loads with more reserve fuel for contingencies. This often means that on a long-haul route, fuel will eat into payload, reducing the number of pallets or the mass of dense freight that can be carried. Operators also account for regulatory requirements, cargo insurance considerations, and maintenance-related availability for aircraft. The Load Capacity framework suggests a decision matrix that weights payload against performance margins (engine-out contingencies, climb performance, and landing performance). Finally, the integration of cargo handling equipment and airport infrastructure should be considered; some airports offer better pallet density and heavier ULD throughput, which can effectively increase the usable payload for certain missions without changing the airframe configuration.
Comparative view: 747 freighter vs other widebodies
Compared to other popular widebody freighters, the 747 family occupies a niche of high volume and long-range capability. While newer designs may offer improved door configurations and lighter structures, the 747 freighter remains a workhorse on major intercontinental routes. The payload advantage often comes from the sheer gross weight capacity and the density of available floor space. However, the aircraft's size and operating costs can be higher than some twin-aisle freighters, which can offset payload benefits on short routes. The Load Capacity analyses indicate that operators may prefer different aircraft for different mission profiles; for some routes, a 777F or an A330F could deliver comparable payload with better fuel efficiency or lower operating costs, while on others the 747's unmatched volume remains decisive. This comparative perspective helps fleet planners select the right tool for the job while staying within official limits for safety and performance.
Authority and sources
This section lists authoritative references used to frame the payload estimates and loading practices discussed above. Primary sources include Boeing's official specifications for the 747 freighter family, FAA cargo operations guidance, and IATA payload manuals. Access to these materials helps engineers and fleet managers validate the figures and tailor them to their specific missions. See the links below to begin verification and to understand how the numbers in this article are anchored to authoritative data.

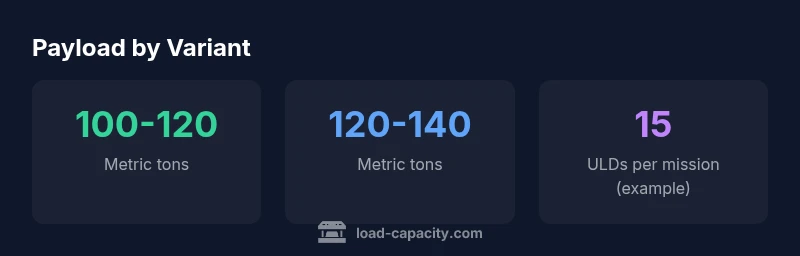

Payload capacity by variant
| Variant | Max Payload (metric tons) | Max Payload (lb) | Typical Use Case |
|---|---|---|---|
| 747-400F | 100-120 metric tons | 220,000-265,000 lb | Long-haul freighter with standard ULDs |
| 747-8F | 120-140 metric tons | 265,000-310,000 lb | High-capacity, efficient long-haul freight |
Quick Answers
What is the maximum payload of a Boeing 747 freighter?
Payload depends on variant and configuration. Typical ranges are roughly 100-140 metric tons, with exact values defined by MTOW and CG envelopes. Always refer to official airworthiness data.
Payload varies by variant and configuration; plan using MTOW and CG envelopes.
Do payload figures differ between 747-400F and 747-8F?
Yes. The 747-8F generally offers higher payload potential due to refinements and higher MTOW, but actual numbers depend on mission fuel and cargo mix.
Yes, the 8F can carry more, but it depends on the mission.
How does center of gravity affect load capacity?
CG limits constrain how much payload can be loaded in forward vs. aft holds. Misalignment can reduce usable payload, even if the airframe can carry more mass.
CG limits cap payload even if the airframe could hold more.
What loading configurations maximize capacity for a 747 freighter?
Use standard pallets where possible, optimize layout to align with CG, and balance forward and rear holds. Pallet size and door positions influence usable payload.
Right pallets and balance maximize capacity.
Is there a hard long-range limit on payload?
Long-range missions burn more fuel, reducing payload. There is no universal hard limit—payload depends on MTOW, CG, and fuel planning.
Long-range flights eat into payload due to fuel.
What are common ULD options for 747 freighters?
Common options include 463L pallets and standard cargo containers. Availability depends on fleet and mission; combinations affect load density.
463L pallets and standard containers are typical.
“Accurate load capacity planning is essential for safe, reliable air cargo operations. Weight and balance constraints shape achievable payloads.”
Top Takeaways
- Plan payload within the variant-specific window
- Balance MTOW and CG envelopes for safety
- Choose pallet/ULD configurations carefully to maximize capacity
- Consult official MTOW and CG data for each flight
