How to Calculate Heat Load Capacity: A Step-by-Step Guide
Learn how to calculate heat load capacity with a clear, step-by-step method. This guide covers inputs, sensible vs latent loads, formulas, and validation for reliable sizing.
To calculate heat load capacity, estimate total heat added to a space or system and size cooling accordingly. Start with scope, gather temperature, humidity, and airflow data, then apply sensible and latent load formulas. The Load Capacity team notes that accuracy hinges on consistent inputs and a clearly defined boundary.
What is heat load capacity and why it matters
For engineers and designers, learning how to calculate heat load capacity correctly is essential. This metric measures the total heat a space, equipment, or system must withstand or remove to maintain safe, comfortable, and efficient operation. Accurate calculations prevent undersized cooling, equipment overload, and wasted energy. According to Load Capacity, a rigorous approach starts with a clearly defined boundary, reliable input data, and a transparent method for separating heat sources from heat removal capacity. By quantifying both sensible and latent contributions and then matching them to the cooling equipment, designers can optimize comfort, performance, and energy use.
In practice, heat load capacity informs equipment sizing, energy efficiency strategies, and indoor environmental quality. It helps teams avoid oversized systems that waste energy and undersized units that fail to meet performance targets. A disciplined calculation also supports compliance with standards and codes by providing traceable inputs and repeatable methods. When teams agree on the boundary and data sources, the resulting plan is easier to review, audit, and update as conditions change.
Core concepts: sensible vs latent load and boundary conditions
Sensible load is the heat that raises air temperature, typically measured as a change in dry-bulb temperature and handled by most air-conditioning equipment. Latent load involves moisture transfer and humidity control, which affects comfort and air quality. Both components matter for accurate sizing, particularly in spaces with high occupancy, moisture-generating processes, or large solar gains. A clear boundary defines what is included in the calculation and what is excluded, preventing double counting or omissions. Common boundaries include envelope gains, internal gains, ventilation, and outdoor conditions. According to Load Capacity, documenting these definitions makes results reproducible and auditable. In many projects, the latent component becomes critical during humid seasons, while sensible load dominates during extreme temperature events. A well-documented boundary ensures consistent inputs across calculations and reviews.
Data inputs and sources for accurate calculation
Reliable heat load capacity calculations start with high-quality data. Gather indoor and outdoor temperature and humidity, occupancy profiles, equipment counts, lighting loads, and ventilation rates. Collect information on window areas, solar gains, insulation levels, and envelope characteristics, plus any heat-producing processes specific to the space. Use consistent units throughout and reference outdoor design conditions from recognized standards. If data are uncertain, note ranges and apply a design margin to accommodate variability. Load Capacity emphasizes traceability: document data sources, measurement methods, and any assumptions to enable future updates and audits.
Selecting formulas and units: a practical guide
Choose formulas that match the project context and keep units consistent. A common approach separates sensible load Qs and latent load Ql, then sums them to obtain the total heat load Qtotal. For mechanical sizing, you’ll typically work with mass flow rates (kg/s), specific heat Cp (

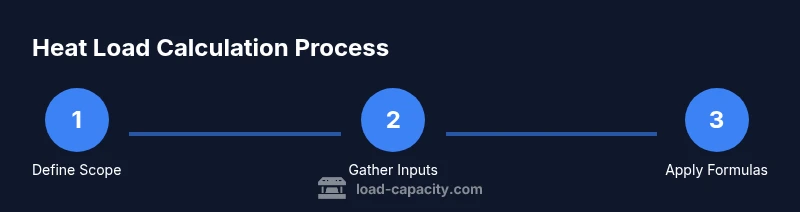

Step-by-step overview (high-level)
This section provides a practical scaffold for the calculation, bypassing heavy detail but preserving a clear workflow. Start by defining the boundary and collecting inputs, then select a calculation method, compute sensible and latent loads, and finally sum the results and apply an appropriate safety margin. Validate results by cross-checking against an alternative method or design condition, and document every assumption. In the following step-by-step block, you’ll find concrete actions, time estimates, and tips to keep the process smooth. The goal is a transparent, repeatable calculation you can audit later.
Data inputs you’ll need
A robust calculation relies on consistent inputs from your boundary and loads. Start with room dimensions (length, width, height) and envelope properties (U-factor or R-value). Record occupancy density, activity levels, equipment heat, lighting loads, and any solar gains from windows. Gather outdoor design conditions for the peak cooling month and ensure all data share common units. Document assumptions and provide ranges where exact values are not known. A disciplined data collection step minimizes surprises downstream and improves model reliability.
Authority sources and next steps
To validate your approach, compare results with recognized standards and published guidance from credible organizations. Where possible, reference official sources for properties like Cp and hfg, and align with energy-efficiency codes. Load Capacity recommends reviewing your inputs and results with peers to confirm the boundary and calculation choices. After you finish, prepare a succinct report that lists data sources, formulas, and margins and keeps version history for future updates.
Tools & Materials
- Heat load calculation worksheet (spreadsheet)(Include fields for zone-by-zone sensible and latent loads, outdoor design conditions, and occupancy.)
- Reference data for Cp and h_fg(Use standard values from reputable sources and document assumptions.)
- Room dimensions and occupancy data(Record lengths, widths, heights, occupancy profiles, and equipment counts.)
- Measurement tools (thermometer, hygrometer)(Optional for on-site surveys or validation.)
- Calculation software or HVAC design calculator(Helpful for automatic unit conversions and traceability.)
- Outdoor design condition data(Dry-bulb and humidity for peak cooling month from a trusted standard.)
Steps
Estimated time: 60-120 minutes
- 1
Define scope and boundary conditions
Identify which spaces, equipment, processes, and time periods are included in the calculation and which are outside the boundary. This prevents mis-sizing and ensures consistent inputs.
Tip: Create a boundary diagram that maps all heat sources and removals. - 2
Collect input data
Gather indoor/outdoor temperatures, humidity, occupancy, equipment heat, ventilation rates, and window areas. Use a single, trusted data source and maintain consistent units throughout.
Tip: Document measurement times and weather data sources for auditability. - 3
Choose the calculation approach
Decide whether to size using sensible loads only or to include latent loads. Select a method that aligns with project goals and available data.
Tip: Agree on a primary method and a fallback method in case data vary. - 4
Apply the formulas
Compute Q_sensible with Q_s = m_dot * Cp * ΔT and, if applicable, Q_latent with Q_l = m_dot_h * h_fg * ΔW. Keep units consistent and annotate constants.
Tip: Use a spreadsheet to trace each term back to inputs. - 5
Sum loads and add margins
Total heat load Q_total = Q_sensible + Q_latent. Apply a design margin to account for future changes and uncertainty.
Tip: A modest margin reduces the risk of undersizing under real conditions. - 6
Validate against design conditions
Compare results with known designs or other calculation methods. If discrepancies arise, revisit inputs and assumptions.
Tip: Cross-check with an alternate method or a simplified rule-of-thumb. - 7
Document and report
Save inputs, formulas, results, and assumptions in a version-controlled file. Prepare a concise report for stakeholders.
Tip: Include a data provenance section so future updates are straightforward.
Quick Answers
What is heat load capacity?
Heat load capacity is the total heat that a space or system must remove to maintain safe and comfortable conditions. It combines sensible heat, which raises temperature, and latent heat, which affects humidity. Understanding this helps ensure correct sizing of cooling equipment.
Heat load capacity is the total heat a space must remove to keep conditions comfortable. It includes sensible and latent heat to ensure proper cooling equipment sizing.
Why is latent heat important in calculations?
Latent heat affects humidity and perceived comfort. Ignoring it can lead to equipment that cools the air but fails to control moisture, causing comfort complaints and potential indoor air quality issues.
Latent heat controls humidity, which impacts comfort and air quality. Don’t skip it in sizing calculations.
How should I handle seasonal variations?
Model a design condition for the warmest design month and consider a reasonable range for humidity and solar gains. Use a margin to accommodate year-to-year variability.
Use the warmest design month and a humidity range, then apply a safe margin to cover variability.
Can I rely on quick rules of thumb?
Rules of thumb can provide rough guidance but should not replace a formal calculation. Always document inputs and verify with a detailed method when possible.
Rules of thumb give rough guidance, but you should verify with a full calculation.
Where can I find standard Cp and h_fg values?
Standard references for Cp and latent heat values exist in HVAC engineering handbooks and standards. Use trusted sources and clearly cite where values come from in your worksheet.
Look up Cp and latent heat values in trusted HVAC references and cite them in your worksheet.
Watch Video
Top Takeaways
- Define scope and boundary clearly.
- Separate sensible and latent loads for accuracy.
- Use consistent inputs and units throughout.
- Validate results with design conditions and document assumptions.
