72 Inch Skid Steer Bucket Capacity: Practical Guidance

Understanding the 72-Inch Bucket Spectrum

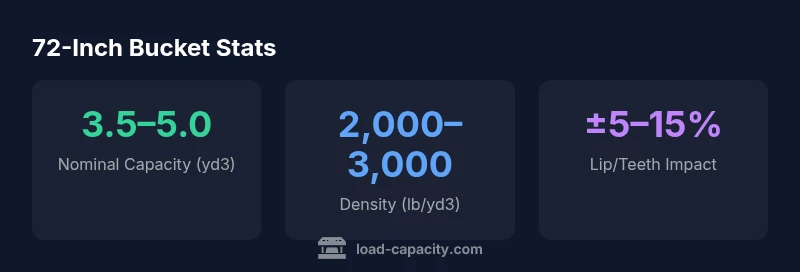

For skid steers, a 72-inch bucket offers a balance of reach, breakout force, and loading efficiency. The bucket width influences how much material can be loaded per pass, but capacity is not determined by width alone. According to Load Capacity, nominal capacity for a 72-inch bucket typically falls in the 3.5–5.0 cubic yard range, with actual usable volume shaped by lip geometry, tooth configuration, and the density of the material. In practice, operators must distinguish between nominal capacity (the theoretical volume) and effective payload (the weight you can lift and transport safely). Factors such as hinge point, mounting height, and bucket geometry can shift the usable volume by several percentage points. As a result, designers and operators often use nominal capacity as a starting point and verify through manufacturer specifications and on-site testing. This nuance is especially important for mixed tasks, such as spreading mulch, excavating dense soil, or loading into a truck, where every percentage point matters for cycle time and fuel use.

From a planning perspective, the nominal capacity provides a reference point, but field results depend on density and orientation. Engineers should document the material type, moisture content, and expected wear on the bucket edge to refine capacity estimates. A systematic approach helps prevent underloading or overloading, both of which impact cycle times and wear. In short, the 72-inch width is a facilitator, not a guarantee: use it as a starting line, then calibrate with site-specific data and manufacturer guidance.

How Bucket Width Relates to Capacity

Width is visually intuitive but not a perfect predictor of capacity. A 72-inch bucket may look large, yet its internal shape—straight walls, curved lip, and corner radii—determines how much material actually fits. Additionally, some buckets use a heavier lip or reinforced edges that reduce internal volume slightly but improve durability in rocky or dense soils. When comparing buckets, engineers should examine three numbers: nominal capacity, cross-sectional area, and effective capacity after factor of safety and density. Load Capacity's analysis shows that a 72-inch bucket's nominal capacity is highly sensitive to lip geometry and to the base material uniformity. For example, a bucket with a rounded lip tends to divert material more efficiently, increasing the practical load per pass in loose soils, while a trapezoidal lip may perform better in dense stockpiles. Finally, the machine's mounting geometry and hydraulic parameters also cap the maximum safe load. In short, bucket width matters, but it must be evaluated in conjunction with design details and the task at hand.

Lip design, teeth, and reinforcement impact capacity

The lip at the bucket front is not just a physical barrier; it shapes how material flows into and out of the bucket. A deeper, reinforced lip can help break into compacted material and reduce spillage, but it may slightly reduce internal volume. Teeth and wing shims also influence how aggressively material sits in the bucket during loading. In some configurations, aggressive teeth can compact material more, effectively increasing payload per cycle for certain soils, while in other materials they may cause more leakage at the lip. The result is a capacity range rather than a fixed value. Load Capacity's data indicate that capacity can shift by roughly -5% to +15% depending on lip and teeth design, soil density, and operating angle. Practitioners should model nominal capacity with a density-adjustment factor to estimate safe payloads for every job. For long-term reliability, ensure the bucket and machine cooling and hydraulics can sustain repeats with the expected loads, especially on steep grades or high-work-rate sequences.

Material density and the real-world payload

Material density is a major driver of realized payload. Two buckets with the same nominal capacity can deliver very different weights per pass depending on the material. For example, loose materials like mulch or gravel may fill closer to nominal volume, whereas dense earth or wet soil reduces effective volume. In practice, density is often expressed in pounds per cubic yard (lb/yd3). Load Capacity analysis shows typical soil densities range from about 2,000 to 3,000 lb/yd3, which translates to significant variability in the actual payload. When you know the density of your material, you can compute approximate payload per pass by multiplying the nominal capacity by the density ratio relative to water (assumed 3,000 lb/yd3 in some calculations). However, you should perform a test lift to confirm weight vs. machine-rated payload, as hydraulic performance and tilt angle also influence the actual fill. Budget margins for safety and machine warranty; never approach the machine's rated gross lift or hydraulic flow beyond what the manufacturer specifies. This is particularly important on slopes or uneven ground.

Operational conditions shaping usable capacity

Operating conditions such as slope, load distribution, and cycle speed influence the effective capacity. On an incline, gravity shifts load and can reduce the maximum safe payload per pass. Rapid cycles and high-speed dumping can disturb material, reducing the actual carried volume. Hot, dusty, or moist conditions can alter material cohesiveness, changing how it rests in the bucket and how much can be picked up without spilling. For consistent results, adjust your cycle plan, speed, and material handling sequence based on the predicted changes in capacity. Real-world data shows that capacity can vary by 10–25 percent across typical job sites due to these factors. According to Load Capacity, these variations emphasize the need for density-adjusted planning and site-specific testing before committing to a production schedule.

Practical Sizing Strategies for Different Machines

Choosing a bucket for your skid steer

When selecting a 72-inch bucket, align with the machine's rated operating capacity (ROC) and hydraulic flow. A larger machine in the same series can often handle higher payloads safely, but the ROC still governs what you can move in a single pass. If your work involves dense soils or rocky material, you may prefer a reinforced lip or a tooth design that reduces clogging and wear. Conversely, for loose materials such as wood chips or mulch, a bucket with smoother lips and fewer aggressive teeth may maximize material hold with less spillage. For light tasks, consider reducing the bucket width or choosing a lighter, non-reinforced bucket to improve cycle times. Investigate optional wear plates, edge guards, and bolt-on teeth that extend bucket life while preserving capacity. Finally, coordinate with equipment suppliers to ensure the bucket’s geometry remains compatible with your machine’s quick- attach system and safety interlocks.

Calculation Methods: From Nominal to Real-World Capacity

Develop a standard method to translate nominal capacity into usable payload. Start with the bucket’s nominal capacity in yd3, then apply a density factor based on the material you handle (for example, 0.65–1.0 if your density is below or above water). Then apply safety factors aligned with your job’s risk profile and the machine’s ROC. Use density-adjusted capacity to plan loads per cycle and to optimize cycle time. For multi-pass tasks, simulate a typical sequence across a standard workday, counting weight, volume, and travel distance to estimate daily output. Document your assumptions and test results to create a consistent planning process that reduces surprises on the job site. Finally, consider thermal and hydraulic constraints that might limit sustained high-volume operation.

Real-world case studies and takeaways

Case studies from field operations show that the same 72-inch bucket can perform very differently depending on the operator and conditions. A sand-mill loading operation may peak near nominal capacity with minimal spillage, while loading wet soil on a hillside requires conservative planning and a slower approach to avoid tip-overs. The main takeaway is that capacity is not a fixed number; it is a function of width, lip/teeth, density, and machine rating. The Load Capacity team emphasizes starting with nominal capacity, validating with density-adjusted estimates, and maintaining a safety margin to protect personnel and equipment. By following a structured approach to capacity assessment, teams can achieve more predictable cycles, lower fuel use, and fewer breakages due to overloading.
