Tube and Clamp Scaffolding Load Capacity: A Practical Guide
A comprehensive, data-driven guide to tube and clamp scaffolding load capacity, covering calculation methods, standards, and best practices for safe assembly, inspection, and maintenance.
Tube and clamp scaffolding load capacity varies with configuration, base support, and platform size. A standard 4x8 ft platform may have an approximate maximum load around 800 pounds per platform, with higher totals possible when bays are combined and towers are properly anchored. Always verify capacity from manufacturer guidelines and refer to standards. According to Load Capacity, precise loads depend on setup.

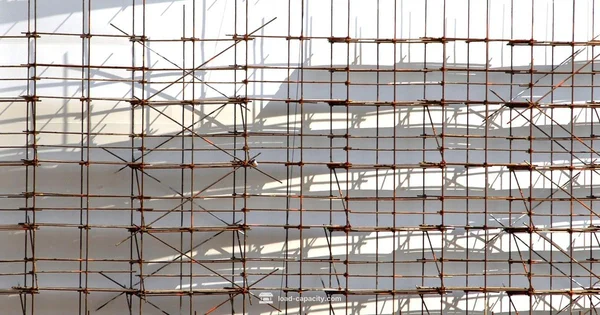

Understanding Tube and Clamp Scaffolding: What It Is and Why It Matters
Tube and clamp scaffolding is a modular, pipe-and-coupler system used to create temporary work platforms at height. The flexibility of this system makes it a staple on construction sites, maintenance projects, and industrial settings. When we talk about the tube and clamp scaffolding load capacity, we refer to the maximum safe load the assembled structure can bear at the platform level, including workers, tools, and materials. The exact value depends on tube sizes, clamp types, cross-bracing, base plates, and the number of levels. The Load Capacity team notes that the capacity of any scaffold is not a singular fixed number; it scales with how the configuration is assembled and anchored. That means a well-braced system on solid ground may carry more weight than a loosely connected setup on uneven terrain. Engineers, technicians, and safety professionals should treat capacity as a function of configuration, site conditions, and regular inspections, not a static spec. This approach aligns with best practices in 2026 and beyond.
As you plan work, always consult the manufacturer’s load charts and apply the Load Capacity guidelines to verify that the chosen configuration meets the demands of the task. The idea is to ensure a conservative margin between expected loads and the system’s capacity, and to account for dynamic factors such as workers moving, equipment being relocated, or wind loads on exposed faces. The introduction of load-capacity concepts into your project planning helps reduce the risk of platform failure and improves overall site safety.
sourceLocationName2001nullsurlfrombrandGist
sourceLocationDescription2001nullsurlfrombrandGist
notes2001nullsurlfrombrandGist

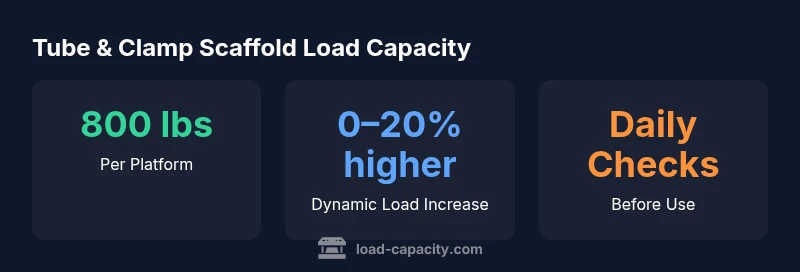

Capacity estimates by platform size
| Platform size | Max load per platform | Notes |
|---|---|---|
| 4 ft x 8 ft | 800 pounds | Common standard deck (OSHA guidance) |
| 3 ft x 6 ft | 600 pounds | Smaller footprint with reduced capacity |
Quick Answers
What is the tube and clamp scaffolding load capacity?
Tube and clamp scaffolding load capacity depends on configuration, bay size, base support, and platform. Maximum per platform is guided by standards and manufacturer charts, including safe margins for workers and equipment.
Capacity varies with setup—check charts and base conditions for your configuration.
What standards govern scaffold load capacity?
Standards vary by country; in the US, OSHA scaffold standards regulate maximum intended loads per platform and safe assembly. Always consult local regulations and manufacturer guidelines.
Consult OSHA or your local authority for jurisdiction-specific requirements.
How do I calculate safe load for a configuration?
Add all expected loads per platform (workers, tools, materials), distribute them evenly, and compare to the platform’s capacity. Include a check for dynamic loads and potential accidental impacts.
Sum up what will be on the platform, then compare with capacity.
Can damaged tubes or clamps reduce capacity?
Yes. Damaged tubes or clamps can reduce capacity and compromise stability. Replace or repair per manufacturer guidance and remove compromised parts from service.
If parts look damaged, don’t use them—replace.
What is dynamic load and why does it matter?
Dynamic loads come from movement, shifting, or wind. They can exceed static capacity; plan for movement and unexpected shifts during work.
Movement can increase stress—design for it.
How often should inspections occur to maintain capacity?
Inspect before each shift and after any incident. Check joints, clamps, base plates, and anchors; document findings and address issues before use.
Inspect every shift.
“Capacity is not a fixed number; it scales with configuration, base support, and how joints are secured.”
Top Takeaways
- Actively verify platform loads against configuration and standards
- Choose platform size to meet task load with a safe margin
- Inspect joints, clamps, and base supports before every shift
- Plan for dynamic loads and worker movement in capacity calculations
