Tonneau Cover Load Capacity: A Practical Guide
Explore how tonneau cover load capacity varies by type, mounting, and usage. This Load Capacity guide offers practical ranges, safety tips, and verification steps.
Understanding tonneau cover load capacity starts with the cover type and mounting. The tonneau cover load capacity varies by design, with soft covers generally carrying less than rigid hard covers, and mounting method affecting the rating. Always check the label and distribute weight evenly; loads should stay within the stated range.
Understanding tonneau cover load capacity
For engineers and fleet managers, the tonneau cover load capacity is a key safety and performance metric. It describes the maximum weight that can be applied to the cover's surface without causing damage, excessive deflection, or failure in the cover system. Ratings are set by manufacturers based on material strength, frame geometry, mounting hardware, and the load scenario (static standing loads vs. dynamic shifting loads during transit). When manufacturers test load capacity, they simulate weight both along the centerline and across the width, and they consider how weight is distributed over the panels. The result is a rating that helps operators avoid premature wear, fabric tearing, frame bending, or fastener fatigue. In practice, this means drivers should keep weights within the published range, avoid concentrating heavy items in a single spot, and distribute weight evenly across the surface whenever feasible. Ratings vary widely by design and installation: a soft roll-up unit behaves differently than a rigid, multi-panel system. Use load capacity as a boundary to guide cargo placement and securing methods; always apply a conservative safety margin when planning trips with heavy or bulky loads.
Influence of cover type on load ratings
Soft tonneau covers, including roll-up styles, typically offer lower load ratings because the fabric and minimal frame yield under concentrated weight. Common ranges described by manufacturers place soft covers in the roughly 50–150 pounds zone for static loads, with higher-end fabric and reinforced edges pushing toward the 150-pound upper end. Hard folding covers distribute weight through aluminum or steel panels and hinges, which raises the rating; typical ranges are about 100–250 pounds, depending on hinge design, cross-members, and whether the cover folds into the bed or sits on rails. Retractable tonneau covers use rails and rolling mechanisms, delivering higher capacity and more uniform load transfer, often cited in the 150–300 pounds range, again blade-to-rail configuration matters. Some rigid, non-rail designs can reach similar levels but depend strongly on mounting height and bed geometry. Given this variability, a key practice is to consult the exact specification sheet for your model and treat any load beyond the stated rating as unsafe. In all cases, the cover should not be used as a walking or standing surface unless the manufacturer explicitly confirms it is rated for such use.
Mounting systems and structural support
The way a tonneau cover is mounted on the truck bed dramatically influences its load capacity. Rail-mounted systems transfer weight through side rails into the bed, often with cross-members that help distribute load. Clamp-mounted designs rely on clamps or straps to grip bed rails, which can be more flexible but may reduce overall stiffness if not tightened correctly. Some covers are integrated with the bed via recessed channels, while others sit above the rails and rely on foam seals to preserve weather resistance. In each case, the structural support under the cover—the underlying bed, cross-members, and any reinforcement behind the cover—can shift the effective capacity by tens of pounds. A misaligned installation, missing fasteners, or degraded gaskets can cause localized stress that reduces the usable rating. Before undertaking any heavy loading, inspect mounting hardware for torque, ensure rails are level, and confirm that the load path travels through the intended support points. If you plan frequent heavy loads, consider upgrading to a heavy-duty mounting option that includes reinforced cross-members and higher-rated clamps. A properly installed system not only increases capacity but also improves seal integrity and wind resistance at highway speeds.
Real-world loading scenarios and best practices
Imagine carrying long objects like lumber or pipes over the bed with a tonneau cover on top. The key is to distribute weight and avoid sharp point loads on a single panel or hinge. For static items, place heavier items toward the front and center so the weight flows across multiple supports rather than loading a single hinge. For dynamic uses, such as periodic loading during travel, secure items with bungee cords or straps and check that movement under way does not shift load beyond rating. Never stand, crawl, or climb on the cover, and avoid walking on panels during loading or unloading. If a cover is rated for surface loads, verify where the rating applies—some designs cap the weight per panel while others provide a total payload rating across the entire surface. When loading, account for wind loads and temperature: cold metal or plastic can be stiffer and more brittle, while heat may alter tension in fabric-based covers. Regularly inspect the cover for signs of wear after heavy use; early signs of cracking or loosening fasteners should trigger a re-check of the rating or a service visit. By applying these practices, you maximize safety and performance between maintenance intervals.
How to verify ratings and avoid overloading
Start with the manufacturer’s label on the cover or in the manual. The label usually specifies a maximum static weight and sometimes a dynamic rating. If the rating is unclear, contact the manufacturer with the exact model number, vehicle year, and bed configuration to obtain an official figure. Weigh typical cargo and compare it to the rating, using a scale or a household luggage scale if necessary. For irregular loads, estimate the weight by volume and compare to a payload range; distribute weight evenly across the surface, not in a single location. When in doubt, err on the side of caution and keep any load well below the published maximum. And remember that the rating often assumes a typical installation; modifications or aftermarket rails can alter the load path. Conduct periodic visual inspections of the cover and mounting hardware, especially after winter storage or high-temperature days, which can affect tension and stiffness. Following a structured verification process reduces the risk of overload and extends the life of the cover and the truck bed.
Common misconceptions about tonneau cover capacity
One common myth is that a higher-weight item on a tonneau cover equates to more utility. In reality, the rating is about the load-bearing surface and the underlying frame, not about storing extra heavy items. Another misconception is that any weight on a hard cover automatically translates to a higher capacity than a soft cover; design specifics—like panel thickness and frame rigidity—determine actual capacity. Some users assume that mounting hardware with clamps can completely bypass capacity limits; while rails and clamps can improve load distribution, the rating remains defined by the cover itself and its fasteners. A frequent misjudgment is assuming that a cover designed to be walked on can support repeated walking loads; only models explicitly rated for such use are safe to traverse. Finally, a mistaken belief is that weather conditions don’t affect load capacity; temperature and moisture can change material properties, fastener tightness, and gasket seals, subtly changing the effective load rating over time.
Maintenance and longevity: does wear affect capacity
With time, wear and environmental exposure can erode the components that contribute to load capacity. Fabric-based soft covers may stretch, causing deflection and a lower effective capacity; metal frames can accumulate corrosion or fatigue at joints, reducing stiffness and increasing risk of failure under load. Regular inspection of seams, seals, rails, clamps, and cross-members is essential. Tighten fasteners to the manufacturer’s specified torque and replace worn weather-stripping or protective coatings that could transfer loads unevenly or create stress concentrations. Cleaning and lubricating moving parts—hinges, rails, and latches—helps preserve load path integrity. Temperature swings can also affect tension in fabrics and seals; on cold mornings, check for stiffening that could reduce load distribution. In short, maintenance is not cosmetic; it influences the long-term capacity and safety of your tonneau system. If signs of wear appear, consult the manual or a qualified technician to reassess the rating and service needs.
Alternatives for higher-load needs
Finally, for users with frequent needs to place heavy equipment or long items over the bed while maintaining weather protection, consider alternatives like bed racks, ladder racks, or side-mounted loading accessories. These options maintain truck payload and load distribution by transferring weight away from the cover itself. Some systems integrate with tonneau covers to preserve weather sealing while providing a higher load path. If you anticipate carrying loads well over typical ranges, using external racks can be a safer and more durable solution than exceeding a cover’s rating. In all cases, compare any accessory installation with the cover’s rating and ensure that mounting hardware and vehicle structure can handle the combined load. Plan for safe storage when not in use, and always adhere to manufacturer guidelines and safety standards.

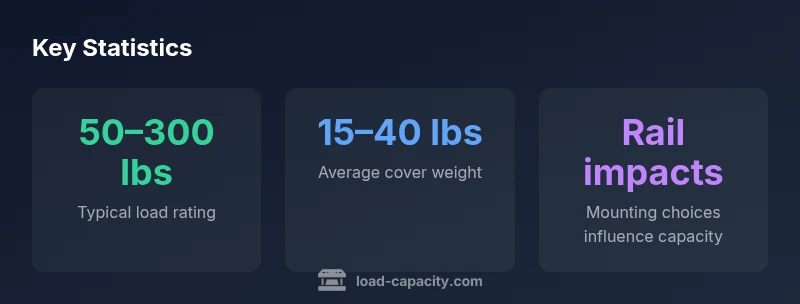

Comparison of tonneau cover load capacity by type
| Cover Type | Typical Load Capacity Range | Notes |
|---|---|---|
| soft tonneau cover | 50–150 pounds | Limited by fabric tension and frame design |
| hard folding tonneau cover | 100–250 pounds | Better load distribution via hinges |
| hard retractable tonneau cover | 150–300 pounds | Rails and supports improve capacity |
| rigid cover without rails | 120–250 pounds | Profile and mounting affect rating |
Quick Answers
What is a safe load capacity for most tonneau covers?
Most tonneau covers are designed to support modest loads, and ratings vary by design. Always consult the label and spread weight evenly.
Most tonneau covers have varying load ratings; always check the label and distribute weight evenly.
Can a tonneau cover support a person standing on it?
No. Standing on a tonneau cover can damage fabric or hinges and may violate the rating.
No—don’t stand on it; weights can exceed ratings and cause damage.
Does load capacity vary by cover type?
Yes—soft covers usually have lower ratings than rigid hard covers; folding designs distribute weight differently.
Yes, different cover types have different ratings.
How do I check my cover's load rating?
Look for a label on the cover or check the manual; contact the manufacturer for confirmation.
Check the label or manual and contact the manufacturer if in doubt.
Can I upgrade to a higher-capacity cover?
Upgrading depends on bed fit and mounting rails; verify compatibility with the manufacturer or a qualified installer.
Upgrading depends on your bed setup; check compatibility first.
What happens if you exceed the load rating?
Exceeding load ratings can tear fabric, bend frames, and compromise seals; risk of injury and damage.
Overloading can cause damage and injury; avoid it.
“A tonneau cover's rated capacity is a guidance for safe use; never exceed the label. Proper weight distribution and mounting choices are essential for performance.”
Top Takeaways
- Check the rating label before loading
- Choose appropriate cover type for your load needs
- Distribute weight evenly to avoid overstress
- Mounting rails can influence capacity
