Pop rivet load capacity: understanding strength in joints

What pop rivet load capacity means in practice

According to Load Capacity, pop rivet load capacity is not a single universal number; it is a system property that emerges from the rivet size, alloy, installation method, and the joint geometry. Designers use rivets to transfer shear loads and resist withdrawal, but the exact capacity depends on how the rivet bears against the sheet and how the sheet stack-up behaves under load. In thin-sheet assemblies, the bearing area around the rivet head and the alloy type influence how much load a rivet can safely carry before bearing failure or pull-through occurs. This block unpacks the key concepts engineers need to quantify and document when they specify rivets for load-critical joints. By understanding these factors, you can compare different rivet options, anticipate failure modes, and select a solution that balances strength, weight, and cost.

Key factors influencing rivet strength

Several interrelated factors determine pop rivet load capacity:

• Rivet diameter and length: Larger diameters generally provide higher bearing area and shear strength, but require larger holes and can reduce sheet stiffness.
• Material and alloy: Aluminum rivets (common 5056, 6061 types) offer good strength for light- to mid-weight joints; steel rivets provide higher shear capacity but require compatible hardware and hole sizes.
• Joint geometry: The number of sheets, their thickness, and how cleanly they are stacked affect load distribution and the likelihood of pull-through or bearing failure.
• Hole quality and setting: A properly de-burred, correctly sized hole and a well-set rivet reduce stress concentrations and improve overall joint efficiency.
• Loading type: Static, dynamic, and cyclic loads affect how rivets perform; fatigue performance and vibration resistance are essential considerations for portable equipment and automotive components.

Shear vs withdrawal capacity in riveted joints

Rivet load capacity is often governed by two failure modes: shear across the joint plane and withdrawal through the joint stack. Shear capacity controls how well the rivet can resist sliding forces that try to deform the joint laterally. Withdrawal capacity depends on the bearing of the rivet against the sheets and the frictional lock created by the rivet head and the compressed sheets. In many thin-sheet assemblies, withdrawal strength can dominate when the joint thickness is large relative to rivet diameter. Understanding the balance between these modes helps engineers select rivets and joint geometries that prevent premature pull-through or rivet failure, particularly under dynamic or fatigue loads.

Material choices and rivet diameter options

Material choice directly affects capacity. Aluminum rivets are common for lightweight, corrosion-resistant joints, while steel rivets offer higher shear strength for demanding environments. The rivet diameter sets the bearing area and shear path; a larger diameter typically increases capacity but requires larger holes and can alter the stiffness of the joint. When selecting rivet diameter, also consider sheet material compatibility, hole tolerances, and accessibility for installation. In some cases, using a longer rivet or a different alloy can yield meaningful gains in load-carrying capacity without a complete redesign.

Joint thickness, sheet material, and alignment

Joint thickness has a strong influence on load capacity. Thin sheets allow smaller rivets to perform well, but the bearing against multiple layers can cause early bearing failure. Conversely, thick sheets demand larger diameters or alternative fasteners to prevent pull-through. Material pairing matters too: hard sheets with soft rivets can lead to premature indentation, while matching hard rivets with compatible sheet hardness improves resistance to deformation. Accurate hole placement and alignment are essential; misaligned holes create eccentric loading that reduces effective bearing area and increases local stress concentrations, reducing overall joint capacity.

Installation quality and tolerances

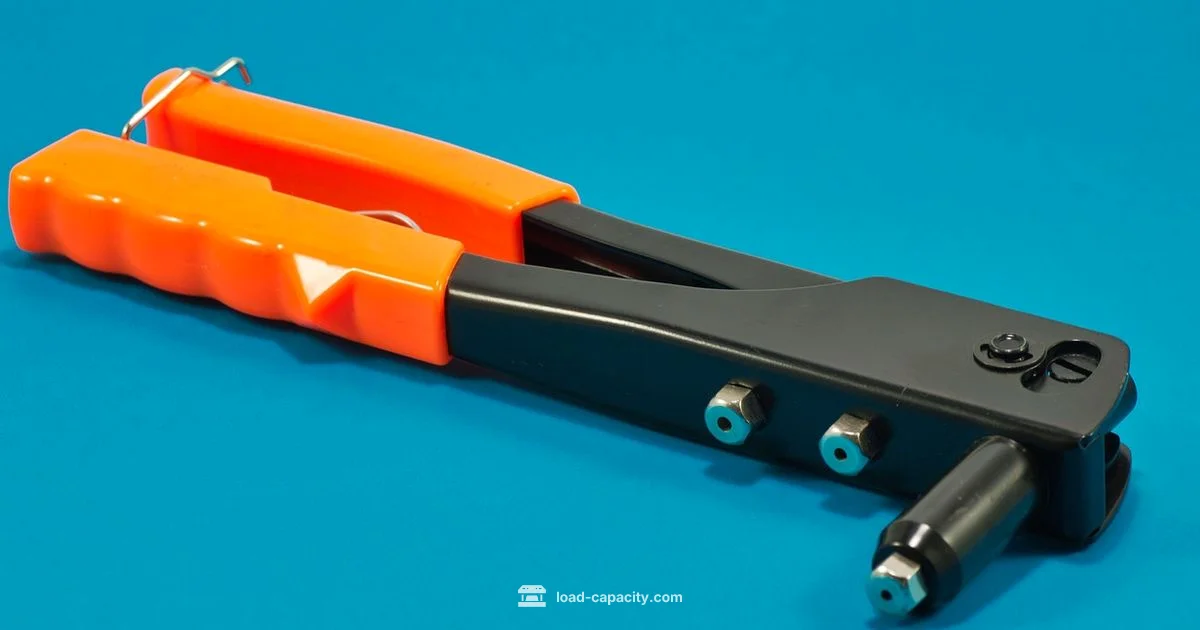

Installation quality is a major determinant of the realized load capacity. Clean, deburred holes ensure even distribution of bearing pressure around the rivet shank. Over- or under-setting rivets can introduce residual stresses, reducing life under static and cyclic loads. The setting tool must apply adequate, uniform clinching without crushing sheets or deforming rivet heads. Inconsistent installation across a production run leads to a spread of joint performances, complicating safety margins and QA tests. Always validate installation procedures and train technicians to achieve consistent results.

Failure modes and safety margins

Understanding potential failure modes helps establish realistic safety margins. Common modes include rivet pull-out through the holes, crushing or yielding of the rivet head under bearing pressure, and fatigue crack initiation at the sheet-rivet interface under cyclic loads. Fatigue life is influenced by the number of load cycles, peak load, and the presence of stress concentrations around the rivet hole. Designers should apply conservative safety factors and plan for inspection and maintenance to catch early signs of degradation before catastrophic failure occurs.

Design guidelines and practical tips

To improve pop rivet load capacity in practical designs:

• Choose rivet diameter and material based on expected loads and corrosion environment.
• Ensure hole quality and proper deburring to maximize bearing area and minimize stress risers.
• Align joints precisely and avoid multi-layer misalignment that concentrates load.
• Prefer solid rivets or structural blind rivets for high-load applications when weight and accessibility permit.
• Use manufacturer data charts as the baseline and apply a safety factor to cover variability in material properties and installation quality.

Testing, verification, and documentation

Where design loads are critical, perform testing to verify capacity. Pull tests, shear tests, and fatigue testing on actual assemblies provide empirical confirmation of claimed capacity. Document joint geometry, rivet type, hole sizes, setting methods, and test results to support maintenance and certification. For highly regulated or safety-critical applications, keep test records as part of the product lifecycle and update specifications when changes in materials or processes occur.
