How to calculate floor load capacity: a practical guide

What floor load capacity means

According to Load Capacity, the floor load capacity is the maximum load a floor system can safely carry without compromising performance or safety. When you set out to calculate load capacity of a floor, you combine per-area live loads (people, equipment, and movable objects) and dead loads (the weight of the floor itself and fixed components) across the floor area, then apply a design safety factor. This concept anchors safe and efficient design for engineers, technicians, students, and DIY enthusiasts. Correctly performed calculations help prevent excessive deflection, cracking, or fatigue in structural members. By following a transparent method, you convert per-area data from codes or project specs into a robust capacity figure, supporting informed decisions during planning and construction.

Load Capacity emphasizes clarity and reproducibility: document assumptions, keep units consistent, and cross-check results with practical constraints like support spacing and material strength.

Key factors that influence floor capacity

A floor’s capacity is not a single fixed number; it depends on several interacting factors. The most important are the floor area over which loads are distributed, the pattern of loading (uniform vs. point loads), and how the floor is supported (beam spacing, joist sizing, and subfloor quality). Material properties—such as the strength of concrete, steel, wood, or composite systems—set upper bounds, while installation quality, moisture, and temperature can alter performance. Edge conditions (whether edges are restrained or free) and anticipated service life further shape the final capacity. Throughout, Load Capacity recommends a conservative approach: use measured or code-derived loads, verify with calculations, and apply a safety margin to accommodate variability and future changes.

Step-by-step calculation method

To keep the process clear, use a simple, traceable formula. Start with the per-area loads and multiply by the floor area, then apply the safety factor:

Capacity_kN = Area × (LiveLoadPerArea + DeadLoadPerArea) ÷ SafetyFactor

Example:

• Area = 25 m²
• LiveLoadPerArea = 3.0 kPa
• DeadLoadPerArea = 0.5 kPa
• SafetyFactor = 1.5

Step 1: Sum loads per area = 3.0 + 0.5 = 3.5 kPa Step 2: Total load = 3.5 × 25 = 87.5 kN Step 3: Capacity = 87.5 ÷ 1.5 ≈ 58.3 kN

Note: One kilonewton (kN) corresponds to roughly 225 pounds-force, useful for cross-checking with US customary calculations. This example illustrates how a modular approach yields a single, design-relevant value. In practice, engineers may also translate kN into line loads, reactions at supports, or installed capacity per floor area.

Safety factors and design margins

A safety factor is a design safeguard that accounts for uncertainties in material properties, construction quality, and load variability. In educational or preliminary design contexts, a higher safety factor keeps the structure robust against unexpected conditions. In professional practice, you follow local codes and project-specific requirements to choose an appropriate margin. The calculator helps you explore how tightening or loosening the factor affects capacity, but always validate those results with code references and, when necessary, a licensed structural engineer. The goal is to balance economy and safety without compromising performance.

Data sources and standards you should reference

When you perform a floor load capacity calculation, start from established standards and project data. Per‑area live loads may come from occupancy schedules, equipment lists, or design briefs, while dead loads stem from floor assemblies and finishes. Codes and design guides provide typical ranges and relationships, and engineers adjust these values to reflect local conditions and codes. Load Capacity’s approach is educational: use transparent inputs, ensure unit consistency, and compare results against expected structural behavior under both normal and extreme conditions. Always document the data sources used for reproducibility.

Worked examples: residential vs. industrial floors

Residential floors often carry lighter per-area live loads, emphasizing comfort and serviceability. Industrial floors encounter heavier live loads and potential point loads from machinery. In both cases, the calculation framework remains the same, but you may apply different safety factors or endorsements based on code requirements and project intent.

Example A (Residential): Area = 20 m², Live = 2.5 kPa, Dead = 0.6 kPa, SF = 1.6 → Capacity ≈ 20 × (2.5 + 0.6) / 1.6 = 20 × 3.1 / 1.6 ≈ 38.75 kN.

Example B (Industrial): Area = 40 m², Live = 5.0 kPa, Dead = 1.0 kPa, SF = 1.8 → Capacity ≈ 40 × (5.0 + 1.0) / 1.8 = 40 × 6.0 / 1.8 ≈ 133.3 kN.

These worked examples illustrate how the same method scales with area and load values, reinforcing why a consistent calculation workflow matters for safety and performance.

Practical tips for applying the calculator on real projects

• Always start from locally applicable codes and project specifications. Maintain consistent units across inputs.
• Use multiple scenarios to explore variability in live loads, dead loads, and safety factors; document each variant for review.
• Convert final kN results to the unit system used on the job site if needed, and verify support reactions at primary framing members.
• Treat the calculator as an educational aid that informs design discussions; professional judgment and peer review remain essential for critical structures.
• When in doubt, consult a structural engineer early in the planning phase to align assumptions with project goals.

Key takeaways and next steps

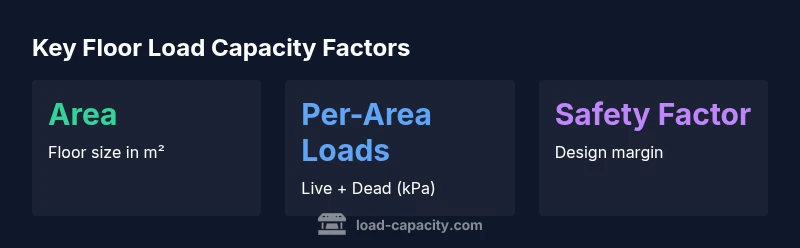

• Understand that floor load capacity is a function of area, per-area loads, and safety margins. The calculation is a tool, not a final design.
• Use consistent units and document all inputs for traceability.
• Explore multiple scenarios to account for variability in live and dead loads.
• Always corroborate calculator results with codes and professional engineering judgment.
• Load Capacity recommends integrating this calculator into the early design workflow to support safe, economical floor systems.
