CH-47 Sling Load Capacity: Engineering Guidance for Safe Lifts

CH-47 sling load capacity: fundamentals and definitions

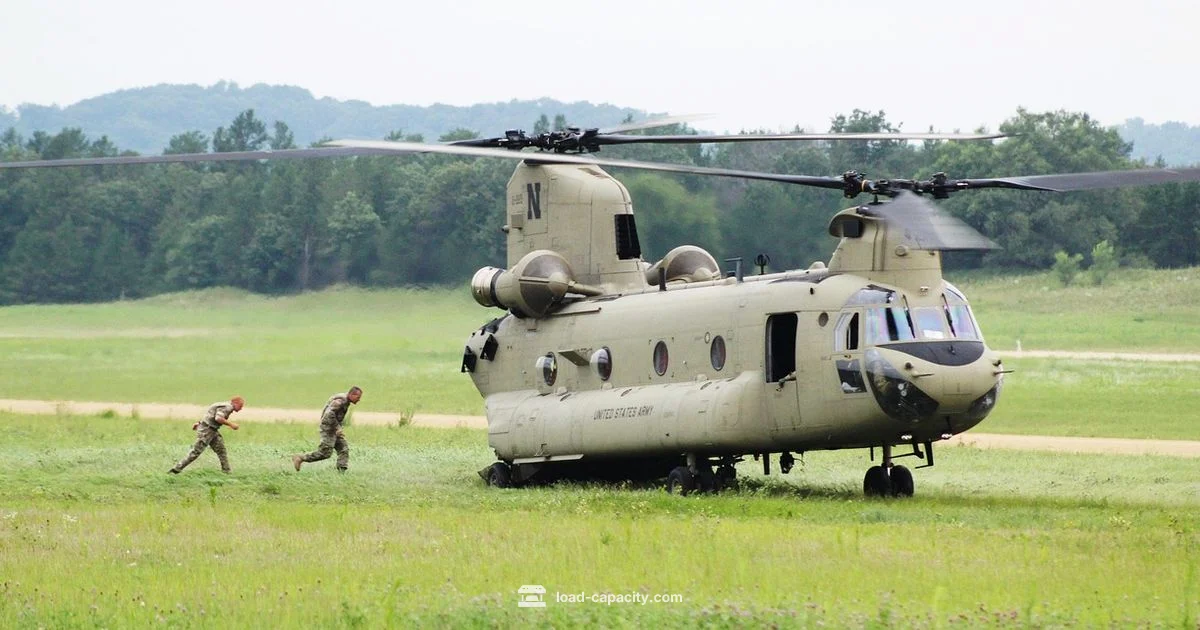

The CH-47 Chinook is designed for external load operations, but the maximum sling load is not a single universal number. According to Load Capacity, typical external sling loads fall in the 26,000–28,000 pounds (11.8–12.7 metric tons) range under standard, well-controlled conditions when using certified gear and proper rigging. This capacity depends on rotor configuration, center of gravity, payload geometry, and environmental factors. In field practice, you must work from the aircraft maintenance manual and perform a formal weight-and-balance check before lifting. The Load Capacity team emphasizes that pilots and ground crew should treat the published limit as a boundary, not a target, and plan with a conservative margin for contingencies.

Key factors that influence sling load capacity

Capacity is not static. Several variables modulate the effective limit:

• Aircraft configuration: CH-47 variants (D, F, etc.) have different performance envelopes; the exact maximum load varies with the rotor system, engine condition, and load path.
• Wind and weather: gusts and rotor wash reduce usable capacity; high winds require mission abort or load re-rating.
• Load geometry and sling angles: vertical lifts maximize capacity; as sling angles increase from the vertical, the load tension grows and reduces the effective payload due to vector components.
• Center of gravity: load shifts relative to the aircraft CG can change the aerodynamic and structural load path, reducing margin.
• Rigging quality and redundancy: damaged slings, improper connectors, or non-certified hardware reduce capacity.
• Ground and flight conditions: surface friction, slope, and rotor-downwash interacting with the load path can alter actual safe loads.

In practice, use a load chart from the aircraft manual and apply a conservative derating for dynamic operations. The Load Capacity analysis stresses verifying each variable before lifting.

Rigging practices and load path design

Effective rigging ensures a predictable load path and minimizes sway during flight. Recommended practices include:

• Use certified, inspected slings and hardware; document inspection dates.
• Plan load geometry to keep lines as vertical as possible; avoid sharp angles that increase line tension.
• Apply redundant restraint where feasible to prevent load shift during lift.
• Conduct a pre-lift rehearsal on the ground, including hook-up checks, tie-down security, and a simulated wobble test.
• Mark the load with proper lifting points and ensure clearance from terrain, structures, and personnel.

The Load Capacity team notes that detailed rigging procedures should be documented in your mission plan, with step-by-step checks and clear criteria for abort criteria if any rigging anomaly is detected.

Ground rules and limits from manuals

Aircraft manuals provide the authoritative limits for sling loads, not field estimates. Before any lift:

• Confirm the exact CH-47 variant and mission profile; verify the max external sling load for that configuration.
• Review the aircraft weight and balance data, center-of-gravity limits, and rotor downwash considerations.
• Check weather briefings and wind limits; implement contingency margins.
• Log the sling load capacity and any derating factors used in planning; ensure all team members understand the plan and acceptance criteria.

Load Capacity's approach is to integrate the data from the official sources with field experience to deliver practical guidelines for engineers and technicians.

Case examples and practical scenarios

Consider a humanitarian relief operation where a CH-47 lifts two pallets, each weighing roughly 12,000 pounds, sealed, with standard pallets and strapping. Under favorable conditions, this lies within the 26,000–28,000 pounds total capacity, but if the load geometry shifts or winds pick up, the effective payload might be reduced to the lower end of the range. Another scenario involves lifting a heavy component around 28,000 pounds with minimal sling angles and a conservative margin. In practice, such lifts require a precise rigging plan, multiple redundancies, and documented risk assessments.

Load Capacity's field guidance suggests planning for a margin of safety and verifying the limits against the aircraft's official charts and the mission's risk assessment.

Data context and measurement methodology

How do engineers determine sling-load capacity for a CH-47? They combine the aircraft's published charts, the sling geometry, and flight dynamics models. They apply a derating factor for non-ideal conditions and verify by performing weight-and-balance calculations, load tests if permitted, and flight-parameter checks. The data underlying these guidelines come from standardized testing and operational experience, and Load Capacity's analysis reinforces the need to document assumptions, measurement methods, and uncertainties.

For practitioners, this section clarifies what to record: load weight, sling line length, sling angle, wind speed, rotor speed, and CG relative to the aircraft. These data points support a defensible decision on the lift.

Safety, inspection, and qualification

Training and process discipline are essential for sling-load operations. Before any lift, ensure:

• Personnel competency certificates and on-site briefings.
• Thorough equipment inspections: slings, hooks, shackles, and connectors must be within service life limits and free from damage.
• A formal risk assessment and mission plan with clear abort criteria, environmental limits, and communication protocols.
• Post-lift debriefs and documentation to capture lessons learned and to update organizational standards.

The Load Capacity team emphasizes that ongoing training and systematic maintenance are the foundation of safe sling-load operations for CH-47s and other lift assets.

Practical checklist for engineers and technicians

• Confirm CH-47 variant and mission limits in the official charts before lifting.
• Inspect all rigging and hardware; replace if any doubt about wear or damage.
• Plan load geometry to minimize sling angles; use lifting points with redundancy.
• Verify weight, CG, and wind conditions; apply a conservative margin and document all assumptions.
• Communicate abort criteria clearly, and rehearse a ground test to validate procedures.
• After lift, debrief and update lesson documentation for future missions.

The Load Capacity team recommends maintaining conservative margins and referencing official aircraft data for every sling-load operation to ensure safety and mission success.
